BP3600 Pro
BP3600 Pro
3600Wh
Battery Pack
Compatible with PowerMax 6000 Pro
Scalable Capacity
3600Wh Smart Expansion Battery Pack BP3600 Pro is the expansion battery pack built for PowerMax 6000Pro. When you need longer runtime, keep the host and expand capacity instead—so home backup, outdoor power, and field operations stay supported with a larger energy reserve.
Expansion
Add 3600Wh Per Pack.
Scale up to 57,600Wh. 1 PowerMax 6000 Pro + 1 BP3600 Pro
Power demand changes by scenario: stable home backup, longer camping runtime, continuous field operation. BP3600 Pro lets you grow capacity with real loads instead of overbuying on day one. From single-pack expansion to multi-pack parallel setups, the capacity path is clear, calculable, and easier to plan.
7.2kWh 28.8kWh 57.6kWh
PowerMax 6000 Pro + 1 BP3600 Pro
Ideal for extending essential home loads, short outdoor trips, and first-time expansion.
Mobility
Power That Moves with You. BP3600 Pro is built for mobility. Side handles support lifting and short carries, while wheels reduce rolling resistance on flat ground. From storage to vehicle, garage to yard, or repositioning at an event site, less effort means high capacity becomes practical capacity.
Telescopic Handle, Easy to Pull
Carrying Handles
Wheel Design, Easy Mobility
Interfaces
Key Functions at a Glance. As an expansion pack for PowerMax 6000 Pro, BP3600 Pro keeps the interface logic simple: connect fast, control clearly, and read status immediately. The core actions are limited—power on/off, parallel connection, and status confirmation. That is why the key ports stay focused and easy to recognize, whether you are expanding for the first time or redeploying repeatedly.
Power Pack Connection ×2 LCD Main Power Button
Connection

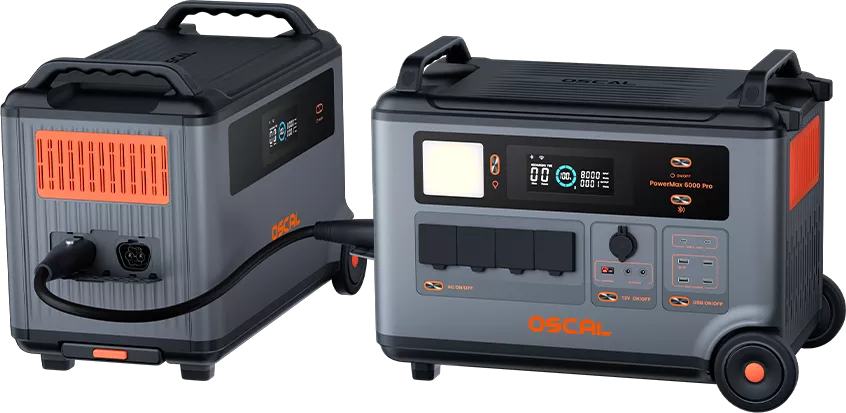

Simple Cable Connection. Expand in Minutes. BP3600 Pro connects to PowerMax 6000 Pro through a dedicated parallel cable, turning capacity expansion into a fast, practical action. No need to rebuild the whole system or learn a complex parallel workflow. Power off, connect the cable, power on and recognize—then the expanded supply path is ready.
Power Off First
Connect the
Parallel Cable
Power On and Expand
Battery
Long-Cycle LiFePO4. Built to Last. BP3600 Pro uses LiFePO4 cells and delivers 3600Wh nominal capacity per pack. An expansion battery is not only extra energy for one day—it is a reserve you expect to trust across many future uses. LiFePO4 chemistry is chosen for cycle life and operating stability, making it a stronger fit for home backup and repeated outdoor replenishment.
* ≥5000 Cycles, battery retains more than 70% of its capacity under standard testing.
5000+ Charge Cycles
10 Year Lifespan
5 Year Warranty

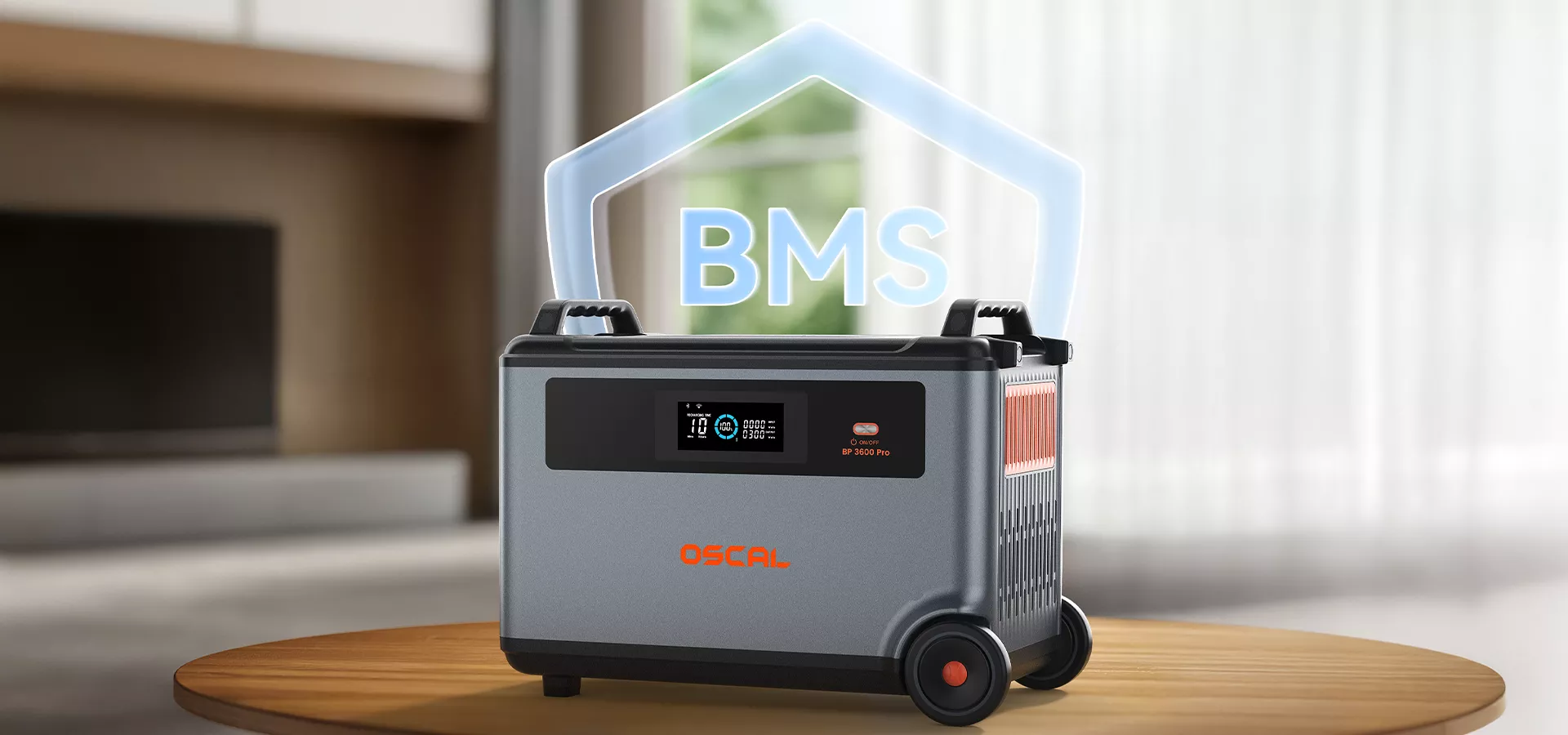

Intelligence BMS
Multi-Layer BMS Protection for
More Stable Expansion Larger energy systems need tighter battery management. BP3600 Pro integrates a BMS that continuously monitors voltage and temperature, and triggers protection under overcharge, undervoltage, high-temperature, and low-temperature conditions—providing a clearer safety boundary for cells and pack operation under real-world variation.
Overcurrent Protection
Short Circuit Protection
Overvoltage Protection
Undervoltage Protection
Overtemperature
Protection
Low Temperature
Protection
Overcharge Protection
Overload Protection

Product Specifications

  • Category
    Parameter
    Specification
  • Basic Info
    Product Name
    OSCAL BP3600 Pro
    Product Type
    Expansion Battery Pack
    Compatible Host
    PowerMax 6000 Pro
    Battery Capacity
    3600Wh
    Battery Type
    LiFePO4
    Battery Cycles
    5000+
  • Expansion & Connection
    Power Pack Connection Ports
    2 × expansion ports
    Expansion Port Rating
    48V / 75A / 3600Wh-class
    Capacity Added per Pack
    +3600Wh per pack
    Max System Expansion
    Up to 15 packs in parallel, total capacity up to 57.6kWh
    Connection Method
    Dedicated parallel cable
    Included Accessory
    Parallel cable ×1
  • Battery Management
    BMS
    Yes
    Overcharge Protection
    Yes (approx. 53.25V)
    Undervoltage Protection
    Yes (approx. 42V)
    Charge High/Low-Temp Protection
    Yes
    Discharge High/Low-Temp
    Yes
  • Display & Control
    LCD Display
    Yes
    Display Information
    Battery percentage, input/output power, remaining charge/discharge time, connection status, alerts, and more
    Main Power Button
    Yes
    LED Light Mode
    No
    Smart App Control
    Yes (via PowerMax)
  • Physical Specs
    Dimensions
    565 × 315 × 390 mm
    Net Weight
    37.6 kg
