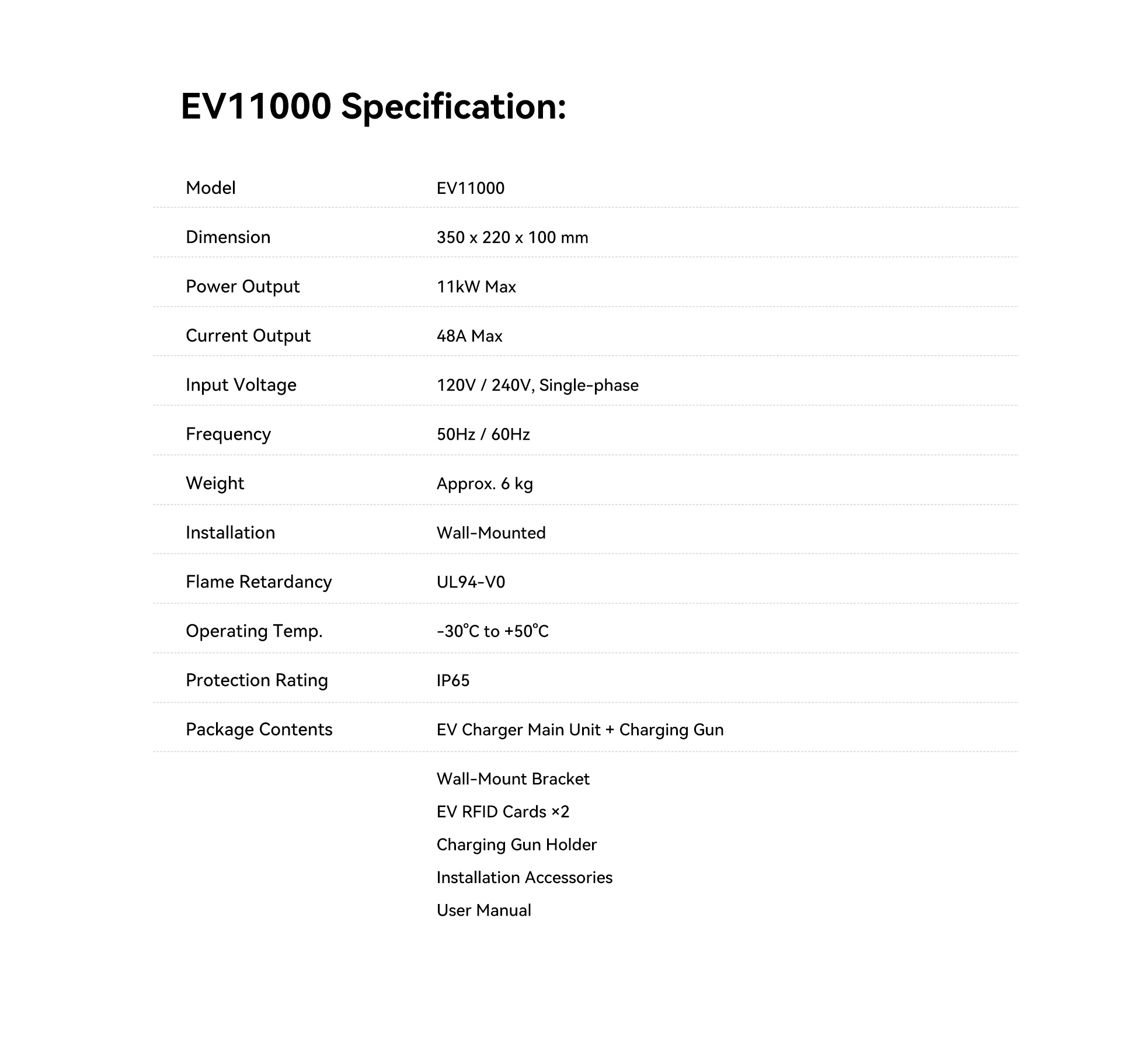

EV11000
Model EV11000
Dimension 350 x 220 x 100 mm
Power Output 11kW Max
Current Output 48A Max
Input Voltage 120V / 240V, Single-phase
Frequency 50Hz / 60Hz
Weight Approx. 6 kg
Installation Wall-Mounted
Flame Retardancy UL94-V0
Operating Temp. -30°C to +50°C
Protection Rating IP65
Package Contents EV Charger Main Unit + Charging Gun
Wall-Mount Bracket
EV RFID Cards ×2
Charging Gun Holder
Installation Accessories
User Manual
