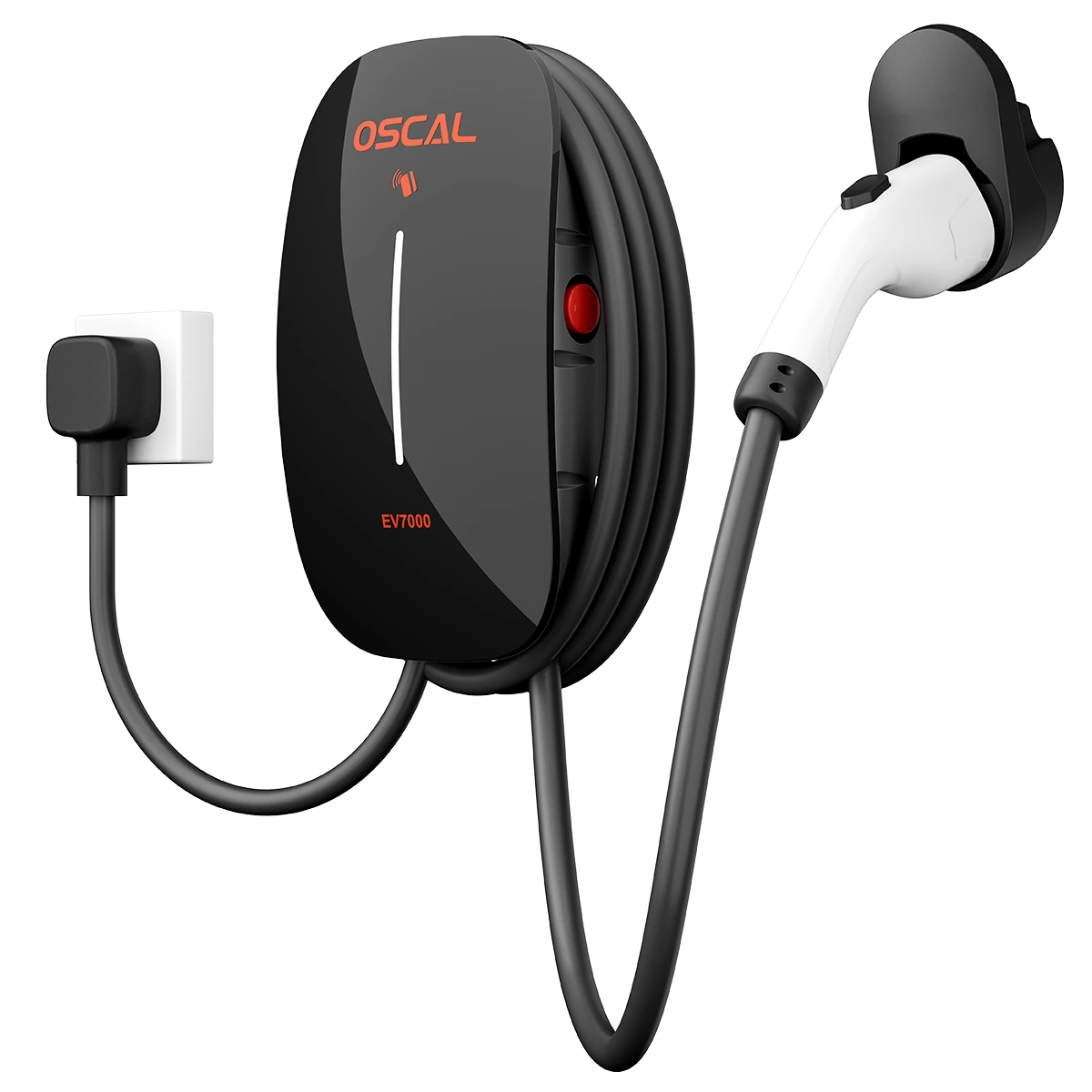

OSCAL EV7000
Unleash 7kW Power. Secured by Industrial-Grade Protection.
Charge at Full Speed. Stay Safe at Every Step.
7kW Charging Power & 32A Output, Backed by
a Larger Mainboard for Better Cooling
Built for Faster, Cooler, and More Stable Charging
NO.1Charge Faster, Smarter, Safer Your EV Powerhouse at Home.
Experience the convenience of rapid 7kW charging, intelligent app control, and uncompromising safety with the EV7000. Ditch the public charging queues and power your journey effortlessly.
Powerful 7kW
Performance
Double the Power,
Half the Time
Tired of waiting? The EV7000 delivers up to 7kW of charging power — twice the speed of standard 3.5kW chargers. That means a 50kWh EV can be fully charged in around 7 hours, compared to 14 hours with lower-power models. Spend less time plugged in and more time on the road.
32A for Faster,
More Stable Charging
High-Current Output for Maximum Efficiency
While many home chargers top out at 16A, the EV7000 doubles the current with a powerful 32A output, delivering faster charging speeds and a more stable current flow. That means less downtime, fewer interruptions, and a consistently higher charging efficiency — even during long sessions.
2× Faster than Standard 16A Chargers ↑
Greater Stability during Full-load Operation ↑
Ideal for Modern EVs with Larger Battery Packs ↑
Larger Mainboard for Better Cooling
Bigger Board, Better Cooling
EV7000 adopts a large mainboard design with generous layout space and an expanded thermal surface, enabling faster heat dissipation and greater system stability. Less heat buildup means lower stress on components and longer lifespan. We went bigger — so you can charge cooler and safer.
Bigger Layout
Enhanced
Heat Dissipation
Long-Term Stability

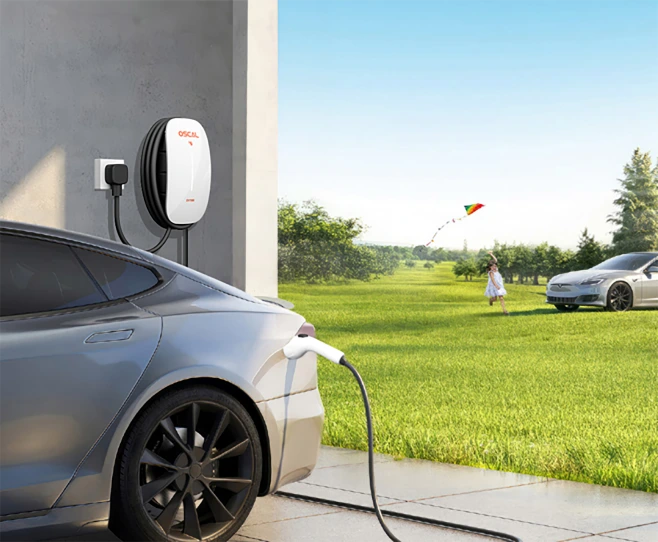

Home Charging Freedom
Your Schedule, Your Power
Say goodbye to hunting for public stations. Install the EV7000 at home and charge whenever suits you – overnight, during the day, anytime. Enjoy the ultimate convenience and start every journey with a full battery.
Compact Yet Mighty
Small in Size, Big on Impact
At just 350×180×90mm and a feather-light 5.5kg, the EV7000 is nearly 40% smaller and lighter than most AC chargers in its class. Whether mounted on a narrow wall or tucked into a tight garage corner, it blends effortlessly into your space.
40%
Smaller than standard chargers ↑
5.5kg
Ultra-light design ↑
Ideal for compact garages & home walls ↑
Sleek from Every Angle
With its smooth, streamlined silhouette and clean contour lines, the EV7000 brings modern elegance to EV charging. Whether wall-mounted or pole-installed, it blends seamlessly into both residential and commercial settings.
5-Minute
Quick Installation
Effortless Setup，Install in Minutes
Get charging quickly! The sleek, wall-mounted design is optimized for fast, easy installation in just 5 minutes. It offers effortless operation and easy maintenance, making charging hassle-free.
Black or White
Choose Your Own Style
Available in White or Black, the EV7000 blends seamlessly into any environment, adding a touch of modern style.
Dual Access Modes & Intelligent App Control &
Multi-Color Status Lighting
Charge Smarter, Live Easier
NO.2Flexible Access Options —— Charge Your Way
Choose the method that works best for you:
RFID Card Access
Simple swipe-and-charge security – perfect for shared use or when you don't want to reach for your phone.
App Control
Full remote access and scheduling.
Your App, Your Charger
Total Control is Here
Connect effortlessly via Bluetooth (or optional WiFi) and manage your charging directly from your smartphone. Start, stop, monitor progress, and track energy usage in real-time, wherever you are.
Schedule Off-Peak Charging
Charge Smarter, Save More
Connect effortlessly via Bluetooth (or optional WiFi) and manage your charging directly from your smartphone. Start, stop, monitor progress, and track energy usage in real-time, wherever you are.
Set it before bed and let the EV7000 handle the rest, ensuring you charge at the cheapest times without lifting a finger.
Take Control of Your Charger With the App
Remote Access, Flexibility, and Convenience
Remote Control
Start or stop charging from anywhere — no need to be near your car.
*APP remote control requires the charging post to be connected.
Flexible Charging Schedules
Schedule charging to fit your life, ensuring your vehicle is always ready when you need it.
Convenient Family Sharing
Share control with multiple users, whether it’s your spouse, parents, or friends visiting with an EV — everyone gets fast, secure access to power.
Smart Ambient Lighting
Charging Status at a Glance
EV7000’s intelligent ambient lighting system uses distinct colors to indicate real-time charging status — whether it's charging, standby, fully charged, or fault detection. Beyond functionality, its sleek illumination adds a modern touch to your garage or driveway, turning charging into a visually guided experience.
Solid Blue Light:
Idle Status
Solid Green Light:
Charging Complete
Blue-Green-Blue-Red:
Power-on Self-Test:
Blue Breathing Light:
Cable Connected Normally
or Waiting for Scheduled Charging
Green Breathing Light:
Charging Status
Red Flashing Light:
Charger Malfunction
Solid Blue Light:
APP Bound and Network
Connected Successfully
Solid Cyan Light:
APP Bound but
Network Disconnected
Solid White Light:
APP Not Bound
Electrical Safety Protections & UL94-V0 Flame-Retardant
Build & Industrial-Grade Plug for Safer, Simpler Installation
From Inside Out, Built for Safety
NO.3Total Safety Protection — 10 Layers of Assurance
EV7000 is not just powerful — it’s built for safety. Equipped with an emergency stop button and certified with ten key electrical protections, it ensures stable performance even in challenging environments.
Emergency Stop
Swift Shutdown at a Single Press
In critical moments, simply press the emergency stop button to instantly halt all operations. To resume, twist the button and reboot the charger. Simple, intuitive, and ready for any emergency.
UL94-V0 Flame Retardant
Superior Fire Safety, From Plug to Port
We don't compromise on materials. EV7000's entire structure – casing, charging gun, and cable – uses top-tier UL94-V0 flame-retardant materials. Compared to standard V1-grade plastics, V0-grade resists flames up to 1000°C and self-extinguishes within 10 seconds — with no melting, no dripping.
Common
UL94-V1 flame-retardant
UL94-V0 flame-retardant

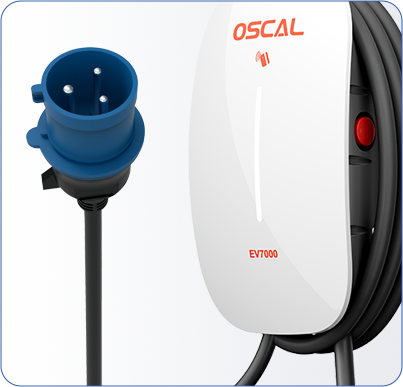

Industrial-Grade Plug
Faster, Safer, Smarter Installation
Unlike most AC chargers that require manual wiring with three separate cables, EV7000 features an integrated industrial-grade plug. The wiring is pre-encapsulated inside the connector, reducing installation time and eliminating risk from loose or incorrect connections. Just plug it in — fast, safe, and hassle-free.
Common
EV7000
IP65 & IP55-Rated Dust and Water Protection
& Reliable from -30°C to +55°C
Built to Withstand It All — All-Weather. All-Terrain. All-Year Performance
NO.4All-Weather Durability
Unlike ordinary IP65 chargers, EV7000 is designed with enhanced sealing, corrosion-resistant materials, and high-grade insulation to withstand real-world environmental stress.
IP65-Rated Body Protection
Reliable Charging in Any Weather
With IP65-rated dust and water resistance, the EV7000 withstands rain, dust, and harsh conditions, ensuring stable performance indoors and outdoors. Charge with confidence, no matter the weather!
Aerospace-Grade
PC+ABS Casing
Durable, Safe & Built to Last
EV7000 features an aerospace-grade PC+ABS shell, offering superior heat resistance, impact protection, and corrosion resistance compared to standard plastics. Designed to withstand extreme weather conditions, it ensures long-lasting durability and enhanced charging safety!
Go Anywhere, Charge Everywhere
Reliable Charging, Rain or Shine
From the salty winds of coastal towns to the sub-zero temperatures of alpine regions, EV7000 is engineered to handle it all. Its corrosion-resistant casing and wide-temperature electronic components make it the ideal choice for any region, any season.
Extreme Climate Compatibility
From -30°C Frost to +50°C Heat
Designed to operate reliably from -30℃ to +55℃, EV7000 handles the extremes of both winter frost and desert heat. Its thermal-optimized PCB layout ensures stable output in scorching conditions, while anti-condensation circuits prevent internal moisture issues in cold, humid environments.
-30°C
+50°C
IP55-Rated Charging
Gun Protection
Anti-Slip Grip for Confident Handling
With a silicone dust cap and ergonomic grip, the charging gun achieves IP55 when not in use — keeping the connector clean, dry, and ready.
Stainless Steel Screw Fixation
Rust-Free. Loosen-Proof.
Quality down to the details. Stainless steel screws ensure a tight seal that resists rust, loosening, and wear over time, maintaining structural integrity even in damp environments.
Seaside installations? No rust, no corrosion — anti-salt materials and IP65 sealing keep EV7000 spotless and strong.
Rainstorms? No worries. Fully sealed for safe night-time charging.
Tropical Humidity? Anti-condensation airflow system keeps the core dry.
Seaside installations? No rust, no corrosion — anti-salt materials and IP65 sealing keep EV7000 spotless and strong.
Northern winters? Operates reliably in -30°C cold with anti-condensation circuits and frost-resistant insulation.
99.9% EV Compatibility with Dual-Frequency
Input & Multi-Protocol Support
Universal Compatibility, Global Convenience
NO.5Dual Frequency Compatibility
Universal Charging Around the World
EV7000 supports both 50Hz and 60Hz power standards, ensuring seamless compatibility across global regions. Whether you're in Europe or the US, enjoy stable and reliable charging anywhere you go.
99.9% EV Compatibility. One Charger for All.
EV7000 is compatible with 99.9% of EVs on the market, supporting both IEC 62196 and SAE J1772 standards. Aside from proprietary networks like Tesla US, it covers almost all current and upcoming EVs.
More Comprehensive After-sales Service with
Offline Physical Repair Center & Hotline
More Peace of Mind, Less Worry
NO.6Offline Physical Repair Center
Worry-Free After-Sales Service
OSCAL is always committed to providing customers with superior after-sales service experiences. In addition to convenient hotline support, we have also established a physical repair center in Europe, where professional technicians can provide you with on-site repair and technical services.
| Model | EV7000 |
| Color | Black / White |
| Dimension | 350 x 180 x 90 mm |
| Power Output | 7kW |
| Current Output | 32A/16A |
| Input Voltage | 220V-240V AC (Single Phase) |
| Frequency | 50Hz / 60Hz |
| Weight | Approx. 5.5 kg |
| Installation | Wall-Mounted |
| Cable Length | Supply Cable: 1m; Charging Cable: 5m (Customizable) |
| Flame Retardancy | UL94-V0 (Body, Charging Gun, Cables) |
| Operating Temp. | -30°C to +50°C |
| Protection Rating | Body: IP65；Charging Gun (Covered): IP55 |
| Charging Interface | IEC 62196 / SAE J1772 |
| Safety Features | Emergency Stop Button/Leakage Protection/ Over-Voltage Protection/Under-Voltage Protection/ Over-Current Protection/Over-Temperature Protection/ Short-Circuit Protection/Grounding Protection/ Lightning Protection/Rain Protection |
-
Black
-
White
Model |
EV7000 |
| Color |
Black / White |
Dimension |
350 x 180 x 90 mm |
Power Output |
7kW |
Current Output |
32A/16A |
Input Voltage |
220V-240V AC (Single Phase) |
Frequency |
50Hz / 60Hz |
Weight |
Approx. 5.5 kg |
Installation |
Wall-Mounted |
Cable Length |
Supply Cable: 1m; Charging Cable: 5m (Customizable) |
Flame Retardancy |
UL94-V0 (Body, Charging Gun, Cables) |
Operating Temp. |
-30°C to +50°C |
Protection Rating |
Body: IP65；Charging Gun (Covered): IP55 |
Charging Interface |
IEC 62196 / SAE J1772 |
Safety Features |
Emergency Stop Button/Leakage Protection/ |
