Blackview OSCAL PowerMax 6000
Power All Your High-Powered Home Devices With Ease
Up to 57.6kWh Large Battery,
6000W High Power,
120/240V Dual Voltage
24/7 UPS Backup
5-8ms Fast Switch
50% Faster Switch
From 3600Wh to 57600Wh
Up to 30 Days of Whole-Home Power Supply
* Note:Calculated by 2kWh/day.
6000W
14 Versatile Outlets
Power up to 99%
of Essential
Devices
Built-in
Advanced TI chip
Up to 10% Faster
Empower with Green&
Zero-cost Energy
Fuel Up to 80% in Just 69Mins
Charging at Super Fast Speed
120V/240V
Dual Voltage output
Dual-Voltage in One Unit
for All Your Needs
120V 240V
0.8M Vertically
Drop-Proof
Splash-Proof
Dust-Proof
Anti-UV & UL94V-0 Rated
Fire-Retardant
Discharge Temperature from
-20℃ to 55°C
Up to 10°C Higher/
Lower Temperature Resistance than Peers
LiFePO4 Cells | Eightfold Safety Protection BMS
Up to 3500 Life Cycles,
Last for Up to 25 Years
Large in Any Power
Yet Easy on Any Move
On-Unit Control At a Glance
Up to 10% Faster Button
Response Time
Smart APP Control with Upgraded
Firmware Via WiFi or BlueTooth
Whisper-quiet Charging
without Noise and Fumes
Only 50dB Max (Full Loaded)
Low Battery Warning
Timely Low Battery Warning,
Lifesaver in CPAP Usage.
45°C Constant Temperature Cooling System
Up to 40℃ Temperature Reduction
4*38mm Large Smart Temperature-activated Fans
5 * LED Light Modes
Morse Code Signal Light Lifesaver in Emergency
Drawing upon years of adeptness in crafting rugged phones, Blackview, renowned as a leader in the rugged phone industry, is embarking on a pioneering venture by infusing the unbreakable capabilities of rugged phones into power stations.
0.8M Vertically Drop-Proof Design
Forged to match the harsh terrain of your expeditions, the PowerMax 6000 is meticulously crafted to withstand vertical falls from heights of up to 0.8 meters, alleviating concerns of unintended drops from your grasp while detaching it from the car or stairs.
Splash-Proof & Dust-Proof Body
From lakesides in the dewy morning to dusty desert at dusk, you can take it anywhere without worries – it effortlessly shields against vertical water droplets and certain solid particles from entering the enclosure.
Anti-UV&UL94V-0 Rated
Fire-Retardant Case
Whether it’s in the midst of yard trimming or desert exploration, the PowerMax 6000's Anti-UV feature protects it from fading and aging brought on by prolonged sun exposure, and its UL94V-0 flame-retardant case ensures that there is no risk of fires resulting from heat generation.
Not Just for Lighting, but Also for Emergency Communication
In addition to 5 standard LED light modes, information can be sent through light signals by varying the brightness and flashing patterns of the lights, which is helpful at night, inclement weather, or in low visibility situations to convey signals, especially distress calls.
5 LED Light Modes
Dim Mode
Bright Mode
Breathing Light Mode
Flashing Mode
SOS Mode
Morse Code Signal Light
Home illumination during power outage.
Emergency communicationt in the wild.
From 3600Wh to 57600Wh
Up to 30 Days of Whole-Home Power Supply
Note:Calculated by 2kWh/day.
6000W
14 Versatile Outlets
Power 99%
of Essential Devices
120V/240V
Dual Voltage output
Get True Grid-Independence Indoor or Outdoor
How does Blackview OSCAL PowerMax 6000 help
ease energy shortages and save electricity bills?
Portable energy for your
camping or glamping.
Consistent power solutions in
professional creative work.
Reliable home backup power during
unexpected power outages.
57600Wh Max Battery, Up to 30 Days
of Home Backup Power Supply
Catering to your various energy needs from outdoor to indoor activities, Blackview OSCAL PowerMax 6000 offers the flexibility to tailor your battery capacity with a 100% modular design, ranging from 3.6 kWh to 57.6 kWh with up to 15 Battery packs ( 3600 Wh/per pack).
3.6kWh
≈36km-108km for E-Scooters
≈Up to 3 Days Power for RV&Camping
28.8kWh
≈256km-640 km for E-Motorcycles
≈Up to 7 Days for Professional Work
57.6kWh
≈345.6-403.2km for EVs
≈Up to 30 Days for Whole-Home Backup
Large in Any Power Yet Easy on Any Move
6000W Rated Power,
Power 99% of Appliances
Rest assured that whatever you plug into the PowerMax 6000 will operate at its optimal capacity with its 6000W pure sine wave output, capable of handling power surges from pro tools in off-grid life like power drills and cutting machines to home life essentials such as microwaves, refrigerators, and air conditioner.
what can your Perfect Day be with Blackview OSCAL PowerMax 6000?
Breakfast
0.25H* 800W Toaster
Coffee
0.1H *800W Coffee Maker
Lawn Maintenance
1 H* 800W Corded String Trimmer
Fishing
3H* 180W Portable Fridge
Lunch Break
1 H*5000mAh Phone Charging
Lunch
0.5H* 1000W Electric Skillet
Barbecue
1 H*1000W Electric Grill
Outdoor Movie
2H*65W Projector
Campfire Chat
2H*50W Portable Speaker
Stargazing
7H * 30W Camping Lantern
Two Voltage in One To Meet Your Needs
Ever struggled with power stations that only support 120V AC output, or needed two units and a hub to run your 240V appliances? The 120V/240V split phase power system in OSCAl PowerMax 6000 delivers 120V and 240V output directly from one unit. From brewing you morning coffee at 120V to tackling weekend DIY projects with 240V, we've got you covered.
120V Devices:
Televisions
Computers
Coffee makers
Microwaves
Blenders
240V Devices:
Electric Stoves
Ovens
Air Conditioners
Cloth Dryers
Welders
One is Enough for Your Whole Family
With a high-quality 6000W rated pure sine wave AC inverter, 14 outlet sources of Blackview OSCAL PowerMax 6000 can satisfy all your outlet needs to run your entire party, camping trip, or even your whole house in the event of an unexpected outage.

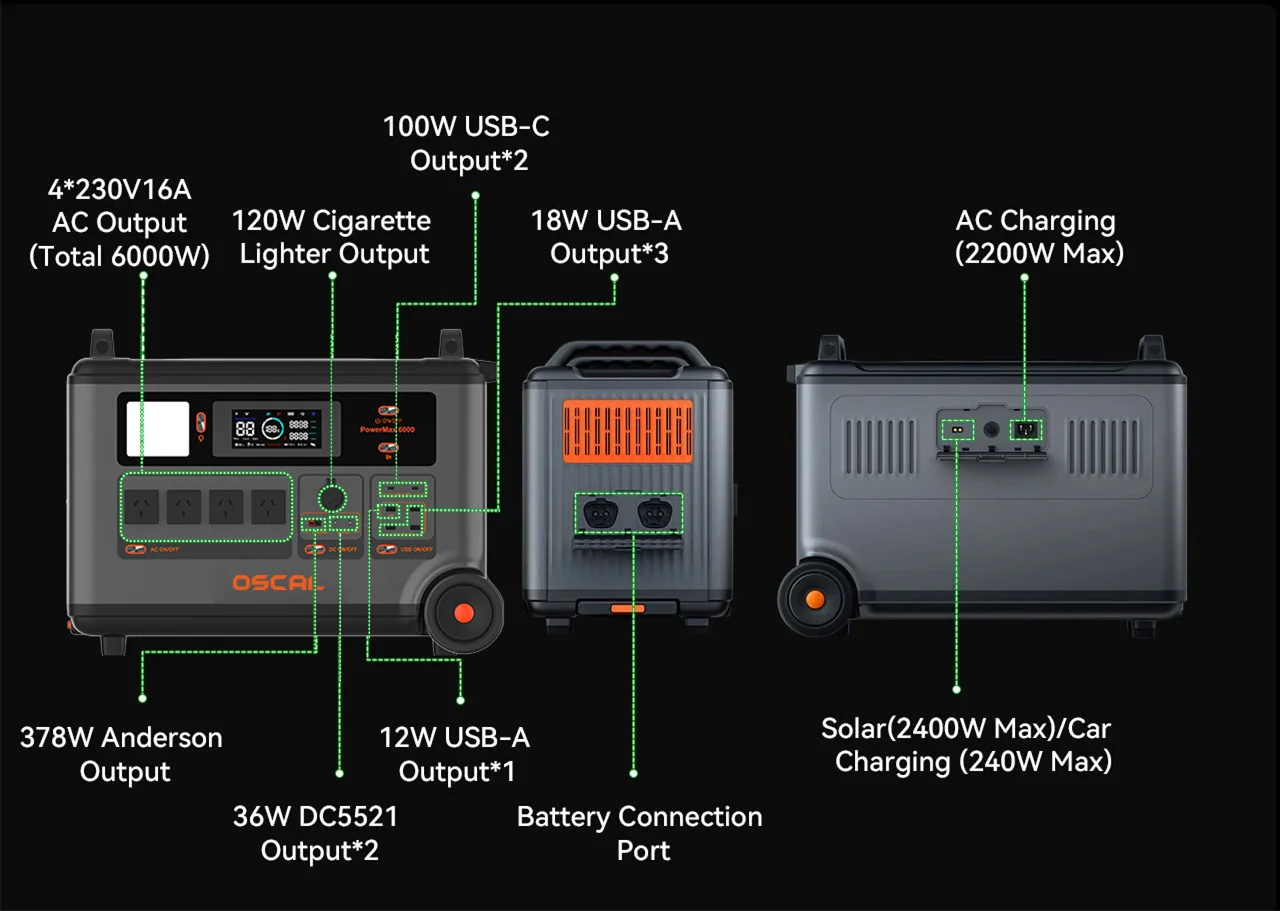

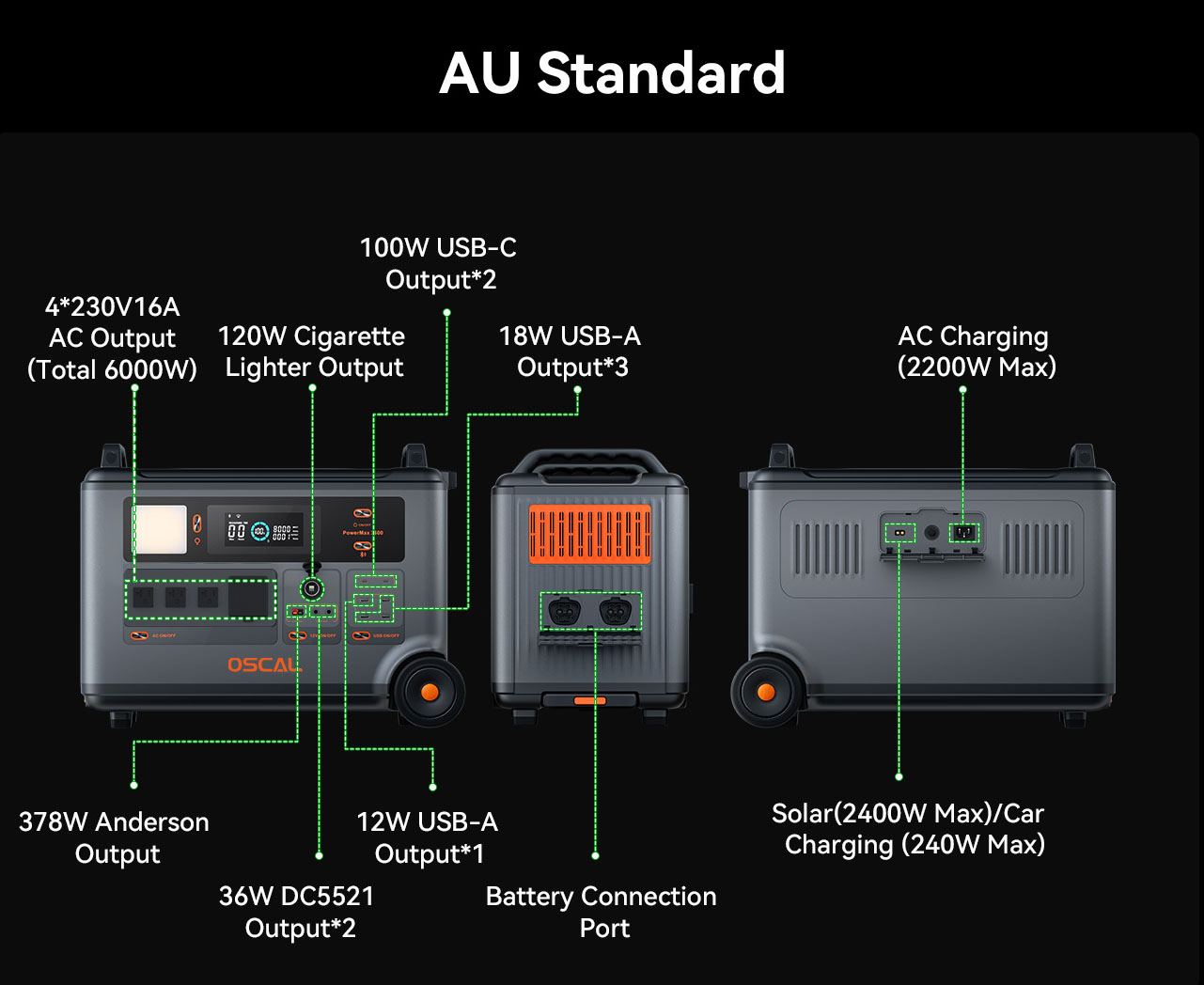

4*230V16A
AC Output
(Total 6000W)
120W Cigarette
Lighter Output
100W USB-C
Output*2
18W USB-A
Output*3
AC Charging
(2200W Max)
378W Anderson
Output
36W DC5521
Output*2
12W USB-A
Output*1
Battery Connection
Port
Solar(2400W Max)/Car
Charging (240W Max)
CPAP 40W
45 Hours
Washer 500W
6.2 Hours
Microwave 1300W
2.4 Hours
Coffee Maker 1000W
3.1 Hours
Cutting Machine 1100W
3 Hours
Electric Grill 1150W
2.7 Hours
AC Outlets:
(EU standard)
Tank Water Heater
4500W
Industrial Clothes Dryers
5000W
Commercial Induction Cooker
5200W
Rotary Screw Air Compressor
（4800W）

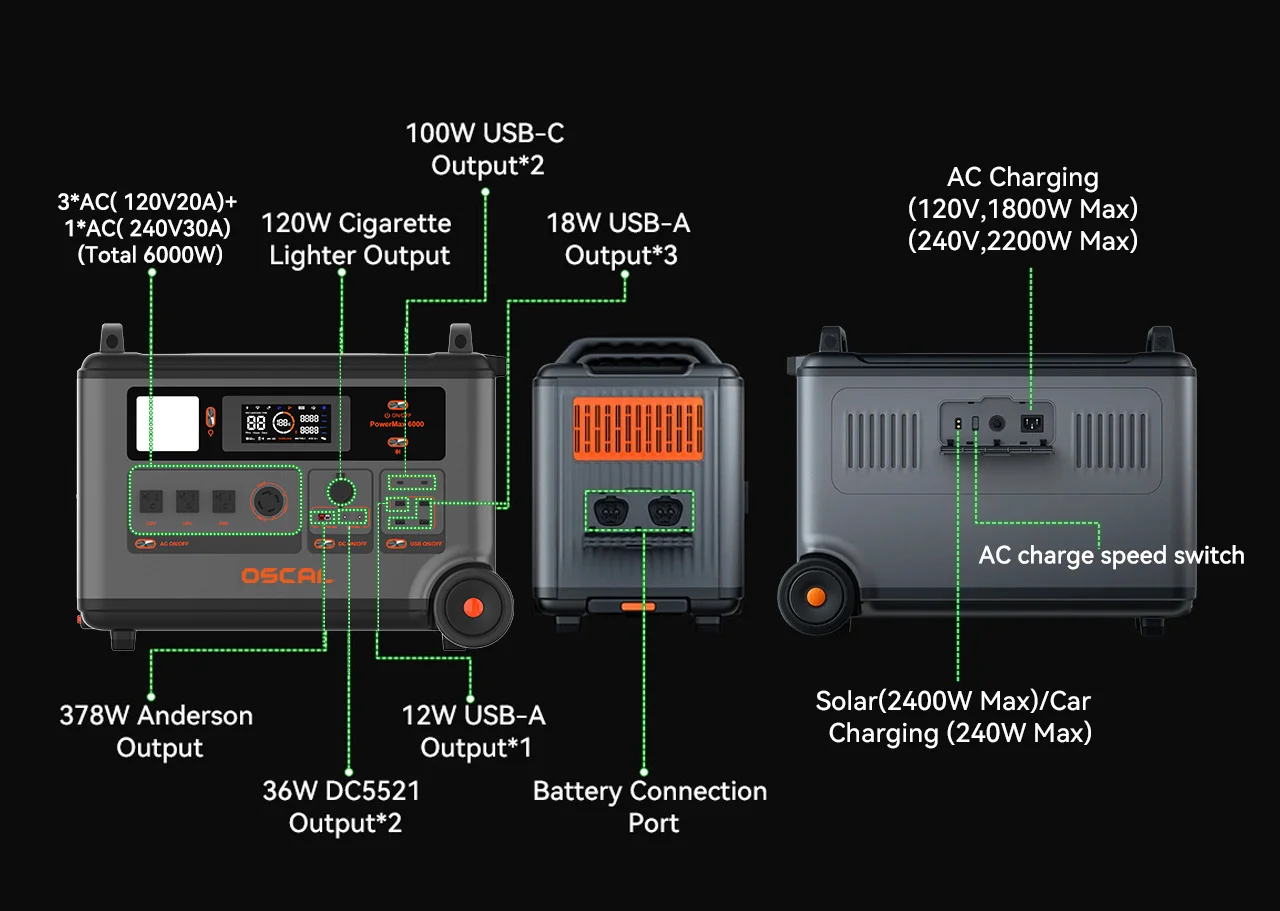

AC Outlets:
(US standard)
1*378W Anderson +2*36W
DC5521 Output
Oxygen Concentrator 240W
13 Hours
Camping Lantern 15W
208 Hours
Drones 70W
45 Hours
Speaker 150W
21 Hours
Portable Fan 20W
156 Hours
Survey Camera 20W
156 Hours
Phone 19.54Wh
160 Hours
Laptop 60Wh
52 Hours
Camera 16Wh
195 Hours
Smart Watch 5Wh
622 Hours
Projectors 250W
12.5 Hours
32"TV 50Wh
62 Hours
USB Outlets:
2*100W USB-C+1*12W USB-A
+3*18W USB-A Output
1*120W
Cigarette Lighter Port
Car Refrigerator 60W
52 Hours
Portable Fan 30W
104 Hours
Handheld Vacuum Cleaner 40W
78 Hours
Electric Blanket 60W
52 Hours
Portable Air Purifier 70W
45 Hours
Travel Coffee Maker 100W
31 Hours
AC Charging
Car Charging
Gas Generator Charging
Lead-acid Battery Charging
Wind Turbine Charging
Solar Charging
Water Turbine Charging
Fuel Up to 80% in Only 69 Mins,
Charge in Any Way You Like
Charge the device quickly from a wall outlet at home or replenish it on the go from your car. Are you seeking eco-friendly energy from solar, wind, or water sources? We have your back. Are you looking for even more options? Blackview OSCAL PowerMax 6000 is also compatible with an array of energy systems, encompassing EV charging stations, gas generators, and lead-acid batteries.
AC+Solar Dual Charging
Max 3000W
only 1.44 Hrs
AC Charging
Max 2200W
only 1.96 Hrs
EV Charging Station
Max 2200W
only 1.96 Hrs
Gas Generator Charging
Max 2200W
only 1.96 Hrs
Lead-acid Battery Charging
Max 240W
only 15Hrs
Car Charging
Max 240W
only 15 Hrs
Live a Sustainable Life with Green and
“Zero-cost” Energy.Save Up to $1612.8
/Year!
Solar Charging
Max 2400W
1.5Hrs
Wind Turbines Charging
Max 2200W
1.96 Hrs
Water Turbine Charging
Max 2200W
1.96 Hrs
3000W Max. Input
Blackview OSCAL PowerMax 6000
1800W Max. Input
J Company (2160Wh)
600W Max. Input
G Company (3032Wh)
24/7 UPS Backup
5-8ms Fast Switch
50% Faster Switch
Intelligent BMS
Eightfold Safety Protection
Advanced LiFePO4 Cells
Up to 3500 Life Cycles,
Last for Up to
25 Years
EV-grade LFP Batteries,
The 25-Year Promise of Safety!
Safety and durability stand as the cornerstone of Blackview OSCAL's mission. With Blackview OSCAL PowerMax 6000, we've harnessed cutting-edge LiFePO4 battery chemistry, ensuring an impressive 3500 lifespan circles* of nearly 25 years when used every other day.
Note: 3500+ cycle life to 80% capacity.
Lifespan Circles: Up to 5 Times More Durable Than Others
Intelligent BMS,
Eightfold Safety Protection
Empowered by the intelligent Battery Management System, any potential glitches, be it overheating, overload discharging, or over-voltage issues, can be promptly fixed.
Over Current Protection
Short Circuit Protection
Over Voltage Protection
Under Voltage Protection
Over-temperature Protection
Low-temperature Protection
Over-charging Protection
Overloading Protection
Be it the exploration of Alaska's glaciers or the vast Sahara deserts, Blackview OSCAL PowerMax 6000 remains unaffected by the most extreme temperatures from -20~55°C（-4~131°F）.
Be stable in the exploration of
-20 °C Alaska's glaciers.
Be stable in the exploration of
55 °C Sahara deserts.
-20~55°C (-4~131°F)
PowerMax 6000 Operating Temperature
-10°C ~ 45°C
DELTA Pro Operating Temperature
Note: Best under conditions from -10°C~45°C（14~113°F）
Four temperature sensors
Temperature monitoring at 100ms/time.
Four 38mm large smart
temperature-activated fans
Reduce the temperature by 40℃
5-8 ms Fast Switch,
24/7 Uninterrupted Power Station
When the home power source fails, the Blackview OSCAL PowerMax 6000 will swiftly switch to work as the backup battery in only 5-8ms , so you hardly notice the slight flickering of the lights, delivering constant power to protect your computer from data loss and maintaining the uninterrupted operation of your fish tank, refrigerator, CPAP, and other essentials.
*The device will warn in advance if the power is about to run out.
Switch Time: 50% Faster than Others
Built-in
Advanced TI chip
Up to 10% Faster
On-Unit Control At a Glance
Intuitive Display and Oversized Buttons
Smart APP Control with
Upgraded Firmware
Via WiFi or BlueTooth
All in the Palm of Your Hands
Smart APP Control
On-Unit Control
TI chipset
PowerMax 6000
Etron chipset
Peers
Embrace Low Carbon Living
Note： Noise level when fully loaded: 50dB Max (Full Loaded).
PM100 & PM200 & PM400 Solar Panel
Charge the Blackview OSCAL PowerMax 6000 to full from the sun with 100W, 200W, 400W portable solar panels (Sold separately) while away from the grid. The Integrated MPPT charge controller gets the most efficient solar charge with up to 23% solar conversion efficiency.
100W & 200W Solar Output
Adjustable Kickstand
Laminated Technology
Long-lasting ETFE Material
Up to 21.7%~23% Highly Efficient
Blackview OSCAL
PowerMax 6000
Goal Zero Yeti 3000X
Honda EU3000iS
80% capacity
80% capacity
(9000W surge)
(3,500W surge)
(3,000W surge)
USB-A 12W X1
USB-A 18W X3
Anderson 378W X1
DC 5521 36W X2
Cigarette Lighter 120W X1
2x USB-A 12W Max.
1x USB-C 18W Max.
12V/10A DC 120W Max.
1x 12V Car Port, 160W Max.
2x 12V/30A,
2800W rated (23.3A)
20A 125V Duplex,
30A 125V Locking Plug
Blackview OSCAL
PowerMax 6000 Dimension
Length: 590 mm
Width: 350 mm
Height: 441 mm
Weight: 46 Kg
SPECS:
| BATTERY | Battery Capacity | 3600 Wh |
| Battery Type | LFP (LiFePO4 battery) | |
| Battery Life Cycles | 3500+ Cycles to 80% of Original Capacity | |
| OUTPUT | AC Output | 4x AC Output (Total 6000W) |
| Inverter Type: Pure Sine Wave | ||
| Surge Power:9000W(5ms) | ||
| USB-A Port | USB-A 12W X1 USB-A 18W X3 |
|
| USB-C Port | USB-C 100W x2 | |
| DC Output | Anderson 378W X1 DC 5521 36W X2 |
|
| Cigarette Lighter Port | Cigarette Lighter 120W X1 | |
| INPUT | AC Adapter Input |
2200W ( Max) Recharging times: 1.96H |
| Solar Input |
2400W ( Max) Recharging times:1.5H (With prime sunshine, ideal orientation, and low temperature) |
|
| Car Input | 240W (Max) Recharging times: 15H |
|
| Dual Charging |
-AC Charging+DC-Solar Charging
1.44H -AC Charging+DC-Car Charging 1.77H |
|
| GENERAL | Weight | 101.41 lbs（46kgs） |
| Dimensions (LxWxD) | L590*W350*H441 mm | |
| Charging Temperature |
0℃~50℃ (32F~122F) Ideal from 0℃ to 45℃. (32°F~113°F) |
|
| Discharging Temperature |
-20℃ ~55℃ (-4F~131F) Ideal from -10℃ ~45℃.(14°F~113°F) |
|
| Storage Temperature | -10℃ ~45℃ （14°F~113°F） | |
| App Control | Yes, via WiFi and Bluetooth | |
| Certification |
Europe: CE/RED/ROHS (EU) America: FCC /DOE/CEC/FCC/UL South Africa: IEC62368 |
|
| Warranty | 4 Years | |
| In the Box |
1xBlackview OSCAL PowerMax 6000 1x User Manual +Warranty Card 1*AC Charging Cable 1*Car Charging Cable 1*Solar Charging Cable |
|
| Note: | OSCAL PowerMax 6000 uses Buck Constant Power Tech to ensure stable output power and reliable operation of the device. 1. Temperature < 55°C: The device operates at 6000W for 5 minutes then reduces to 5000W output with constant power. 2. Temperature ≥ 55°C: The device immediately reduces output to 5000W with constant power. For extended high-power usage, PowerMax 6000 is recommended to use with battery pack BP3600 for longer usage time. | |
Blackview OSCAL BP3600
Extra Battery Dimension
Length: 590 mm
Width: 350 mm
Height: 441 mm
Weight:36 Kg
SPECS:
| BATTERY | Battery Capacity | 3600 Wh |
| Battery Type | LFP (LiFePO4 battery) | |
| Battery Life Cycles | 3500+ Cycles to 80% of Original Capacity | |
| GENERAL | Scalability | Works with PowerMax 6000 |
| Battery Management System | BMS | |
| Simultaneous Recharge & Discharge | Yes | |
| Weight | 79.37 lbs（36kgs） | |
| Dimensions (LxWxD) | L590*W350*H441 mm | |
| Charging Temperature |
0℃~50℃ (32F~122F) Best under condition from 0℃ to 45℃. (32°F~113°F) |
|
| Discharging Temperature |
-20℃ ~55℃ (-4F~131F) Best under conditions from -10℃ to 45℃. (14°F~113°F) |
|
| Storage Temperature | -10℃ ~45℃ （14°F~113°F） | |
| App Control | Yes, via WiFi and Bluetooth | |
| Certification |
Europe: CE/RED/ROHS (EU) America: FCC /DOE/CEC/FCC/UL South Africa: IEC62368 |
|
| Warranty | 4 Years | |
| In the Box |
1*Blackview OSCAL Extra Battery 1*Battery Expansion Cable 1* User Manual+Warranty Card |
| BATTERY | Battery Capacity | 3600 Wh |
| Battery Type | LFP (LiFePO4 battery) | |
| Battery Life Cycles | 3500+ Cycles to 80% of Original Capacity | |
| OUTPUT | AC Output | 4x AC Output (Total 6000W) |
| Inverter Type: Pure Sine Wave | ||
| Surge Power:9000W(5ms) | ||
| USB-A Port | USB-A 12W X1 USB-A 18W X3 |
|
| USB-C Port | USB-C 100W x2 | |
| DC Output | Anderson 378W X1 DC 5521 36W X2 |
|
| Cigarette Lighter Port | Cigarette Lighter 120W X1 | |
| INPUT | AC Adapter Input |
2200W ( Max) Recharging times: 1.96H |
| Solar Input |
2400W ( Max) Recharging times:1.5H (With prime sunshine, ideal orientation, and low temperature) |
|
| Car Input | 240W (Max) Recharging times: 15H |
|
| Dual Charging |
-AC Charging+DC-Solar Charging
1.2 H -AC Charging+DC-Car Charging 1.77H |
|
| GENERAL | Weight | 101.41 lbs（46kgs） |
| Dimensions (LxWxD) | L590*W350*H441 mm | |
| Charging Temperature |
0℃~50℃ (32F~122F) Ideal from 0℃ to 45℃. (32°F~113°F) |
|
| Discharging Temperature |
-20℃ ~55℃ (-4F~131F) Ideal from -10℃ ~45℃.(14°F~113°F) |
|
| Storage Temperature | -10℃ ~45℃ （14°F~113°F） | |
| App Control | Yes, via WiFi and Bluetooth | |
| Certification |
Europe: CE/RED/ROHS (EU) America: FCC /DOE/CEC/FCC/UL South Africa: IEC62368 |
|
| Warranty | 4 Years | |
| In the Box |
1xBlackview OSCAL PowerMax 6000 1x User Manual +Warranty Card 1*AC Charging Cable 1*Car Charging Cable 1*Solar Charging Cable |
