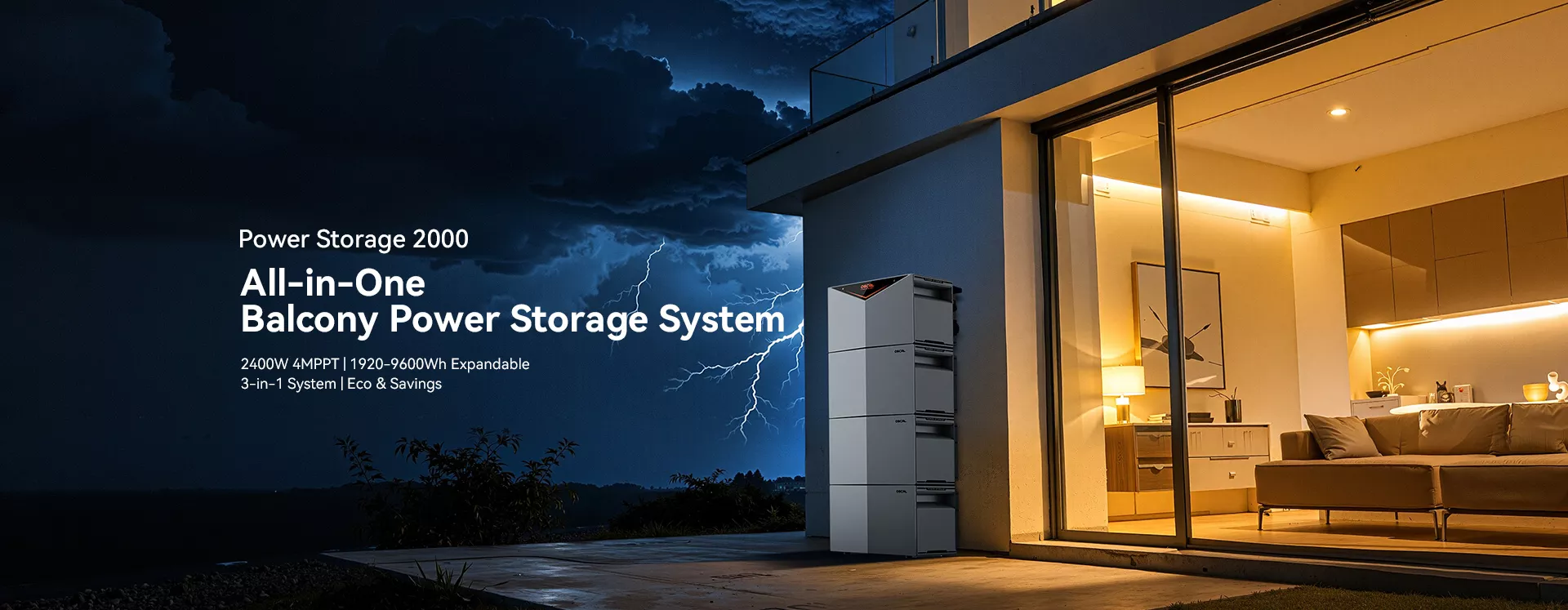

Power Storage 2000
All-in-One
Balcony Power Storage System
2400W 4MPPT | 1920-9600Wh Expandable
3-in-1 System | Eco & Savings

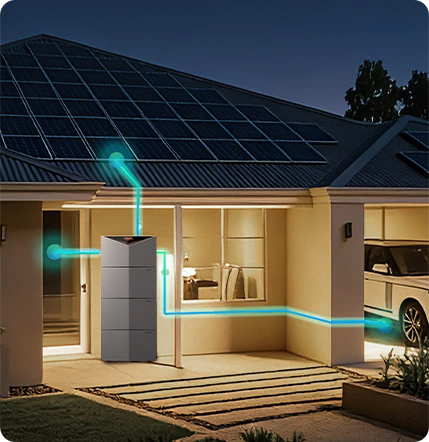

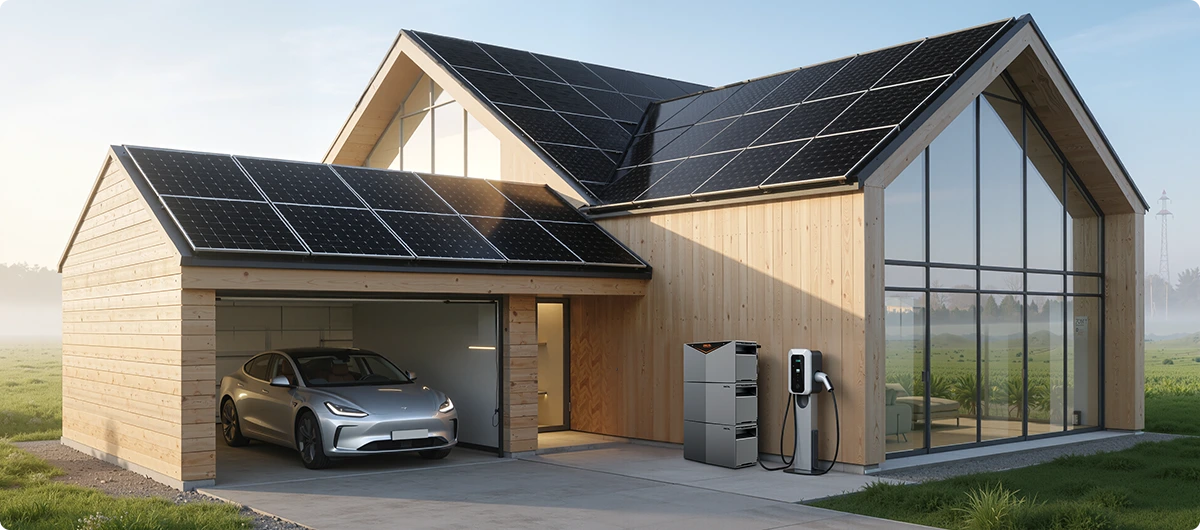

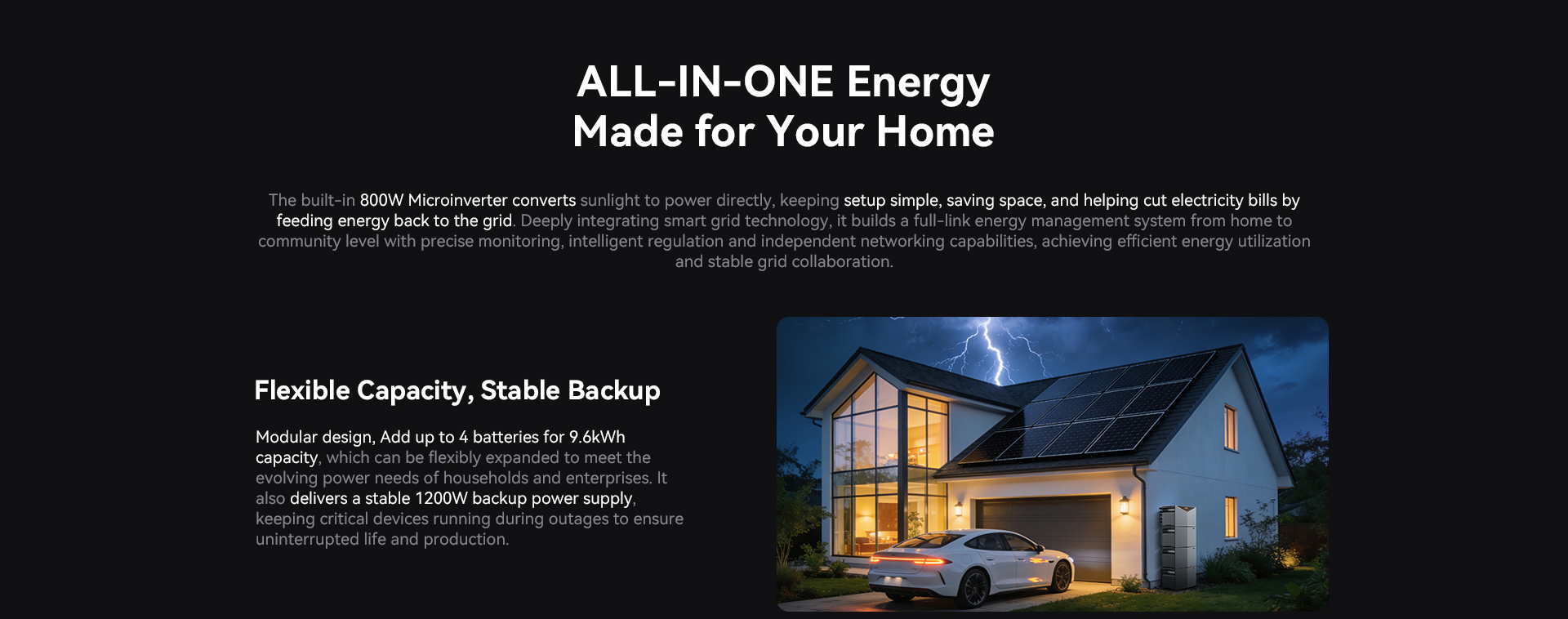

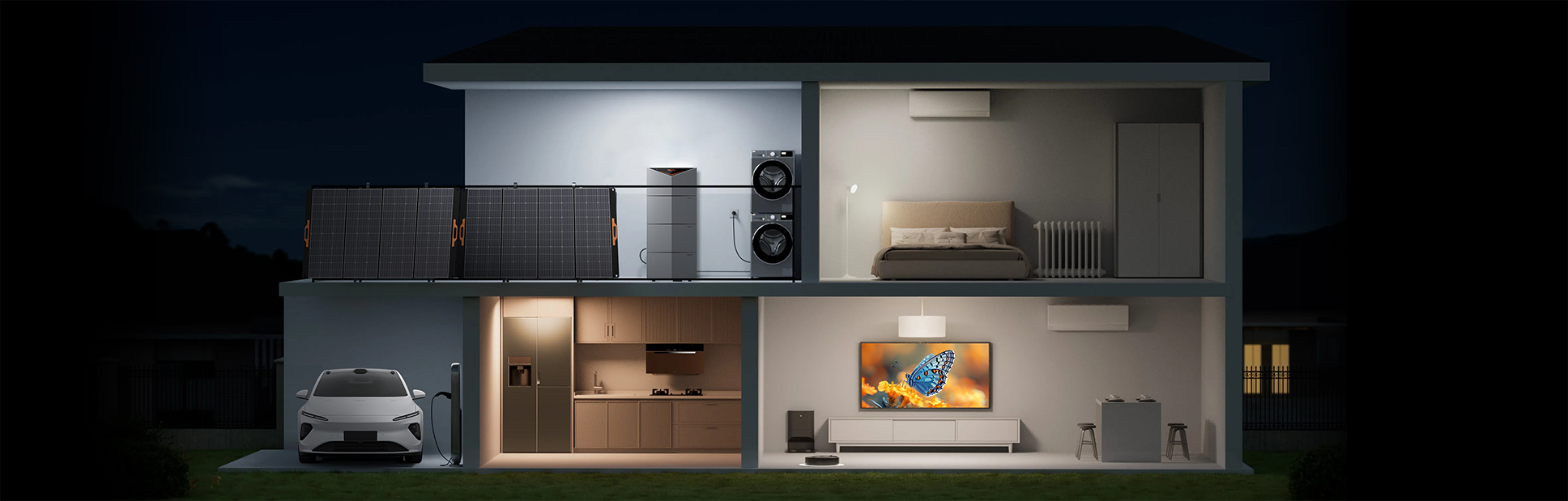

ALL-IN-ONE Energy
Made for Your Home
The built-in 800W Microinverter converts sunlight to power directly, keeping setup simple, saving space, and helping cut electricity bills by feeding energy back to the grid . Deeply integrating smart grid technology, it builds a full-link energy management system from home to community level with precise monitoring, intelligent regulation and independent networking capabilities, achieving efficient energy utilization and stable grid collaboration.
Flexible Capacity, Stable Backup
Modular design, Add up to 4 batteries for 9.6kWh capacity, which can be flexibly expanded to meet the evolving power needs of households and enterprises. It also delivers a stable 1200W backup power supply, keeping critical devices running during outages to ensure uninterrupted life and production.

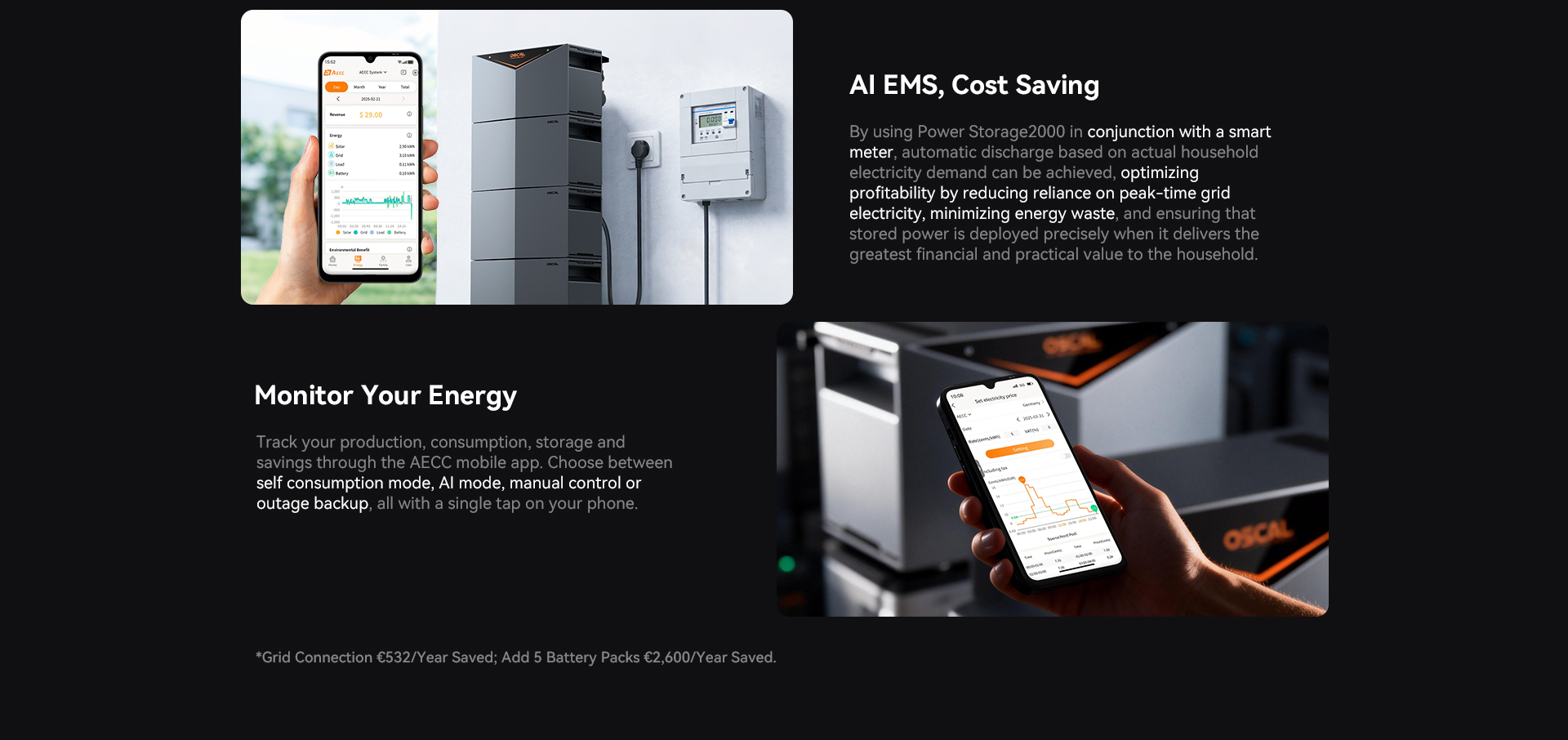

AI EMS, Cost Saving
By using Power Storage2000 in conjunction with a smart meter, automatic discharge based on actual household electricity demand can be achieved, optimizing profitability by reducing reliance on peak - time grid electricity, minimizing energy waste, and ensuring that stored power is deployed precisely when it delivers the greatest financial and practical value to the household.

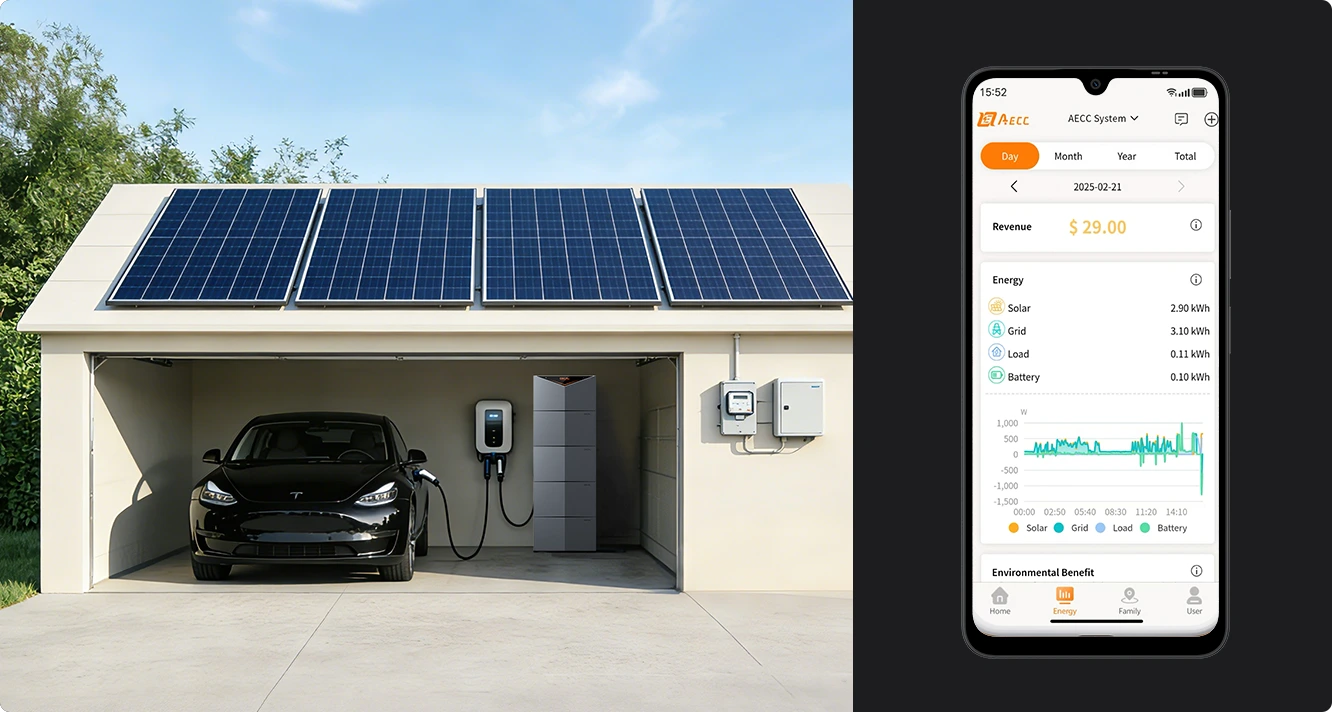

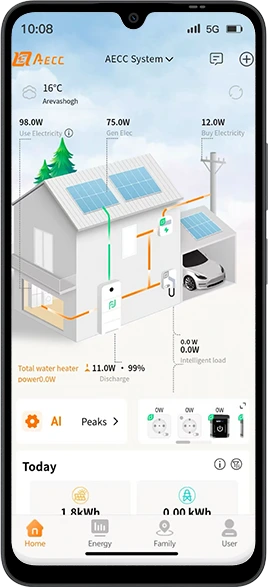

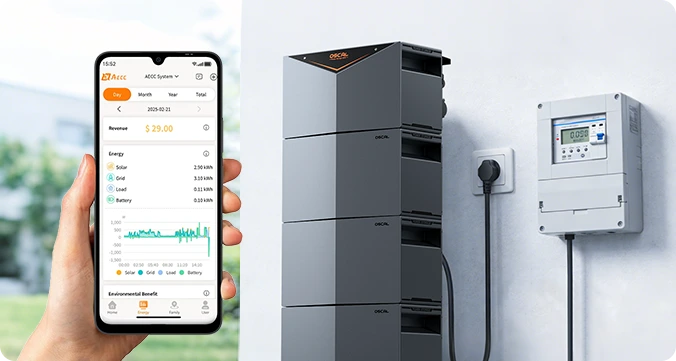

Monitor Your Energy
Track your production, consumption, storage and savings through the AECC mobile app. Choose between self consumption mode, AI mode, manual control or outage backup, all with a single tap on your phone.
*Grid Connection €532/Year Saved; Add 5 Battery Packs €2,600/Year Saved.
Mega Capacity, Robust Stable Output
OSCAL Power Storage 2000 features cableless modular stacking, expandable large capacity and 1200W stable output. Equipped with ergonomic handles, it allows easy capacity expansion from 1920Wh to 9600Wh without complex wiring. With 1200W stable backup power, it keeps essential devices like refrigerators, computers and WiFi routers running continuously during power outages, providing worry-free home power for both large-capacity off-grid living needs and emergency backup in case of sudden power cuts.

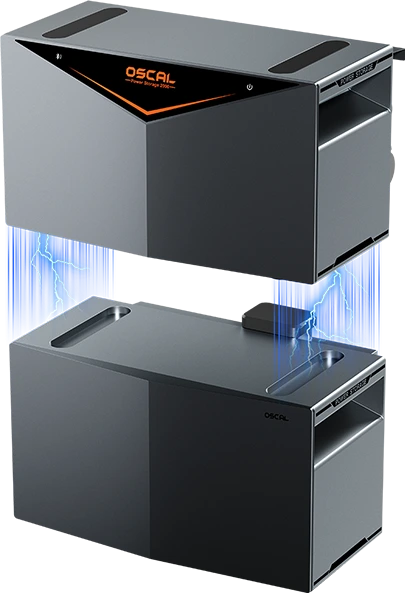

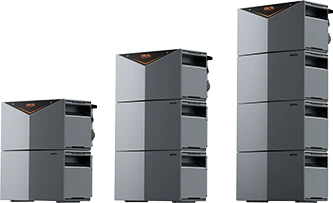

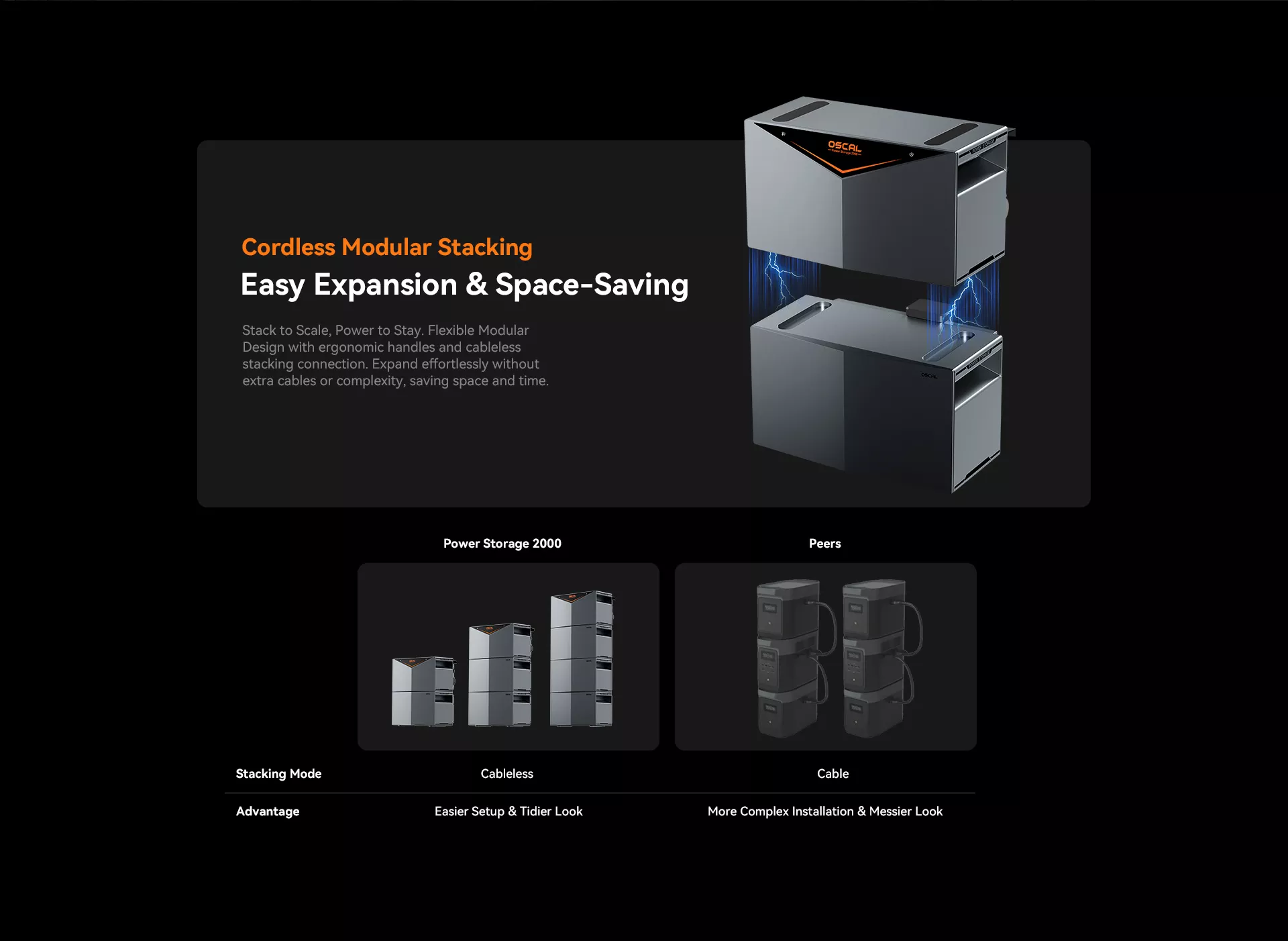

Cordless Modular Stacking
Easy Expansion & Space-Saving
Stack to Scale, Power to Stay. Flexible Modular Design with ergonomic handles and cableless stacking connection. Expand effortlessly without extra cables or complexity, saving space and time.
Power Storage 2000
Peers

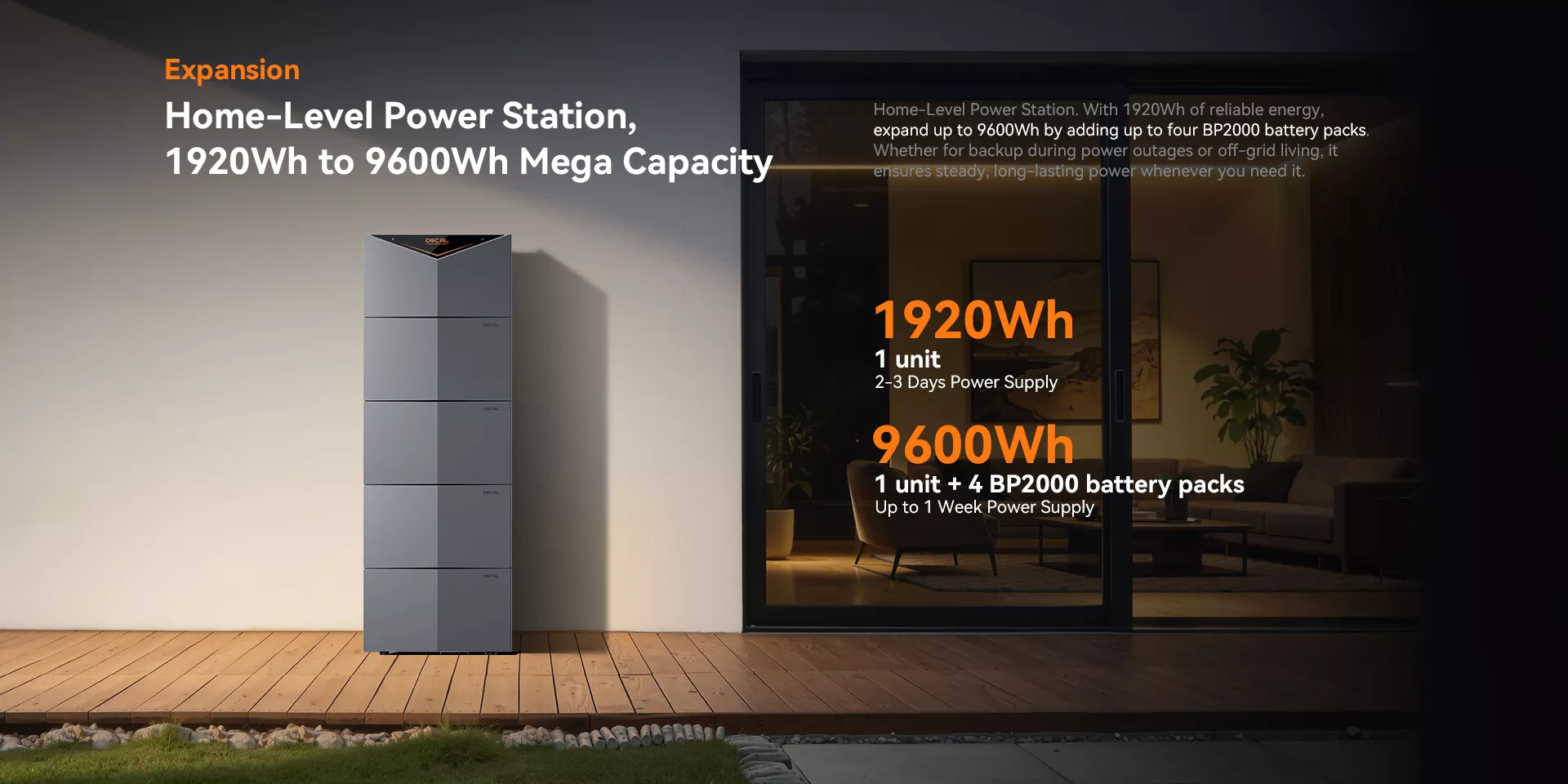

Expansion

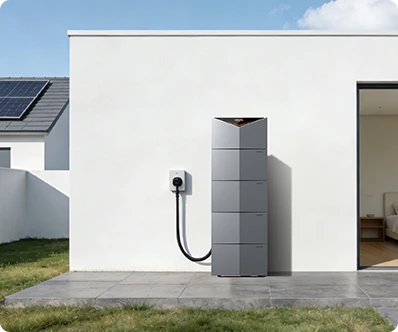

Home-Level Power Station,
1920Wh to 9600Wh Mega Capacity
Home-Level Power Station. With 1920Wh of reliable energy, expand up to 9600Wh by adding up to four BP2000 battery packs. Whether for backup during power outages or off-grid living, it ensures steady, long-lasting power whenever you need it.
1920Wh
1 unit
2-3 Days Power Supply
9600Wh
1 unit + 4 BP2000 battery packs
Up to 1 Week Power Supply

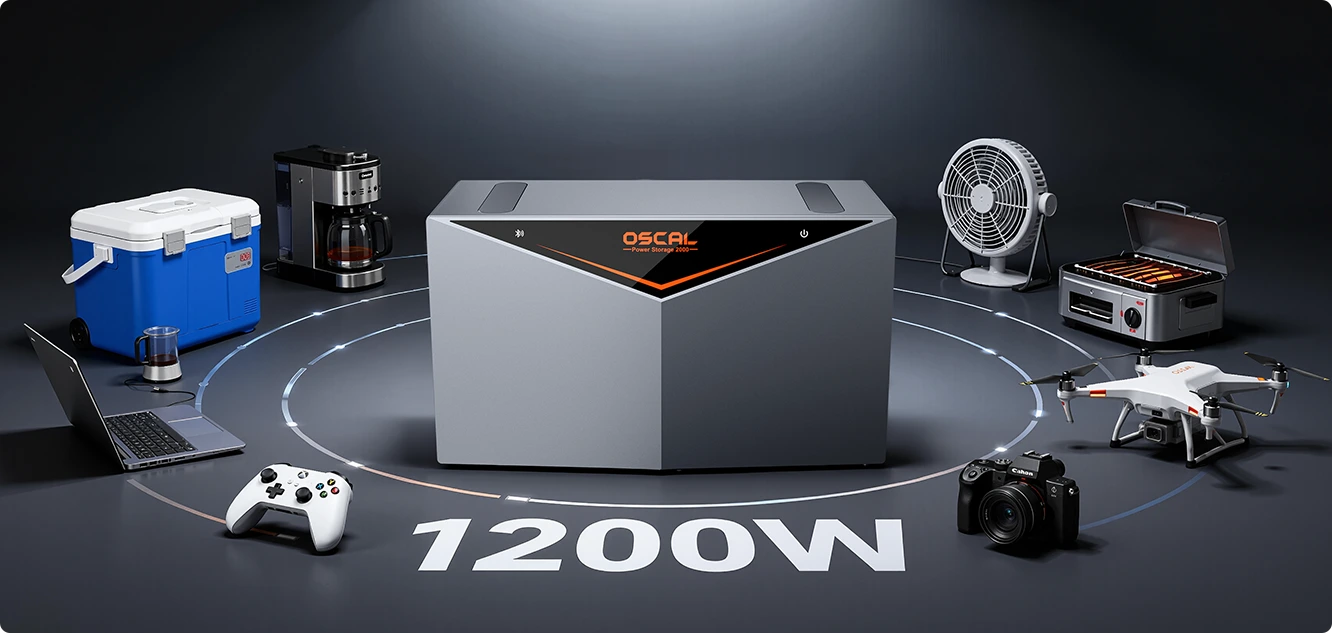

Output

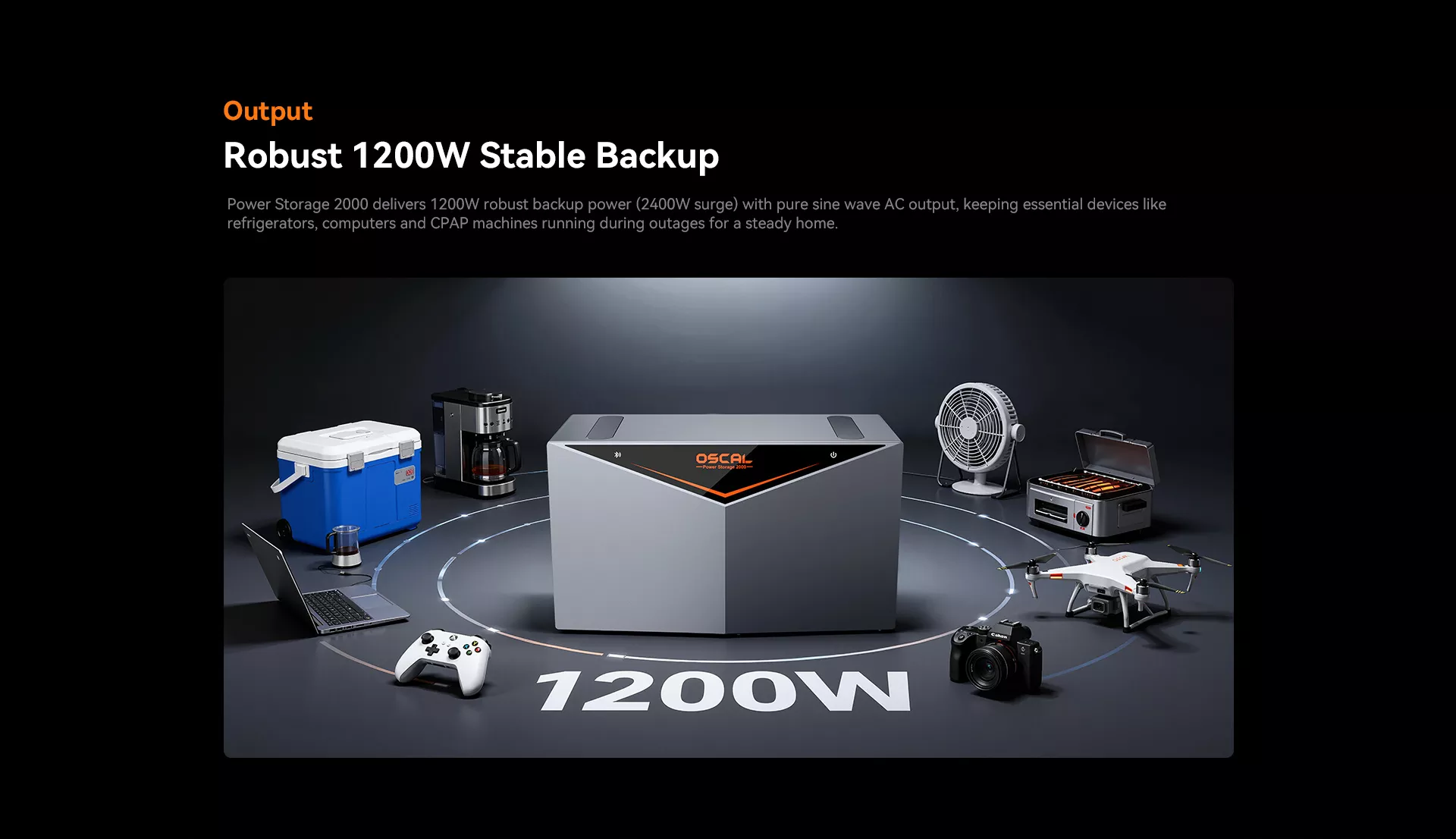

Robust 1200W Stable Backup
Power Storage 2000 delivers 1200W robust backup power (2400W surge) with pure sine wave AC output, keeping essential devices like refrigerators, computers and CPAP machines running during outages for a steady home.

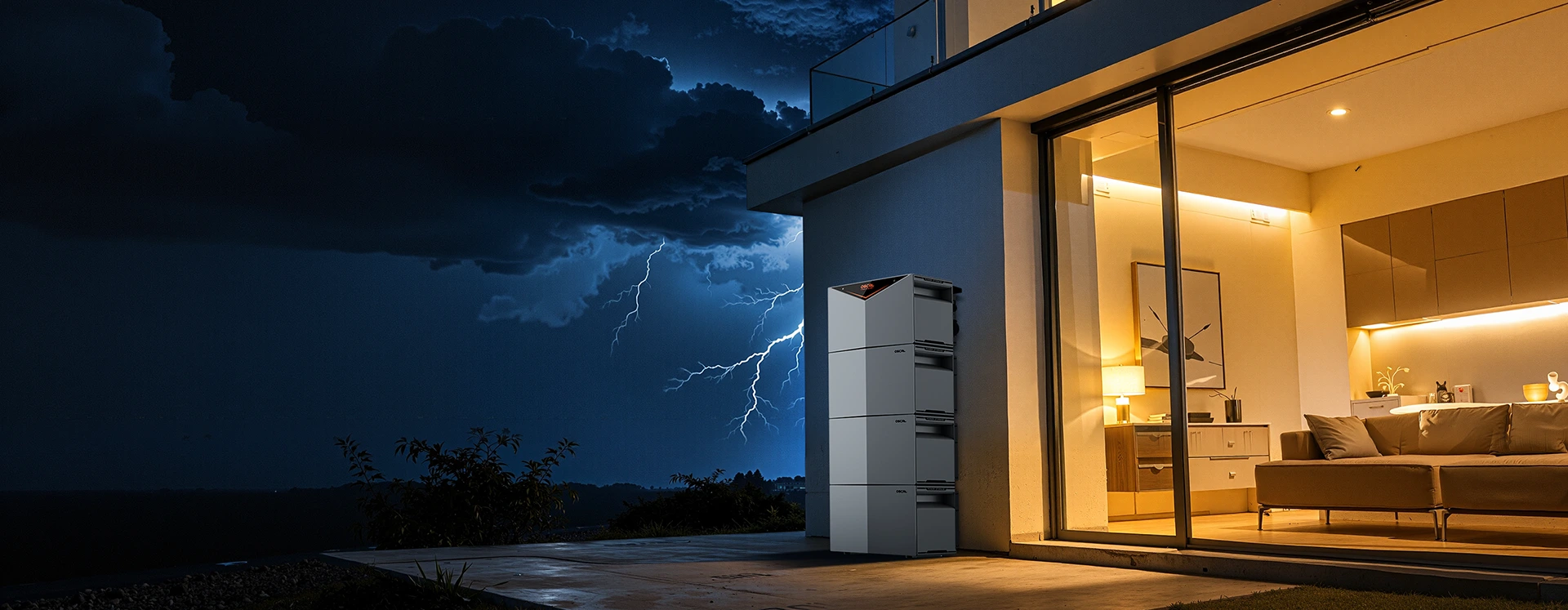

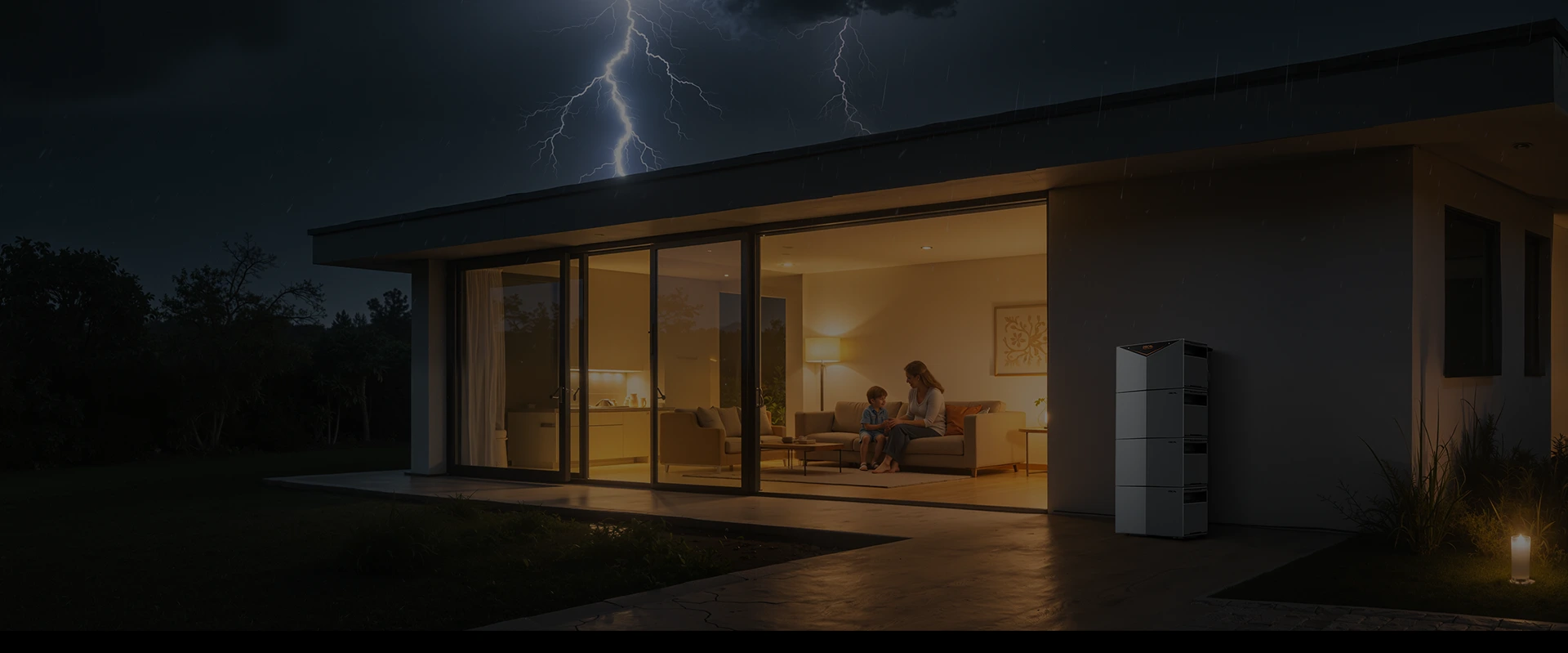

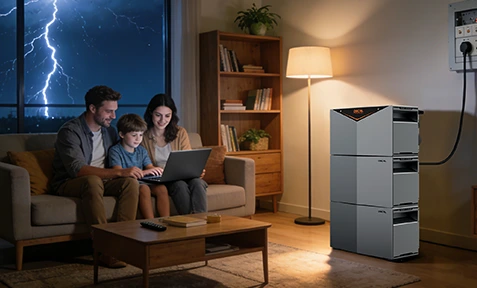

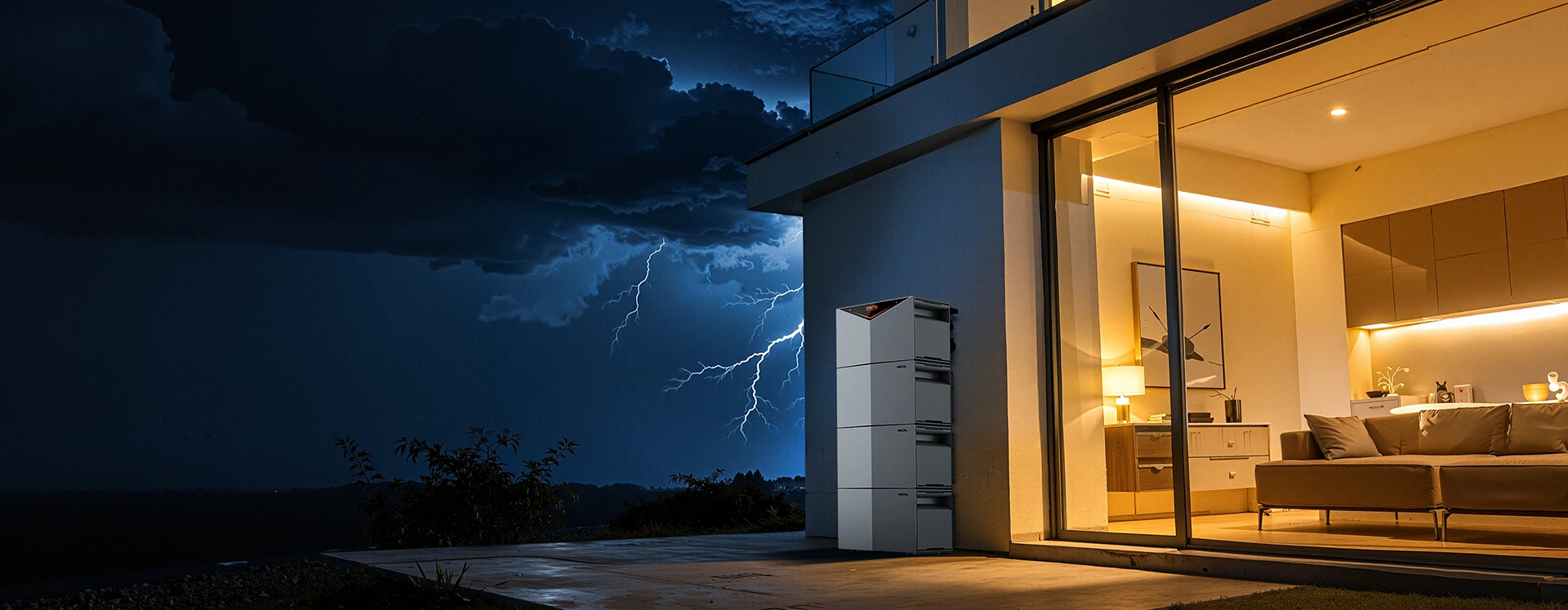

Home Backup Power
Zero Interruption During Outages
Relying on two versatile ports flexible switching and UPS automatic switching core technologies, it achieves seamless connection between on-grid and off-grid modes,providing 0.01s ultra-fast power supply in emergency scenarios such as power outages or disasters, fully ensuring continuous power supply for core home devices and eliminating backup power anxiety

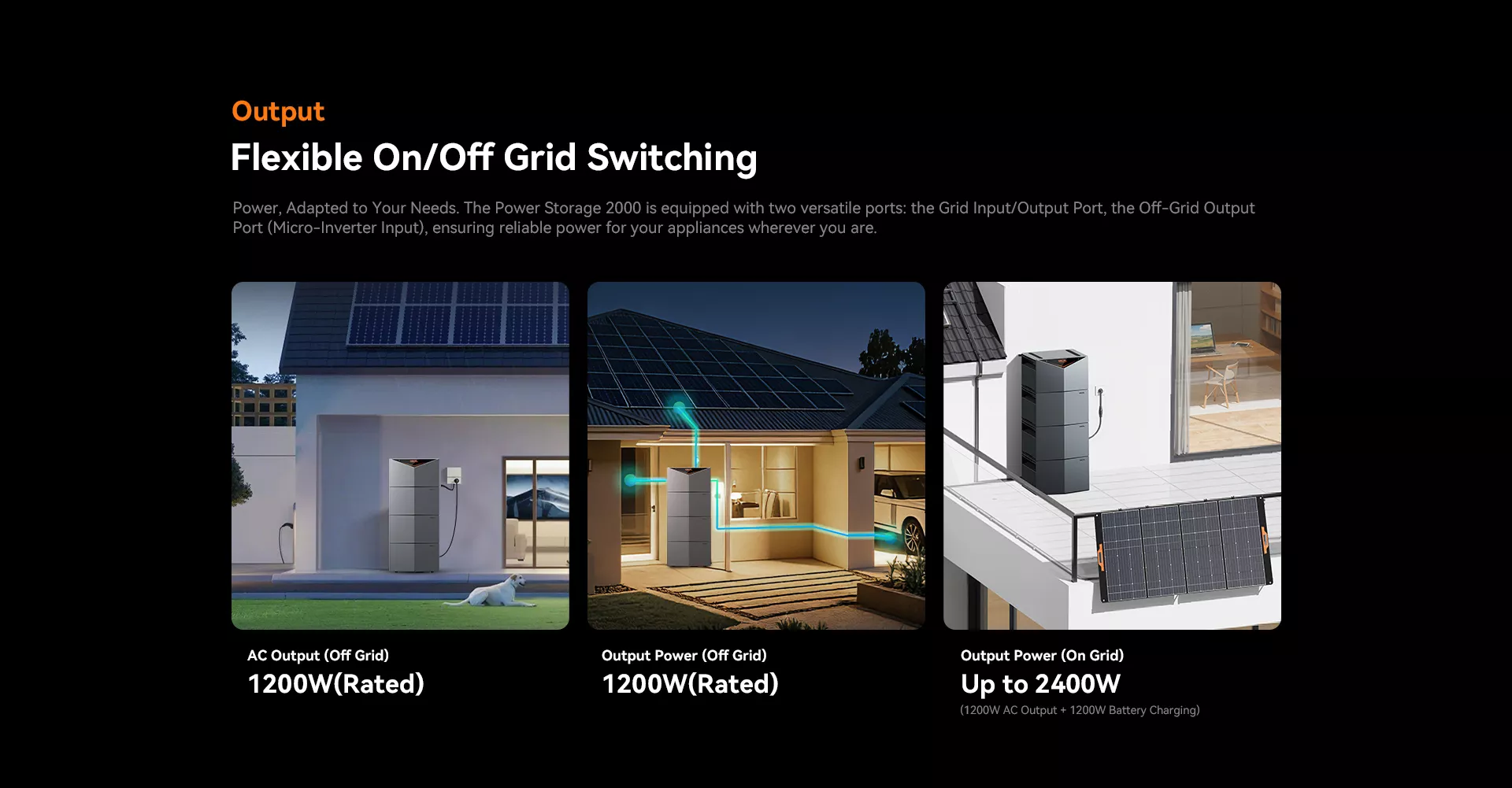

Output
Flexible On/Off Grid Switching
Power, Adapted to Your Needs. The Power Storage 2000 is equipped with two versatile ports: the Grid Input/Output Port, the Off-Grid Output Port (Micro-Inverter Input), ensuring reliable power for your appliances wherever you are.
AC Output (Off Grid)
1200W(Rated)
Output Power (Off Grid)
1200W(Rated)
Output Power (On Grid)
Up to 2400W
(1200W AC Output + 1200W Battery Charging)

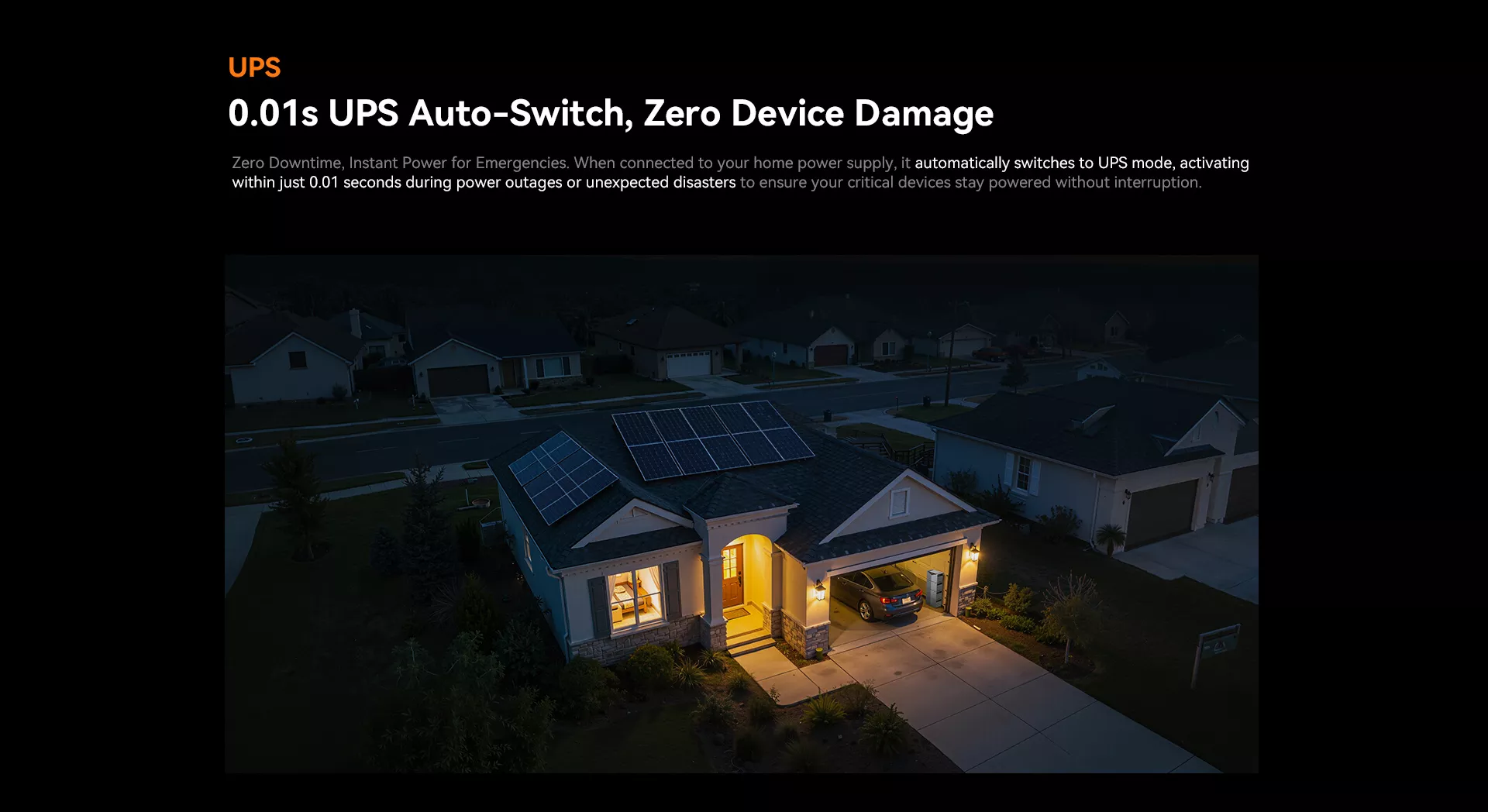

UPS
0.01s UPS Auto-Switch, Zero Device Damage
Zero Downtime, Instant Power for Emergencies. When connected to your home power supply, it automatically switches to UPS mode, activating within just 0.01 seconds during power outages or unexpected disasters to ensure your critical devices stay powered without interruption.
Ready for All Scenarios
Home Appliance & Emergency Power
Not only effortlessly powers daily appliances like rice cookers and coffee makers for flexible cooking, cleaning, and entertainment; but also seamlessly backs you up during power outages, delivering long-lasting runtime for fridges, CPAP machines, and WiFi routers. It fully covers emergency heating, lighting, and communication needs—one device for both daily family use and unexpected situations!
Daily Home Use
Supports daily cooking, cleaning, and entertainment for a more convenient life.
Rice Cooker(1000W)
1.8Hours
Microwave Oven(800W)
2.2Hours
Coffee Maker(1000W)
1.8Hours
Stand Mixer(600W)
3Hours
50-inch TV(110W)
15.7Hours
Vacuum Cleaner(500W)
3.6Hours
Blender(300W)
5.8Hours
Window Air Conditioner(600W)
3Hours
Emergency Backup
Ensures continuous operation of critical devices during power outages for home safety.
CPAP(40W)
44.4Hours
Fridge(0.7kWh/24H)
61Hours
WiFi Router(15W)
119.6Hours
Phone(11Wh)
169 Times
Laptop(60Wh)
31 Times
Floor Lamp(20W)
88.8Hours
Heater(1000W)
1.8Hours
Window Air Conditioner(600W)
3Hours
Save Up to
€2600/Year
Equipped with 2400W efficient PV input and 99% PV panel compatibility, combined with 0 feed-in design and industry-rare 3-in-1 system, it can save up to €2600 in electricity bills annually and effectively reduce carbon emissions, balancing economy and environmental protection

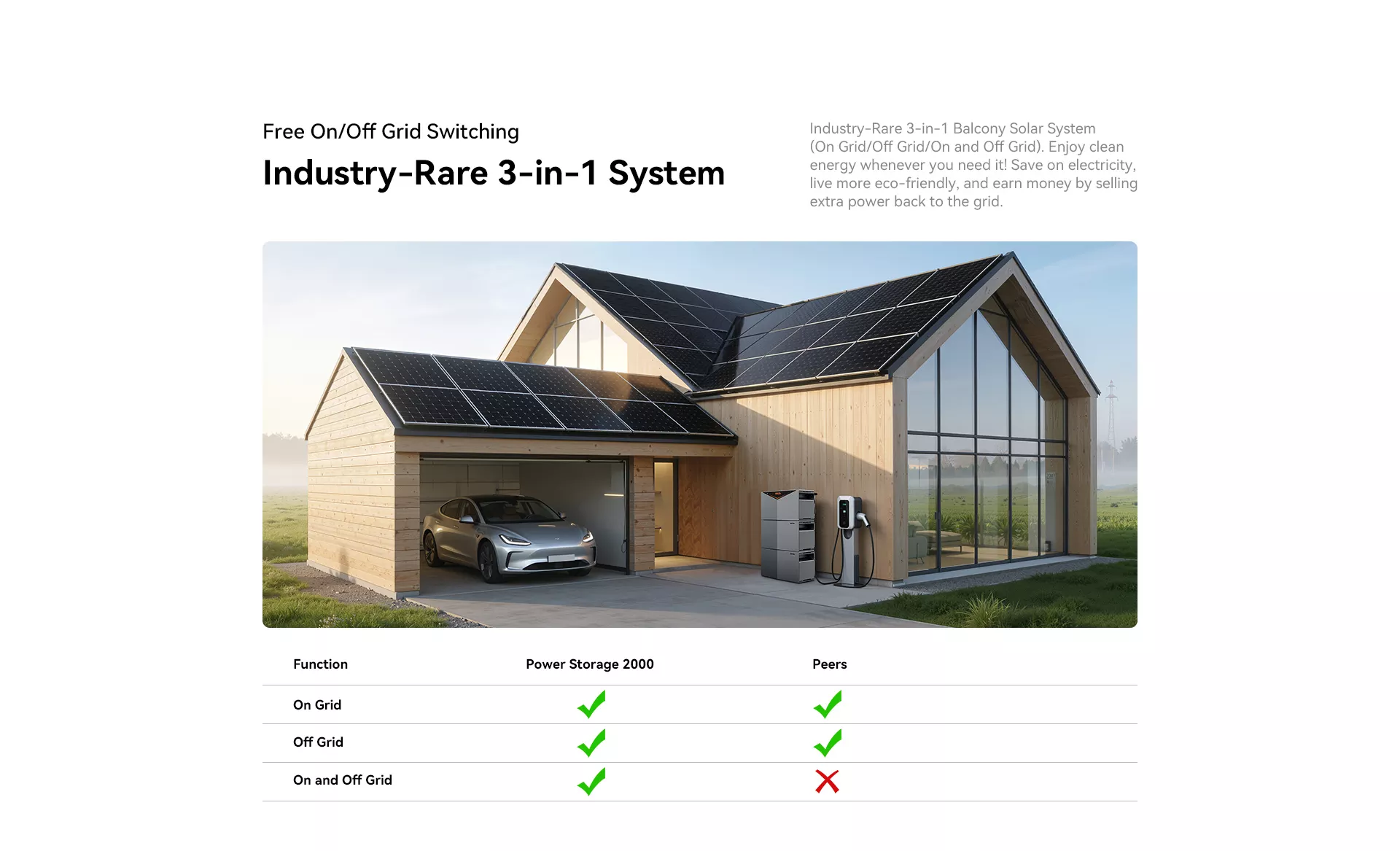

Free On/Off Grid Switching
Industry-Rare 3-in-1 System
Industry-Rare 3-in-1 Balcony Solar System (On Grid/Off Grid/On and Off Grid). Enjoy clean energy whenever you need it! Save on electricity, live more eco-friendly, and earn money by selling extra power back to the grid.

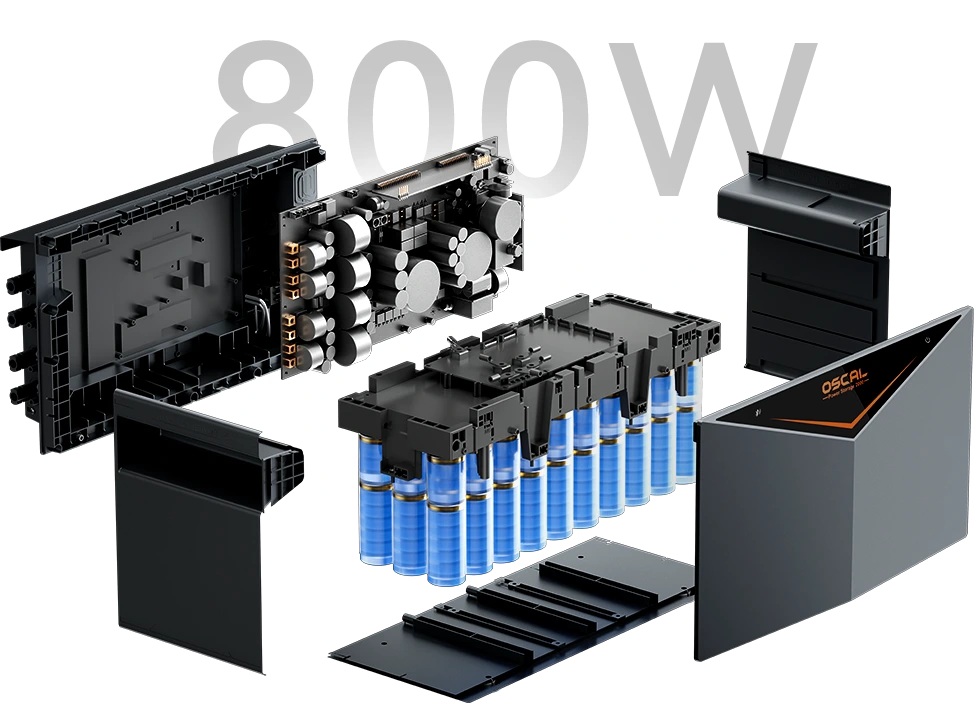

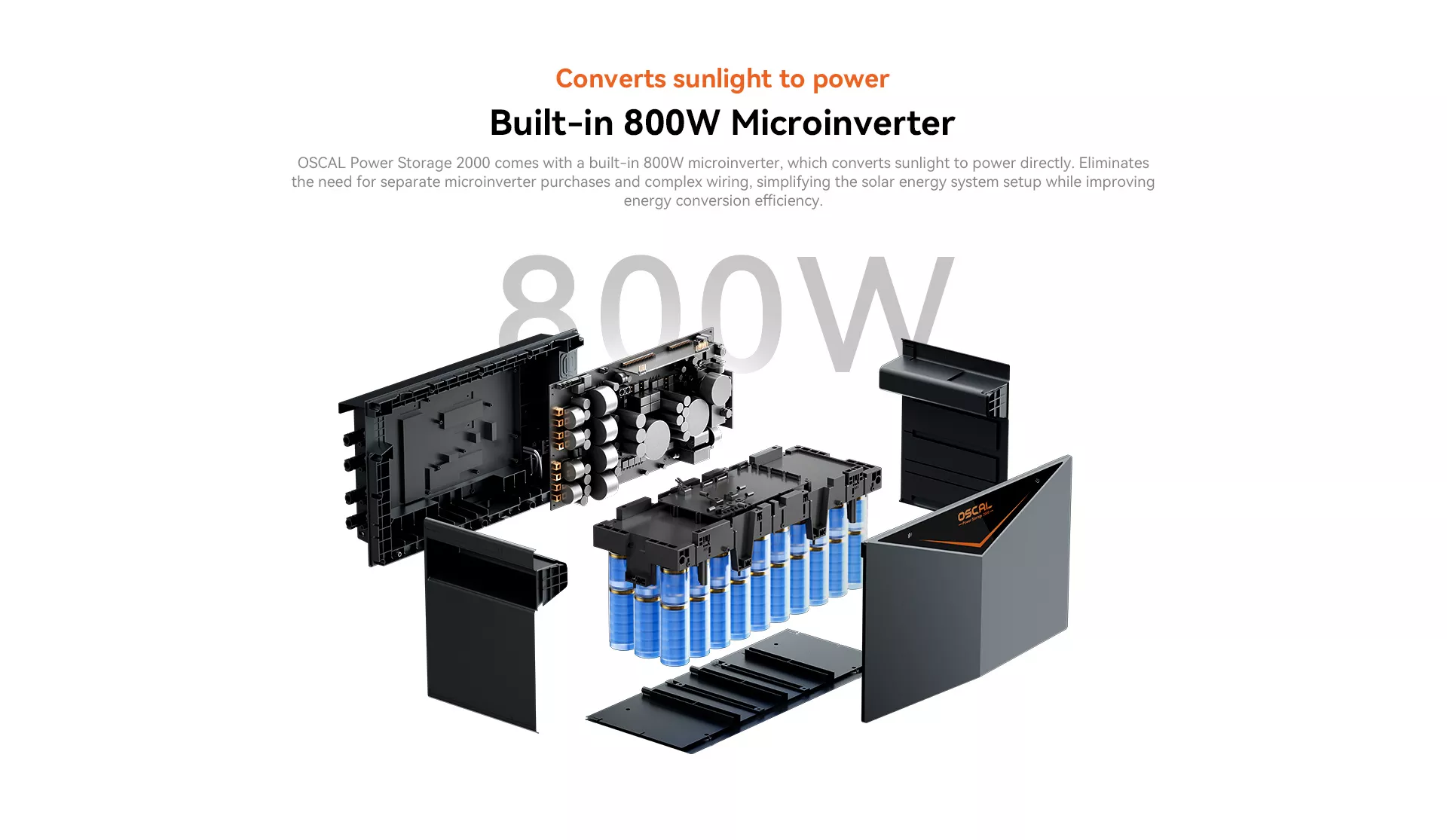

Converts sunlight to power
Built-in 800W Microinverter
OSCAL Power Storage 2000 comes with a built-in 800W microinverter, which converts sunlight to power directly. Eliminates the need for separate microinverter purchases and complex wiring, simplifying the solar energy system setup while improving energy conversion efficiency.

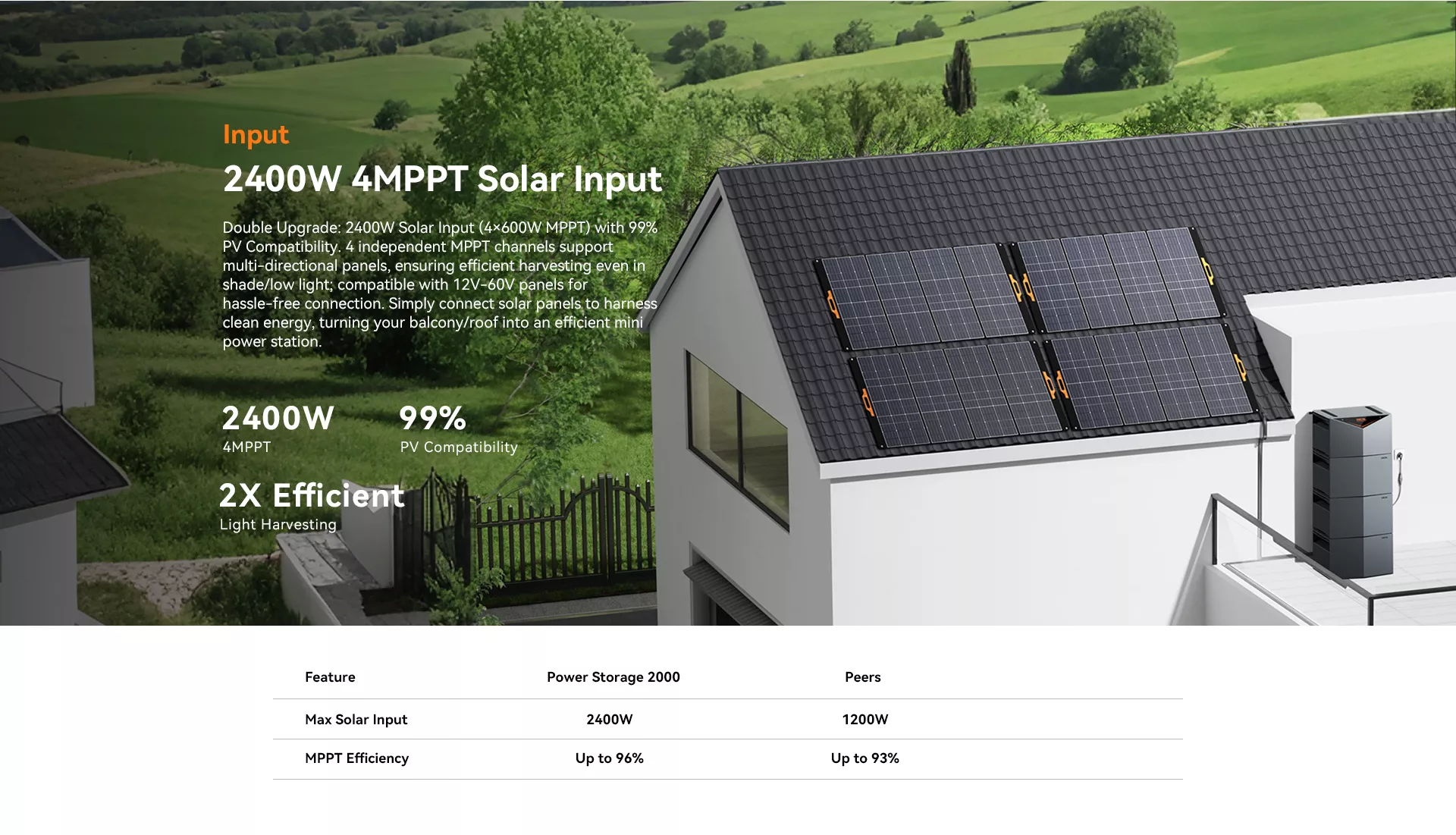

Input
2400W 4MPPT Solar Input
Double Upgrade: 2400W Solar Input (4×600W MPPT) with 99% PV Compatibility. 4 independent MPPT channels support multi-directional panels, ensuring efficient harvesting even in shade/low light; compatible with 12V-60V panels for hassle-free connection. Simply connect solar panels to harness clean energy, turning your balcony/roof into an efficient mini power station.
2400W
4MPPT
99%
PV Compatibility
2X Efficient
Light Harvesting
Saving

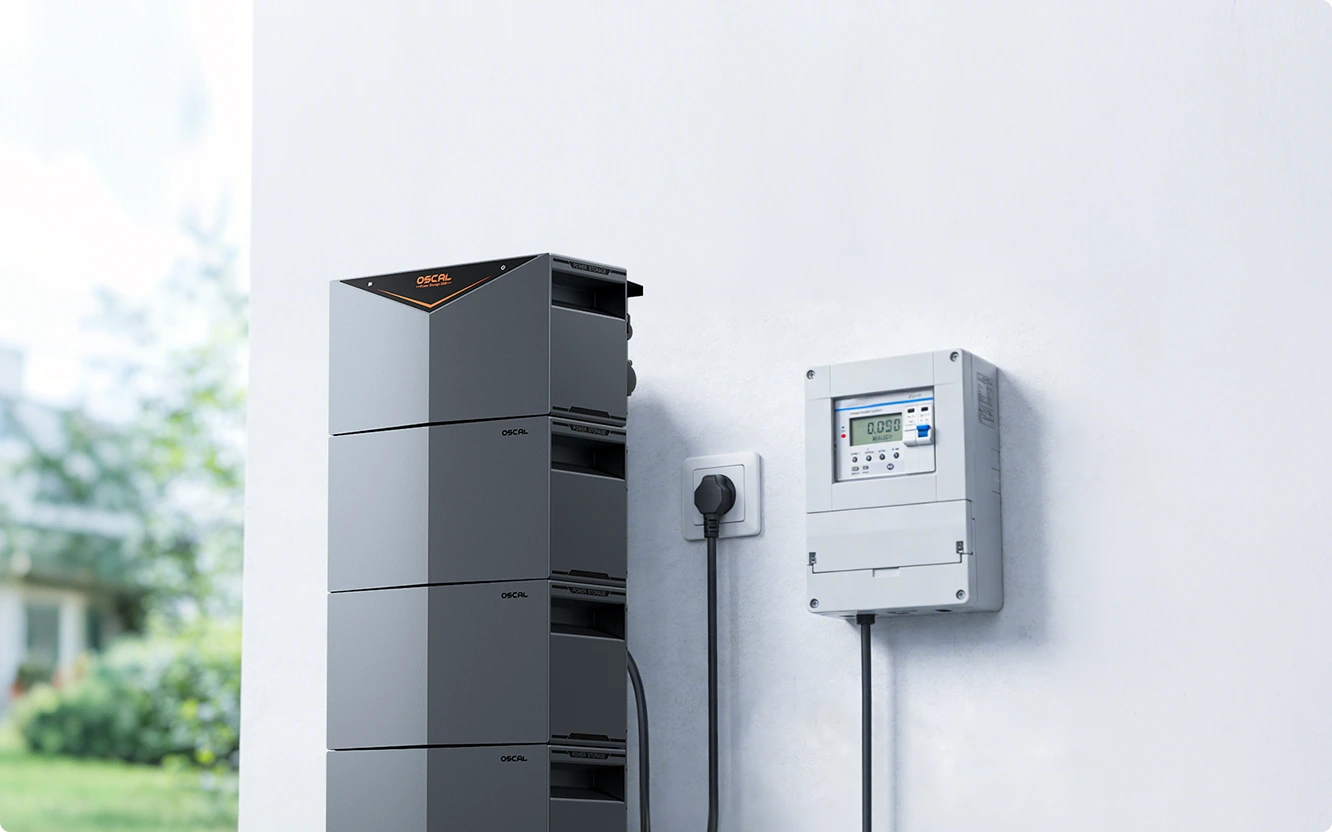

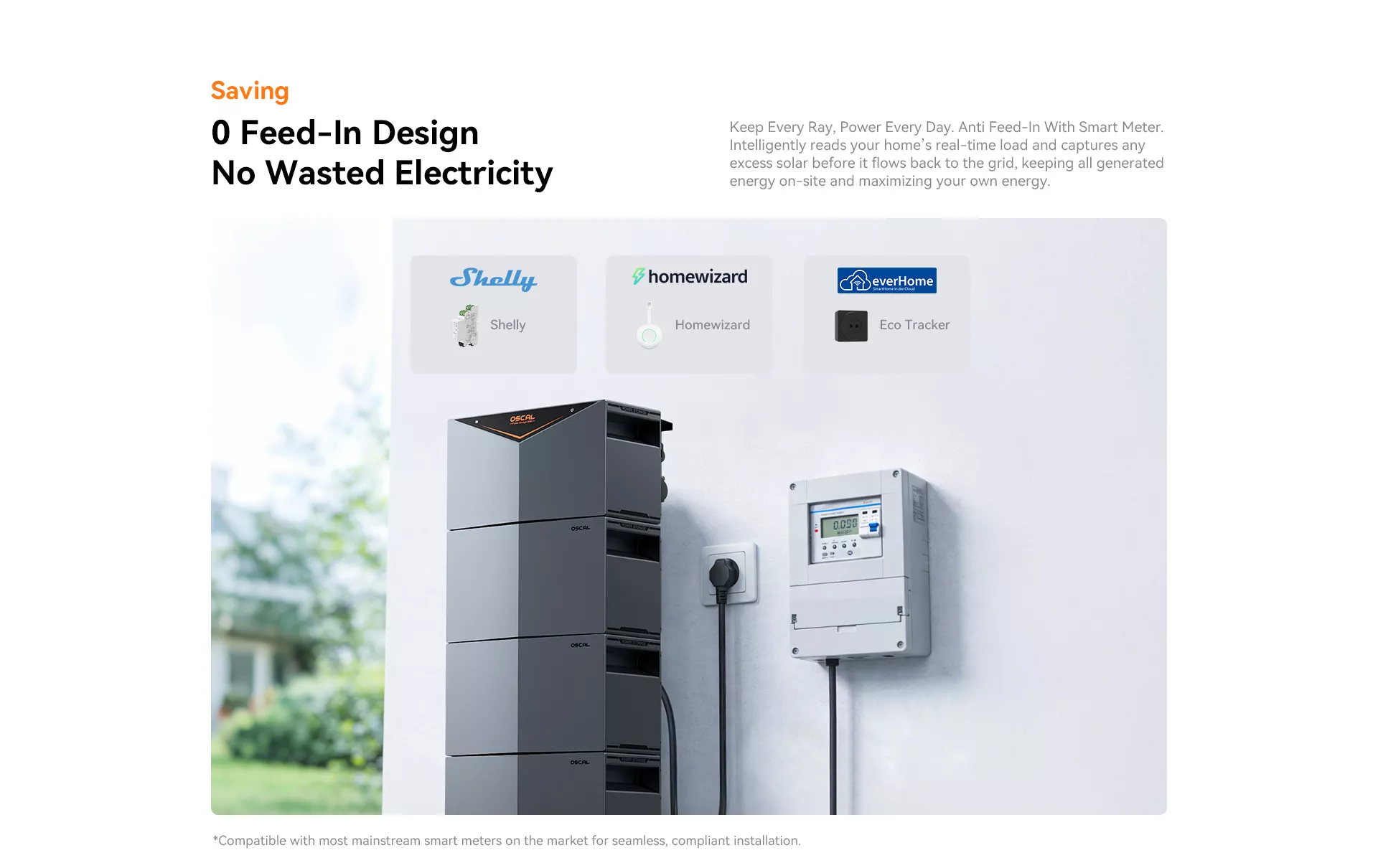

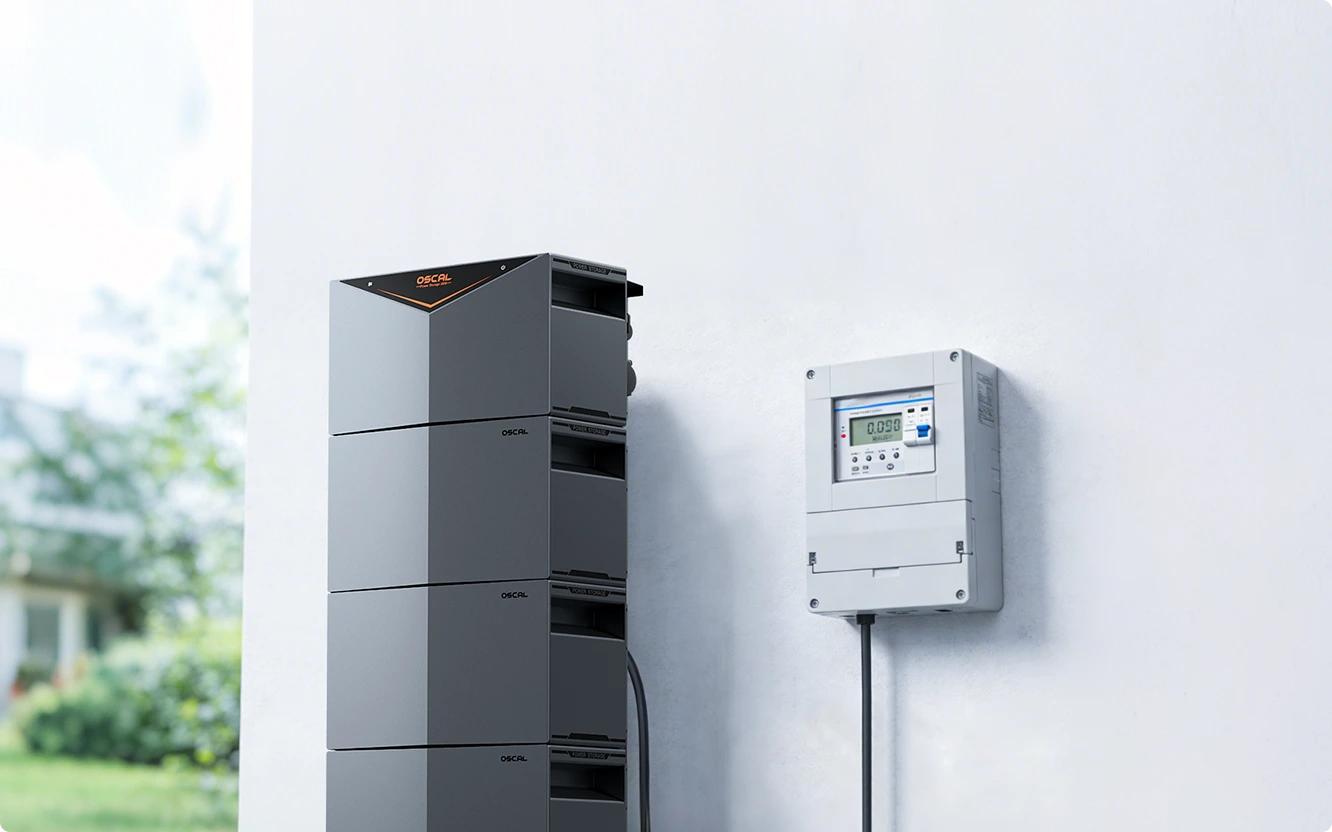

0 Feed-In Design
No Wasted Electricity
Keep Every Ray, Power Every Day. Anti Feed-In With Smart Meter. Intelligently reads your home's real-time load and captures any excess solar before it flows back to the grid, keeping all generated energy on-site and maximizing your own energy.
Shelly
Homewizard
Eco Tracker
*Compatible with most mainstream smart meters on the market for seamless, compliant installation.

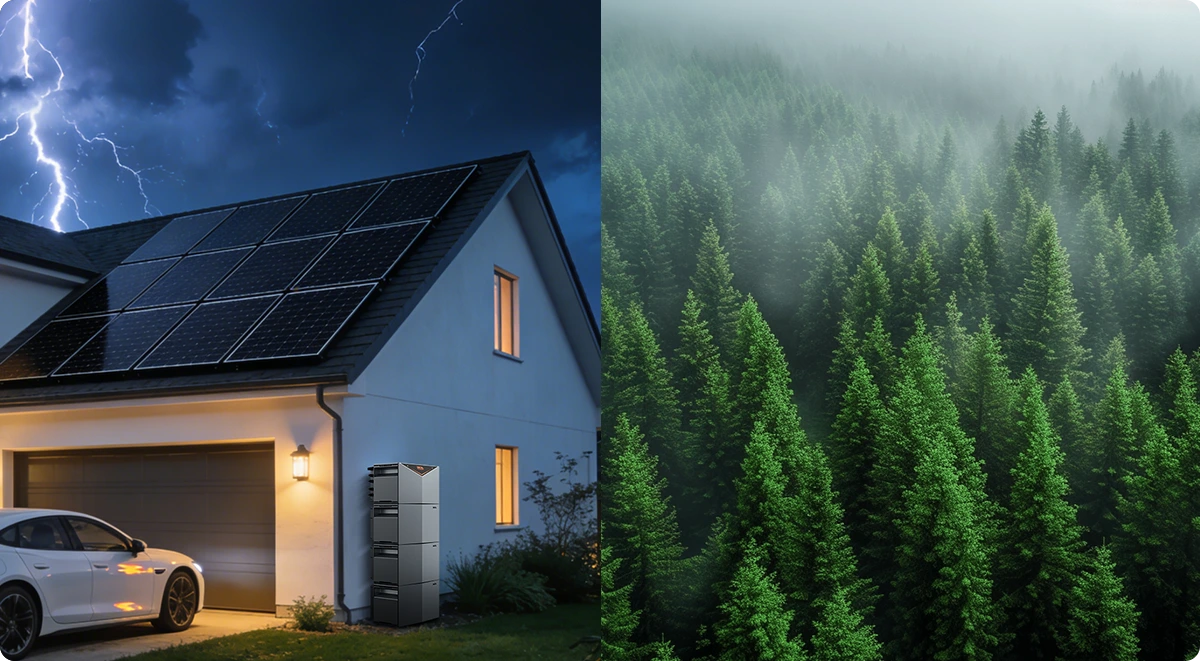

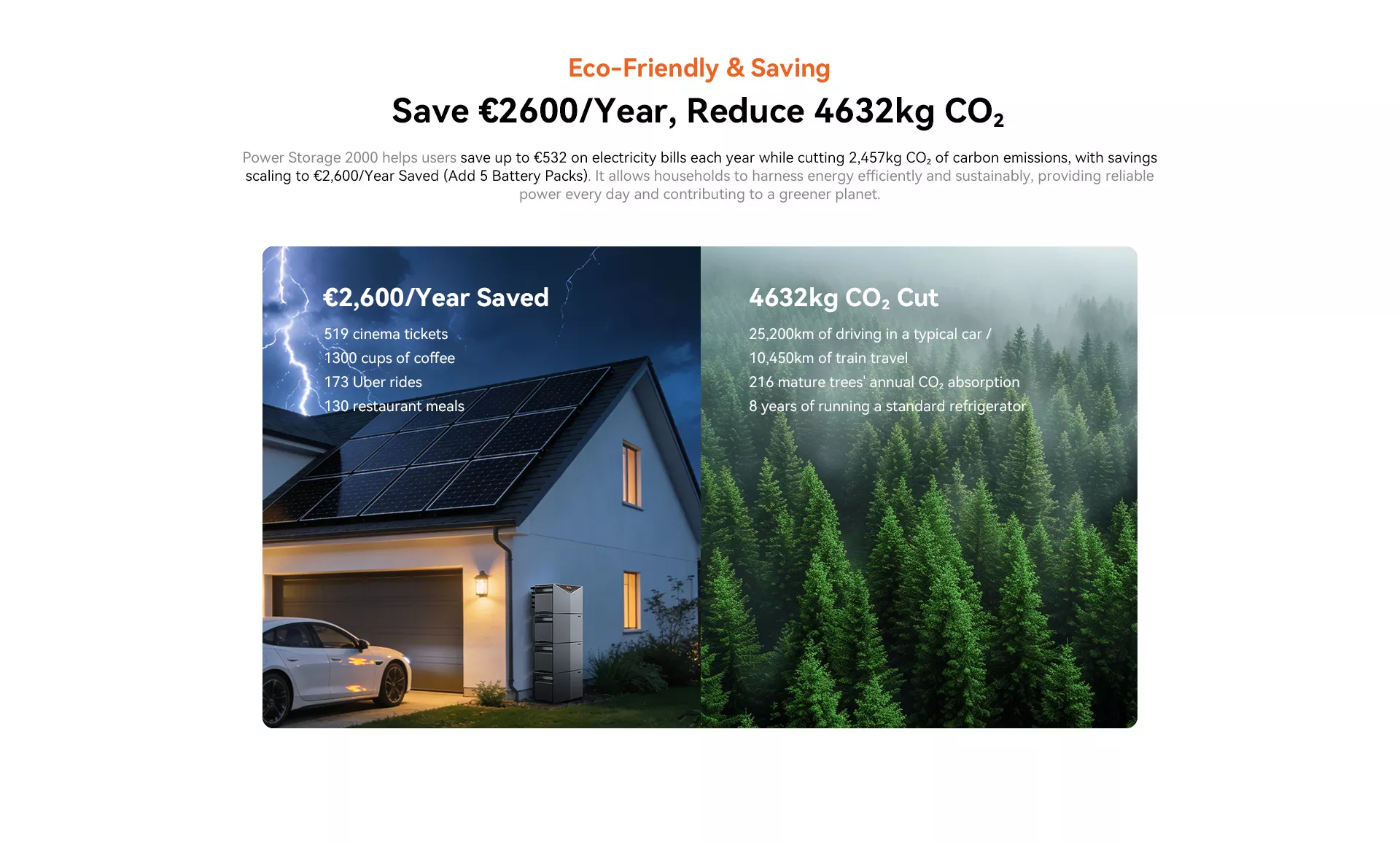

Eco-Friendly & Saving
Save €2600/Year, Reduce 4632kg CO₂
Power Storage 2000 helps users save up to €532 on electricity bills each year while cutting 2,457kg CO₂ of carbon emissions, with savings scaling to €2,600/Year Saved (Add 5 Battery Packs). It allows households to harness energy efficiently and sustainably, providing reliable power every day and contributing to a greener planet.
€2,600/Year Saved
519 cinema tickets
1300 cups of coffee
173 Uber rides
130 restaurant meals
4632kg CO₂ Cut
25,200km of driving in a typical car /
10,450km of train travel
216 mature trees' annual CO₂ absorption
8 years of running a standard refrigerator
AI-Powered Control, Effortless Savings
Supports bidirectional charging & discharging and AI TOU peak-valley tariff optimization , adapts to all-scene weather, and is equipped with wireless APP remote control and clear LED display for worry-free and efficient energy management

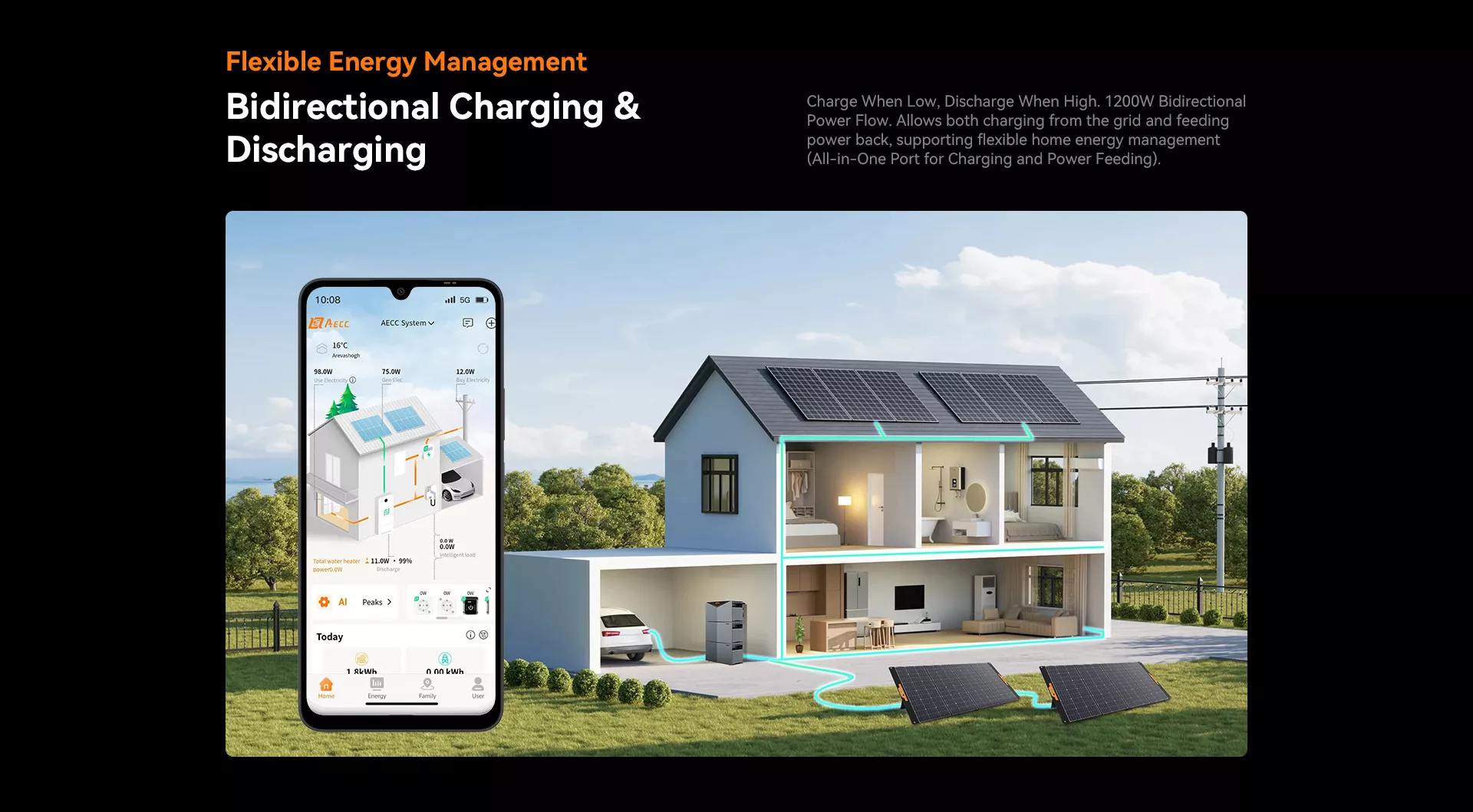

Flexible Energy Management
Bidirectional Charging &
Discharging
Charge When Low, Discharge When High. 1200W Bidirectional Power Flow. Allows both charging from the grid and feeding power back, supporting flexible home energy management (All-in-One Port for Charging and Power Feeding).

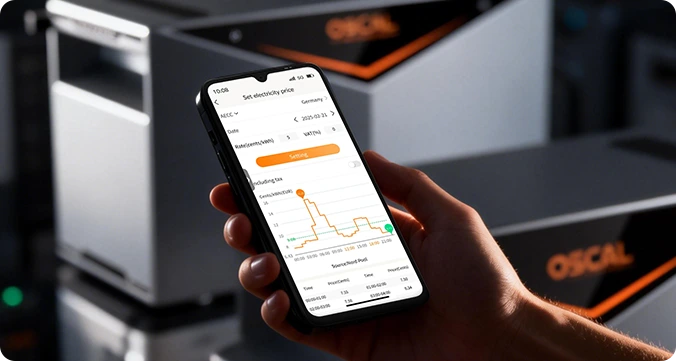

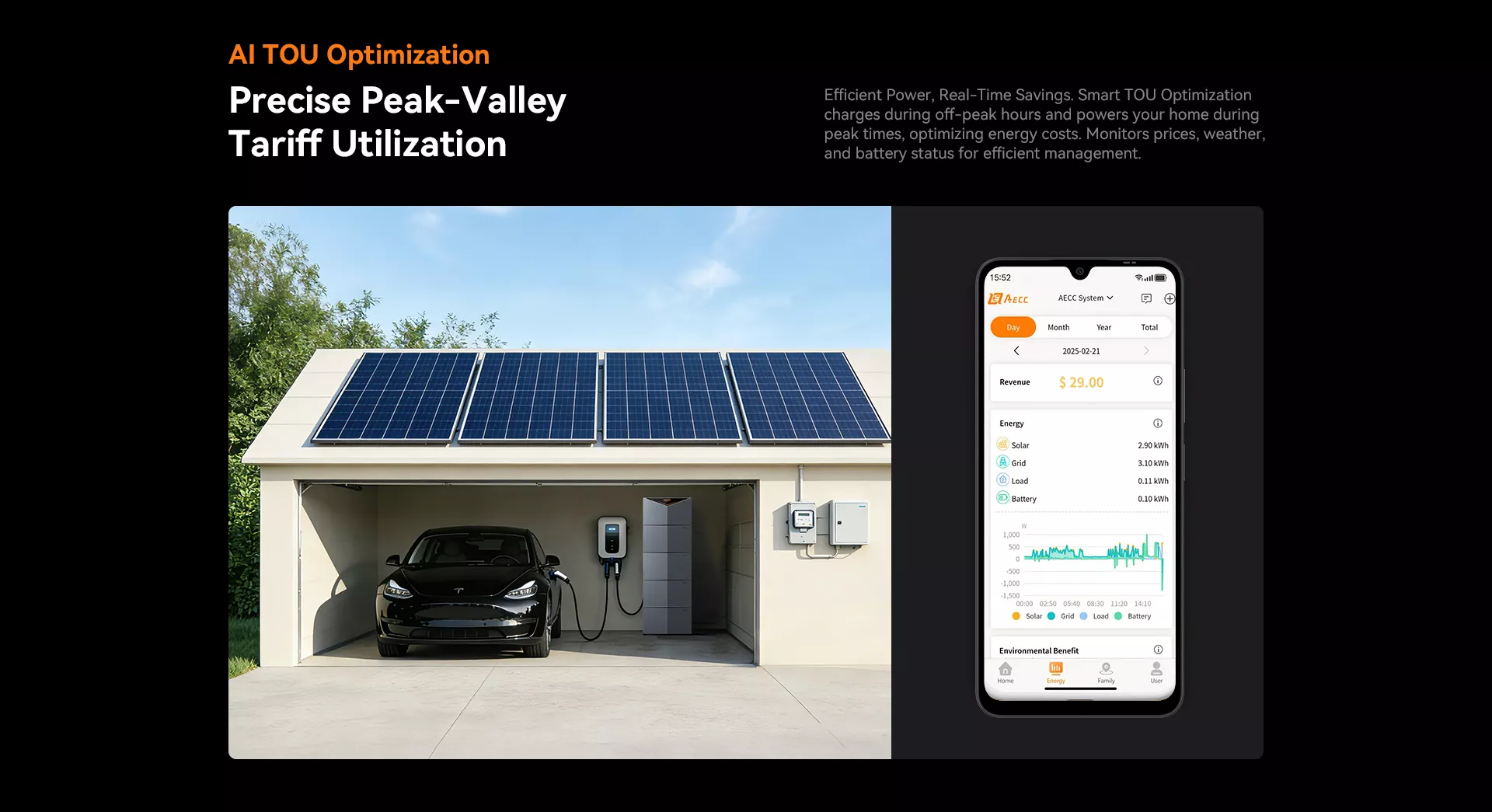

AI TOU Optimization
Precise Peak-Valley
Tariff Utilization
Efficient Power, Real-Time Savings. Smart TOU Optimization charges during off-peak hours and powers your home during peak times, optimizing energy costs. Monitors prices, weather, and battery status for efficient management.
Al-Driven Analysis & Control
Real-time Electricity Tariffs (TOU) Weather Forecasts Reduced Electricity Bills Increased SolarSelf-Consumption User Consumption Patterns Battery State of Charge (SOC) Extended Battery Lifespan Feed-in Requlation Compliance Smarter Energy Experience
All-Weather Adaptation,
Year-Round Savings
It adapts to all scenarios seamlessly:Sunny days maximize solar harvest and store surplus energy; Cloudy days charge at low grid prices and discharge at peak times for cost efficiency; Winter prevents battery discharge below optimal levels to protect battery health.
Supported Energy Suppliers
The AI TOU optimization function is compatible with mainstream energy suppliers such as NORD POOL, Tibber, and octopus energy, enabling smooth connection with existing energy systems for more convenient and efficient energy management.

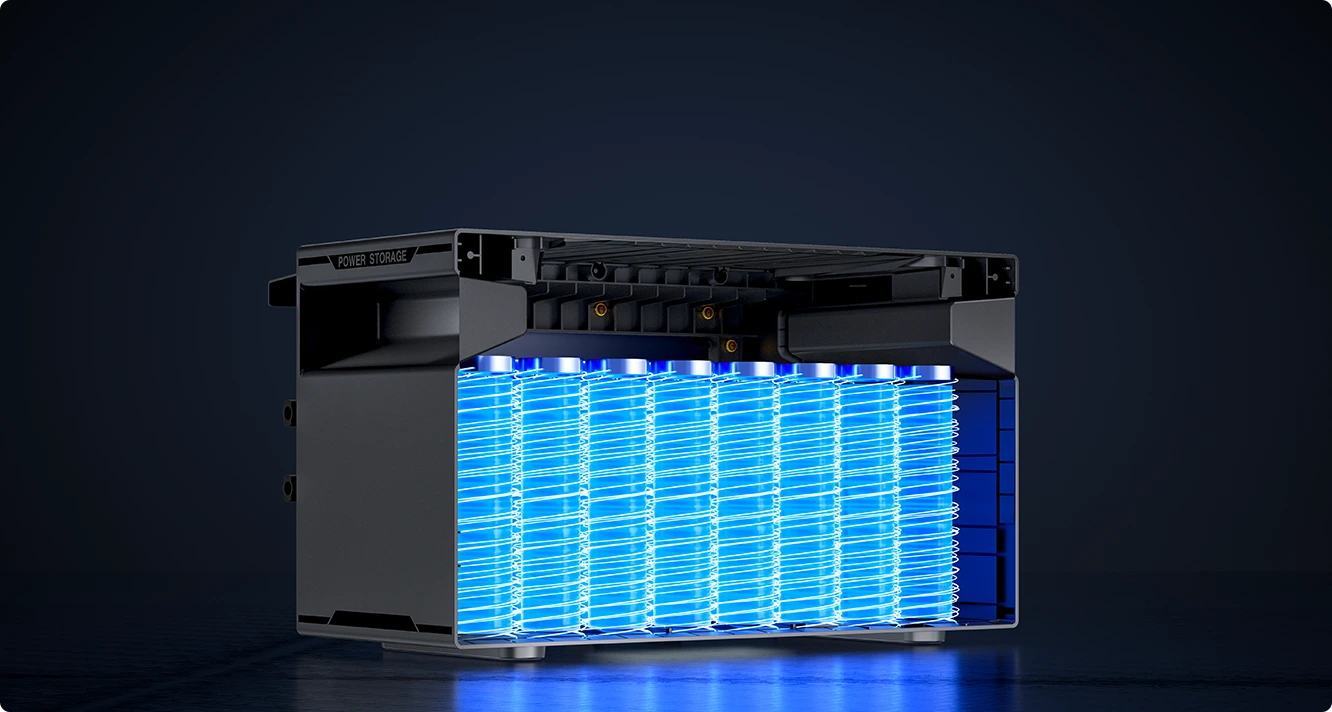

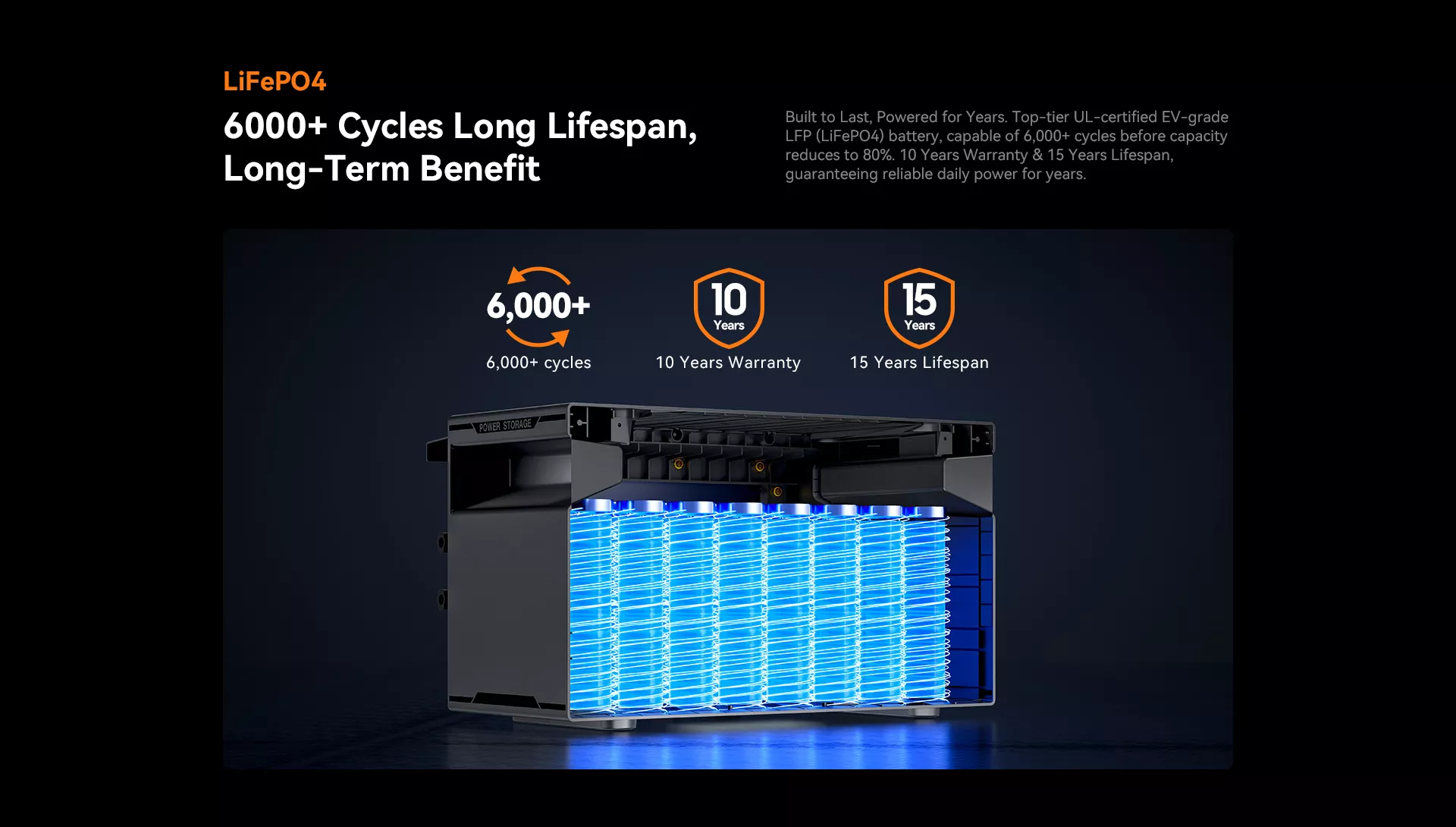

LiFePO4
6000+ Cycles Long Lifespan,
Long-Term Benefit
Built to Last, Powered for Years. Top-tier UL-certified EV-grade LFP (LiFePO4) battery, capable of 6,000+ cycles before capacity reduces to 80%. 10 Years Warranty & 15 Years Lifespan, guaranteeing reliable daily power for years.
6,000+ cycles
10 Years Warranty
15 Years Lifespan

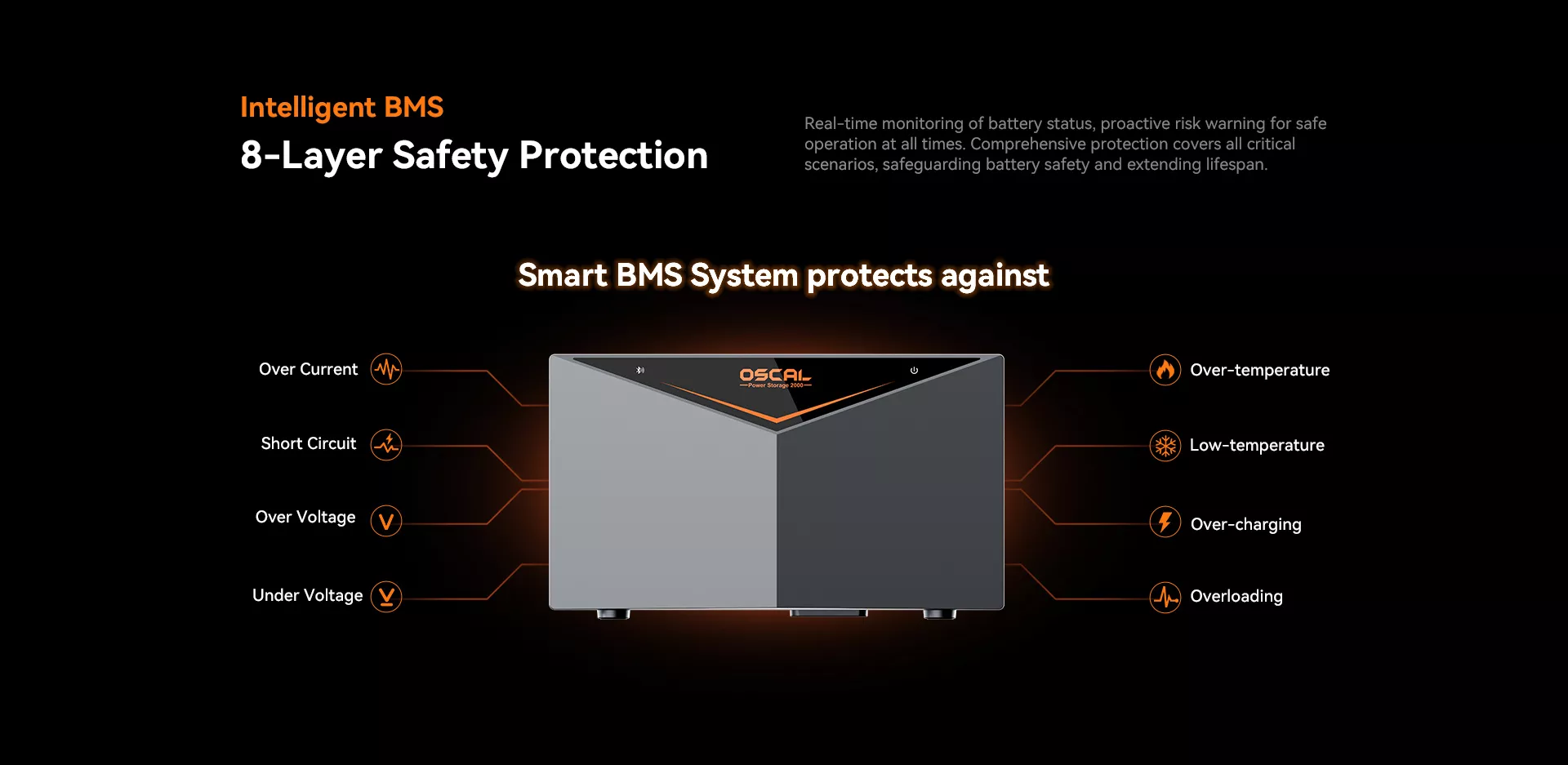

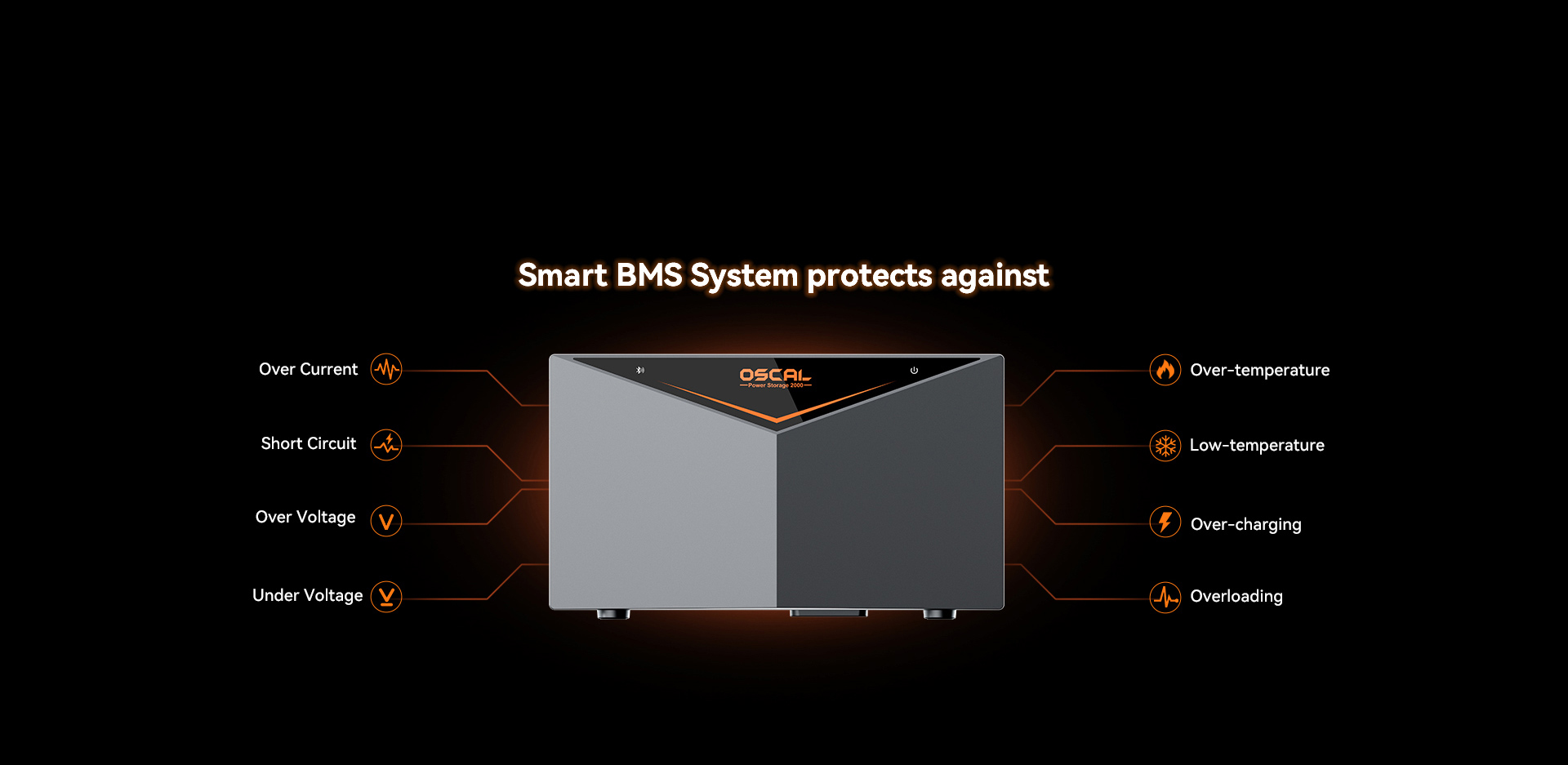

Intelligent BMS
8-Layer Safety Protection
Real-time monitoring of battery status, proactive risk warning for safe operation at all times. Comprehensive protection covers all critical scenarios, safeguarding battery safety and extending lifespan.
Smart BMS System protects against

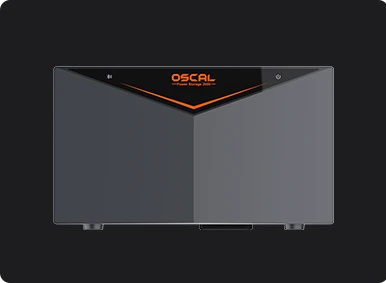

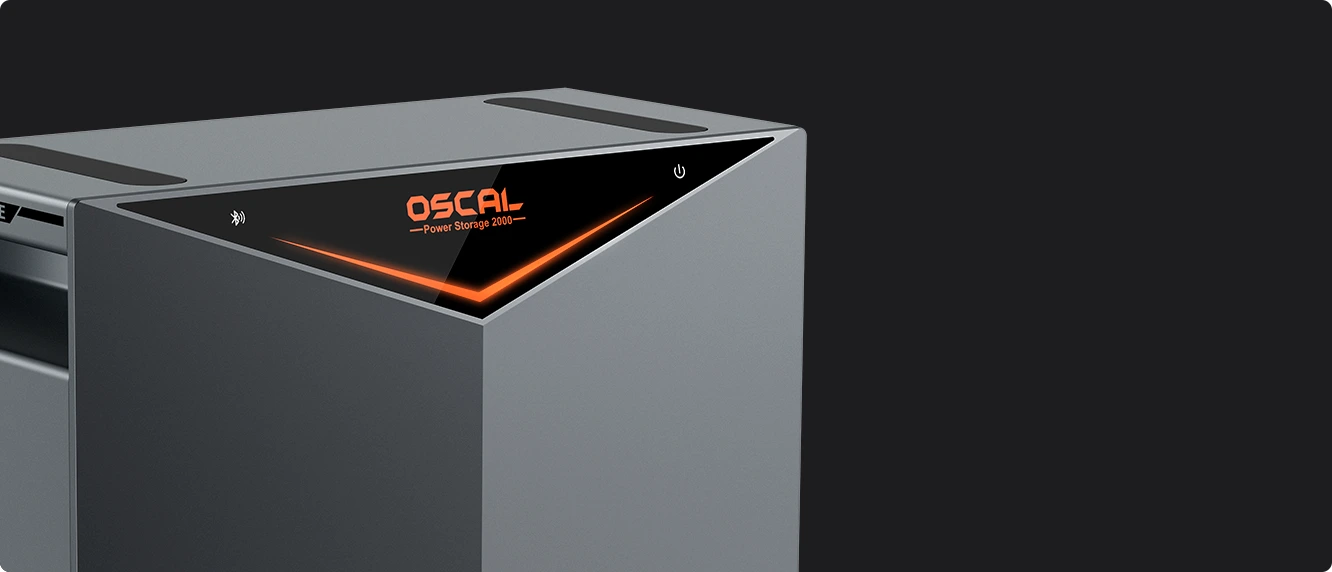

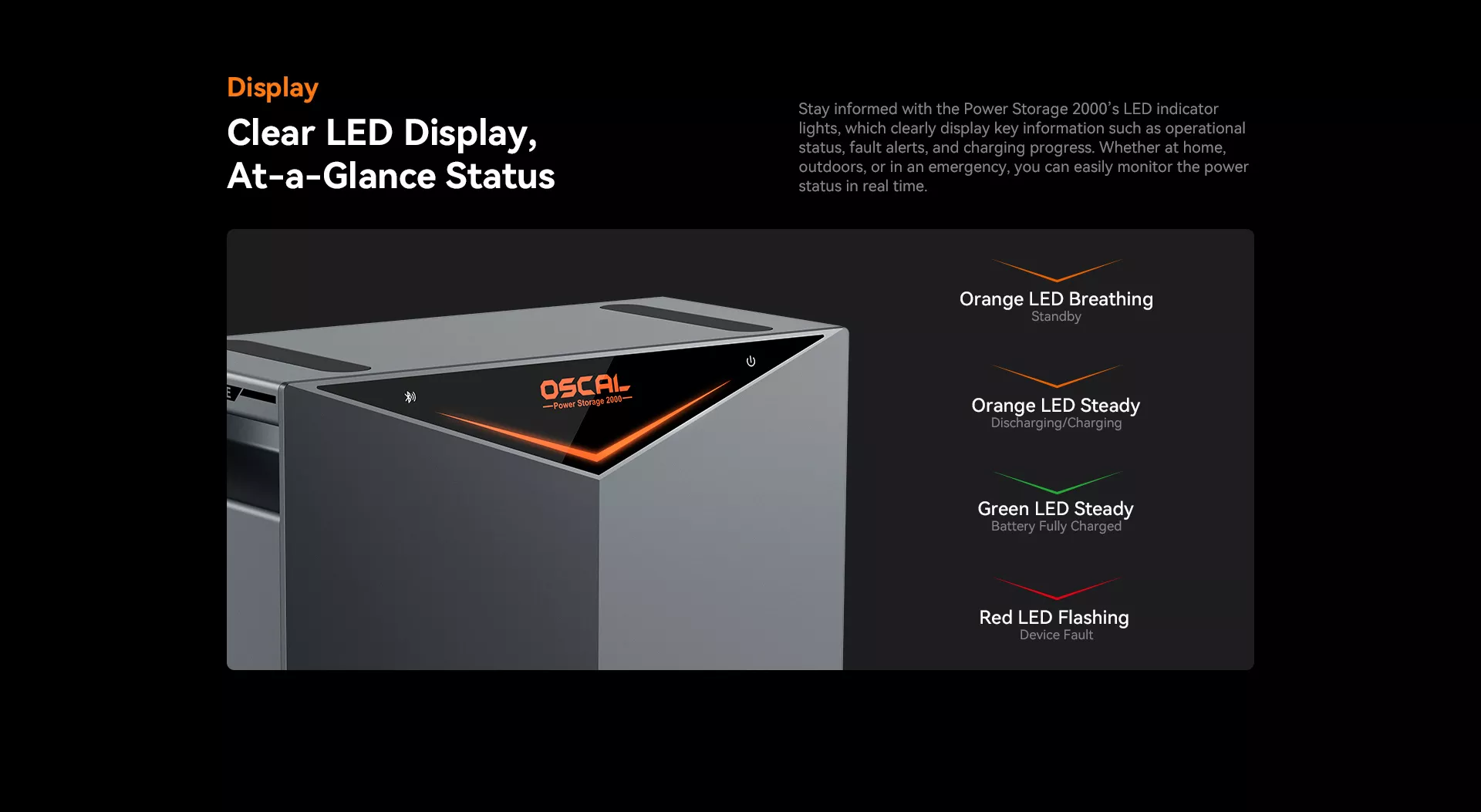

Display
Clear LED Display,
At-a-Glance Status
Stay informed with the Power Storage 2000’s LED indicator lights, which clearly display key information such as operational status, fault alerts, and charging progress. Whether at home, outdoors, or in an emergency, you can easily monitor the power status in real time.
Orange LED Breathing
Standby
Orange LED Steady
Discharging/Charging
Green LED Steady
Battery Fully Charged
Red LED Flashing
Device Fault
Built Tough, Powered to Last
Based on professional rugged technology, it covers high and low temperature resistance, flame retardant protection and efficient heat dissipation, adapting to various installation scenarios; smart app control empowers more efficient and convenient equipment management, adapting to diverse needs of the whole home.

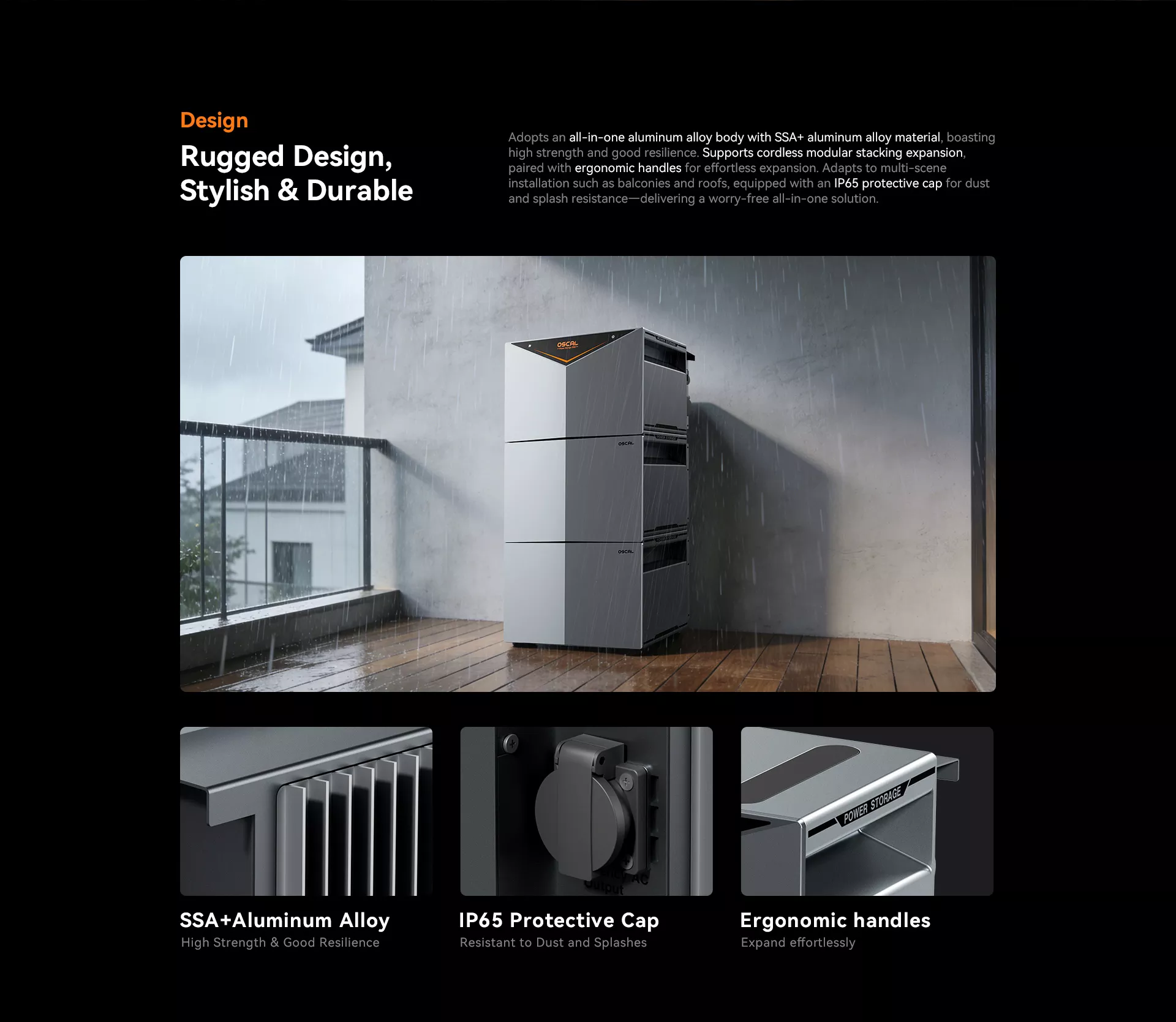

Design
Rugged Design,
Stylish & Durable

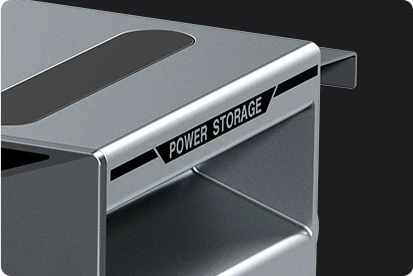

Adopts an all-in-one aluminum alloy body with SSA+ aluminum alloy material , boasting high strength and good resilience. Supports cordless modular stacking expansion , paired with ergonomic handles for effortless expansion. Adapts to multi-scene installation such as balconies and roofs, equipped with an IP65 protective cap for dust and splash resistance—delivering a worry-free all-in-one solution.
SSA+Aluminum Alloy
High Strength & Good Resilience

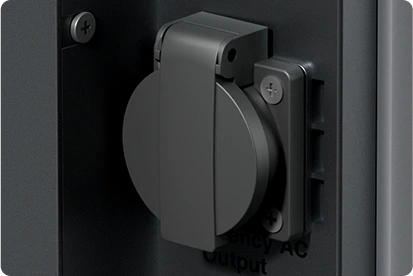

IP65 Protective Cap
Resistant to Dust and Splashes
Ergonomic handles
Expand effortlessly
*Installation locations are recommendations only. Please choose the best unit installation location according to your situation and in compliance with local regulations.

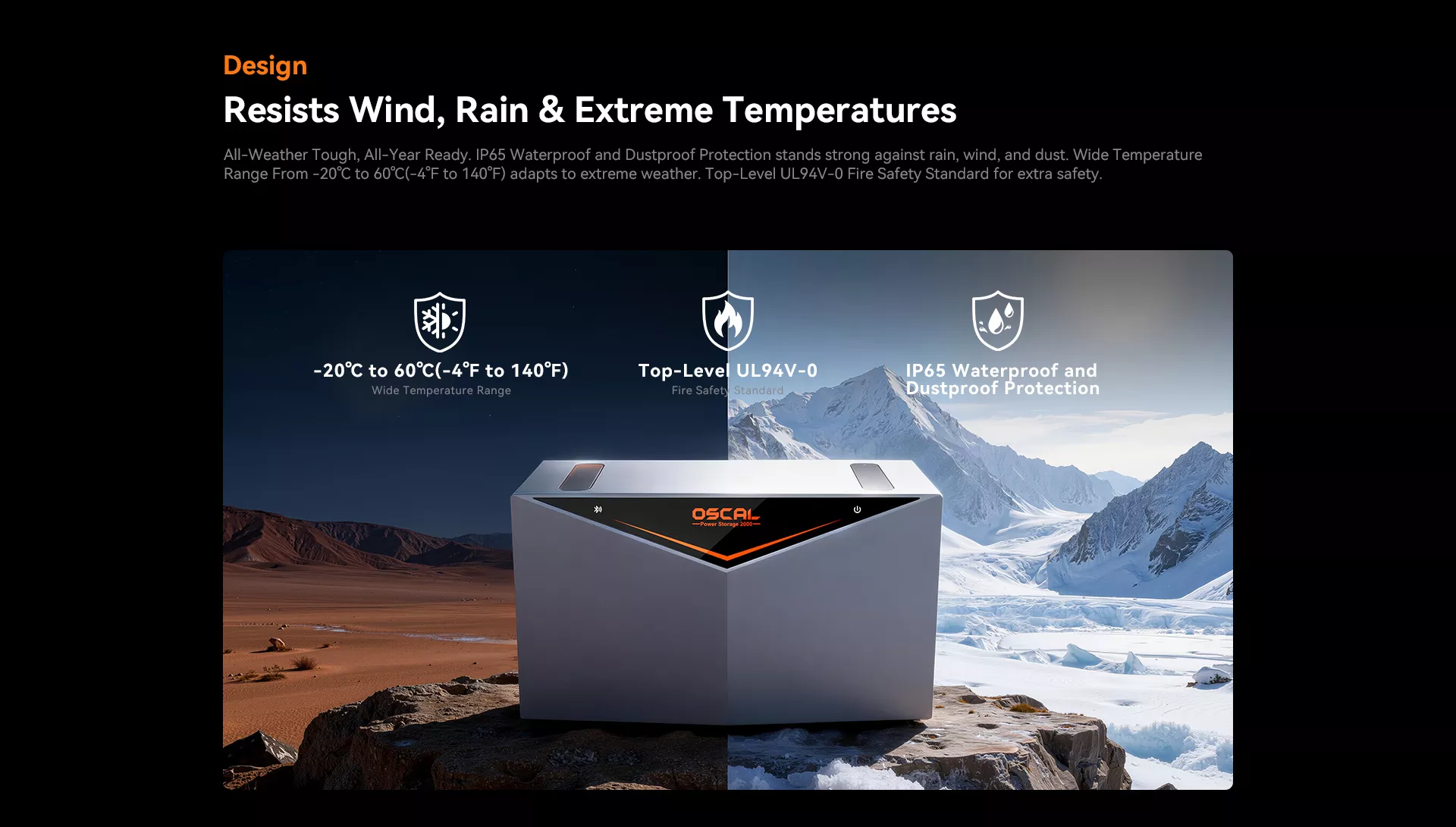

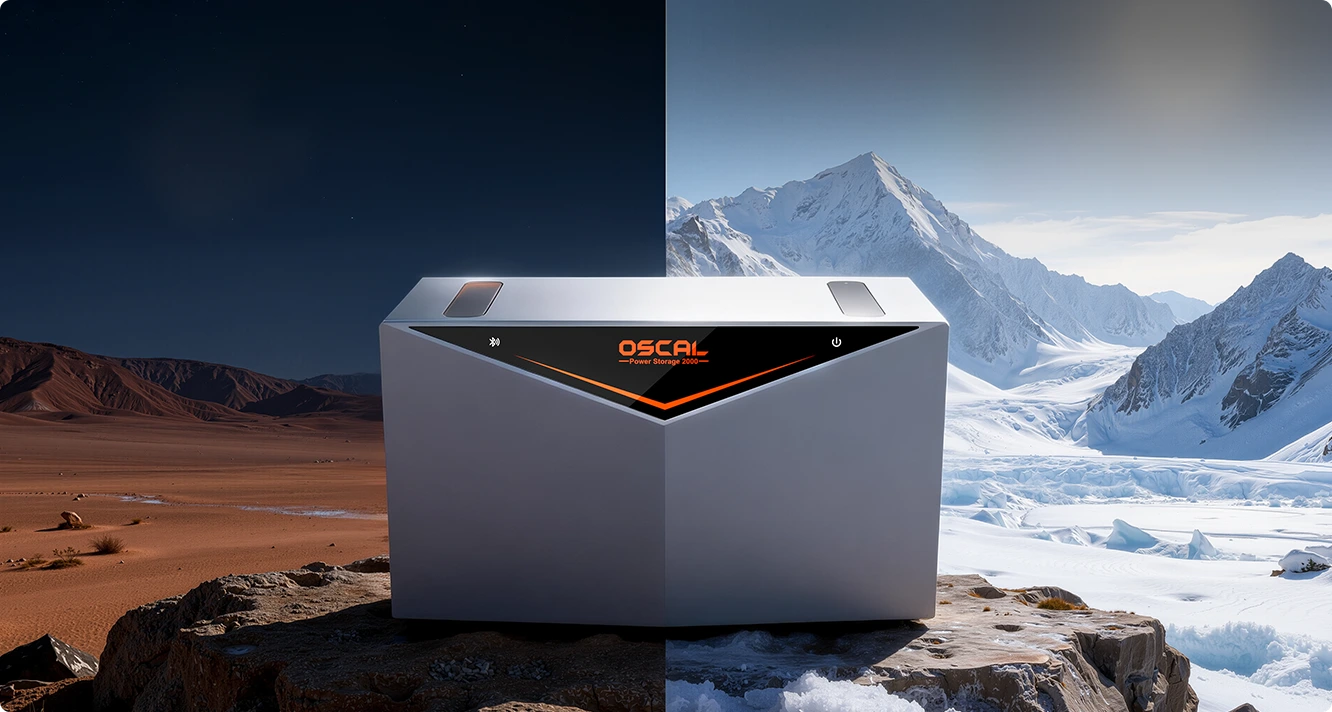

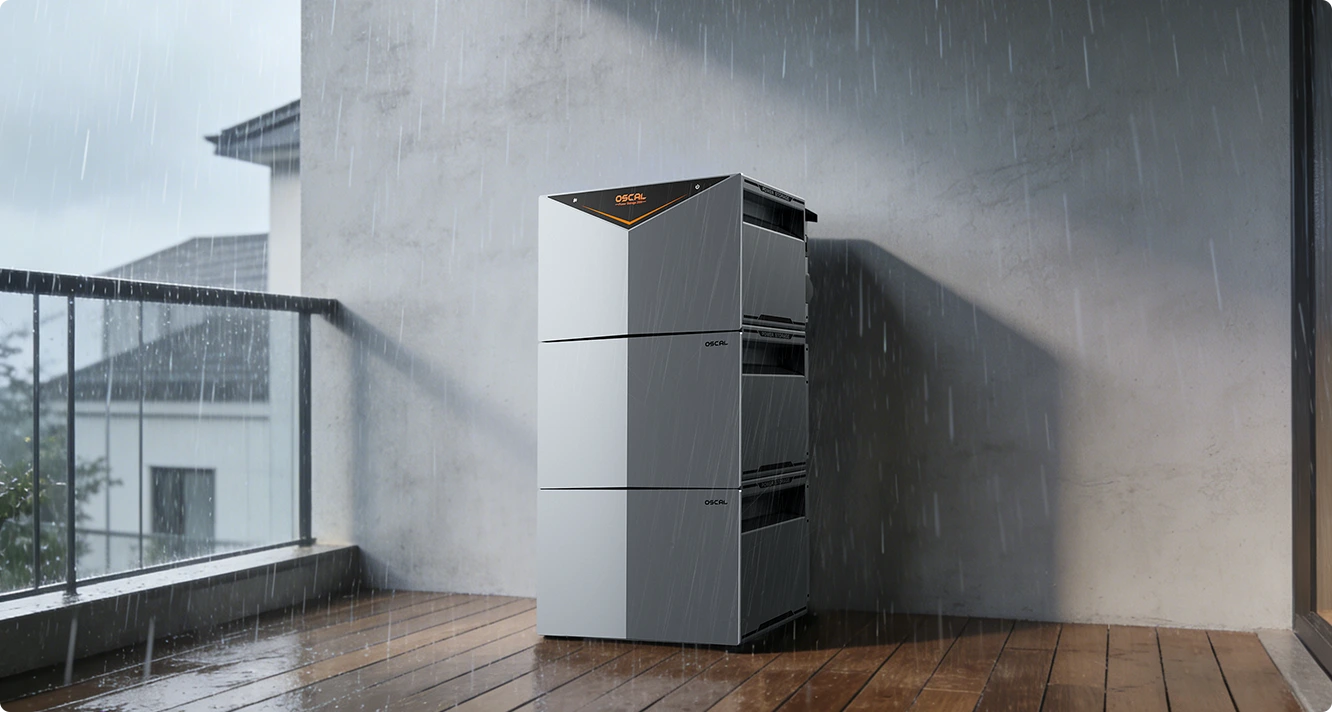

Design

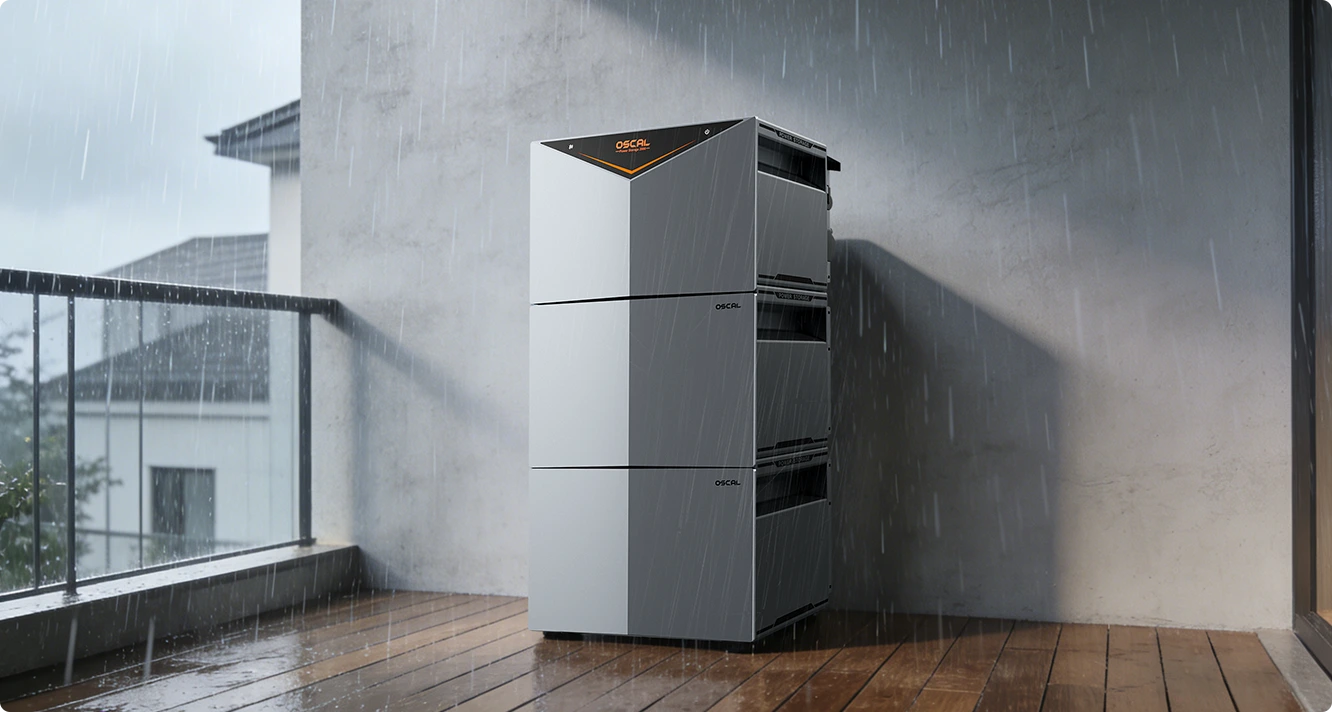

Resists Wind, Rain & Extreme Temperatures
All-Weather Tough, All-Year Ready. IP65 Waterproof and Dustproof Protection stands strong against rain, wind, and dust. Wide Temperature Range From -20℃ to 60℃(-4℉ to 140℉) adapts to extreme weather. Top-Level UL94V-0 Fire Safety Standard for extra safety.
-20℃ to 60℃(-4℉ to 140℉)
Wide Temperature Range
Top-Level UL94V-0
Fire Safety Standard
IP65 Waterproof and
Dustproof Protection

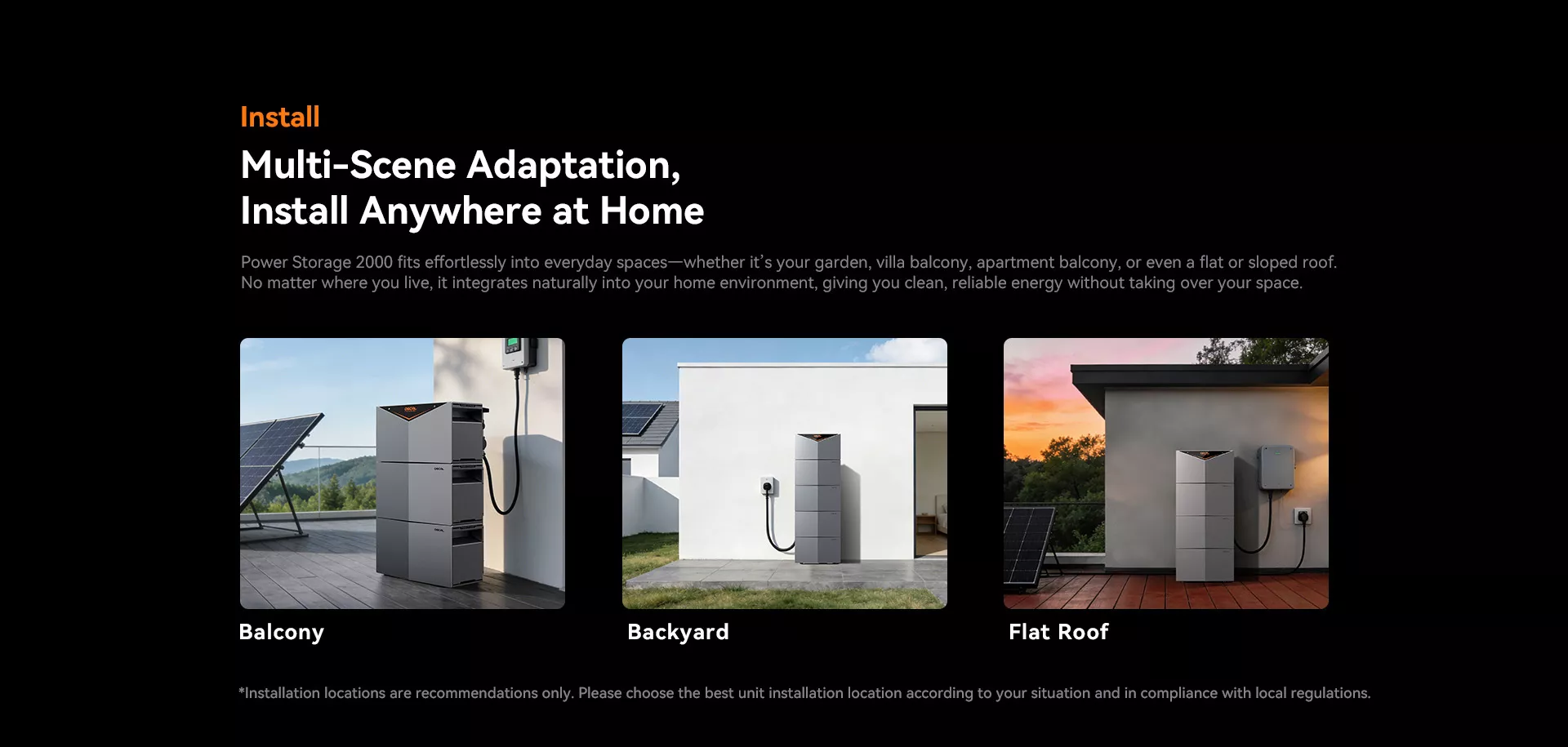

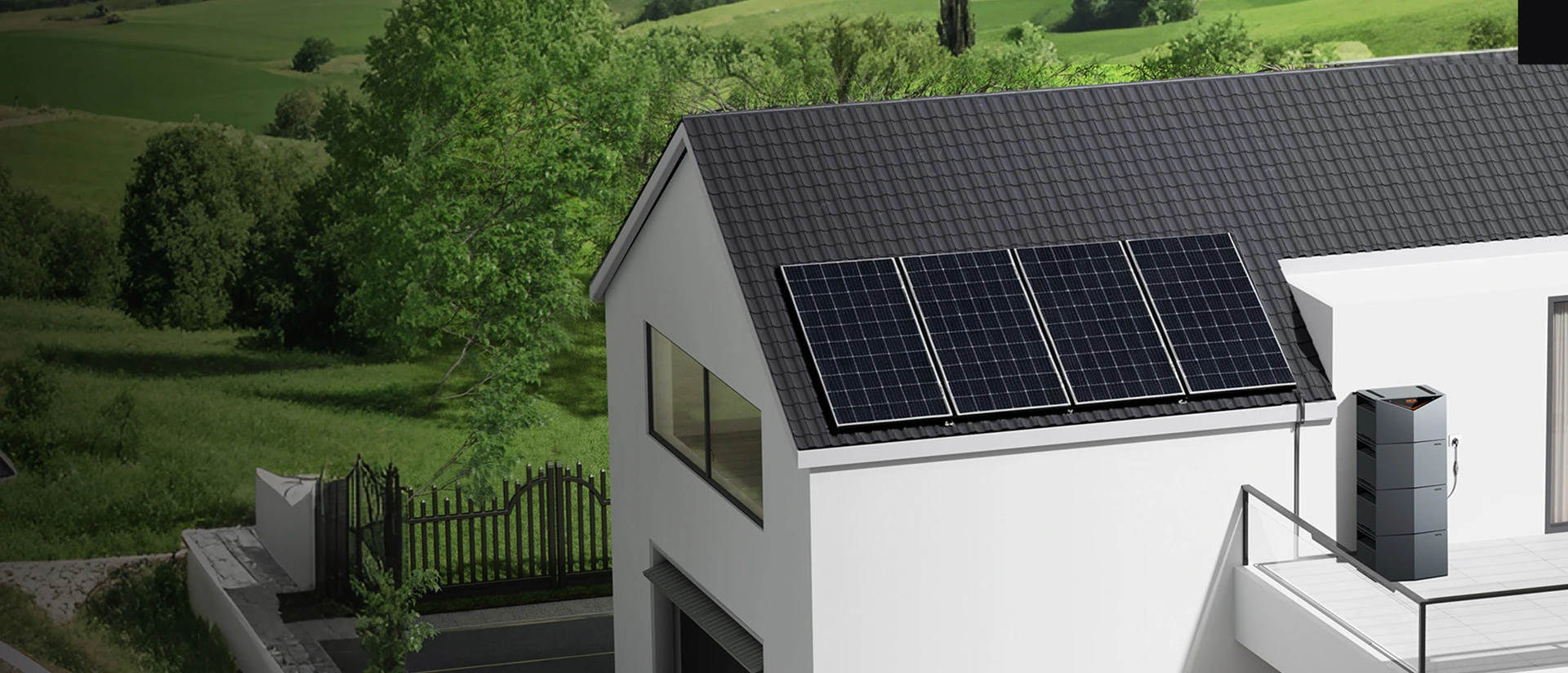

Install
Multi-Scene Adaptation,
Install Anywhere at Home

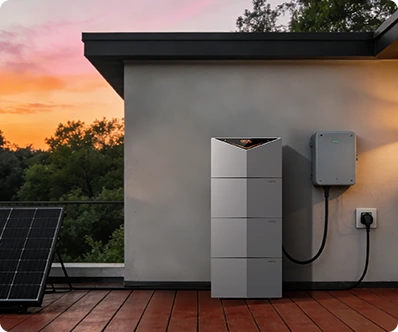

Power Storage 2000 fits effortlessly into everyday spaces—whether it’s your garden, villa balcony, apartment balcony, or even a flat or sloped roof. No matter where you live, it integrates naturally into your home environment, giving you clean, reliable energy without taking over your space.

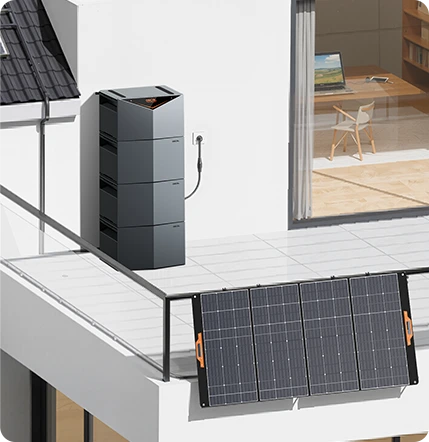

Balcony
Backyard

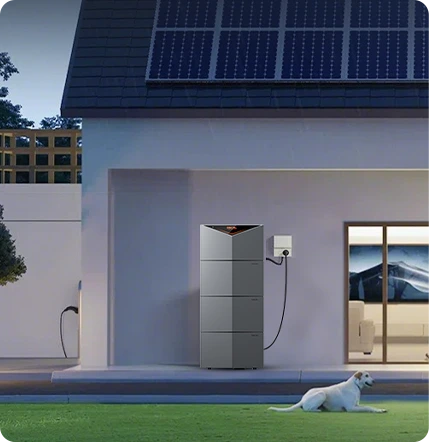

Flat Roof
*Installation locations are recommendations only. Please choose the best unit installation location according to your situation and in compliance with local regulations.

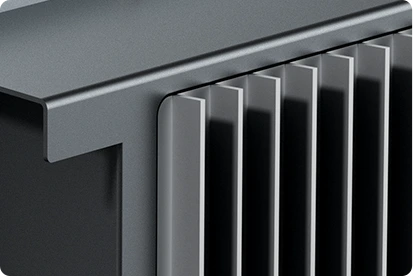

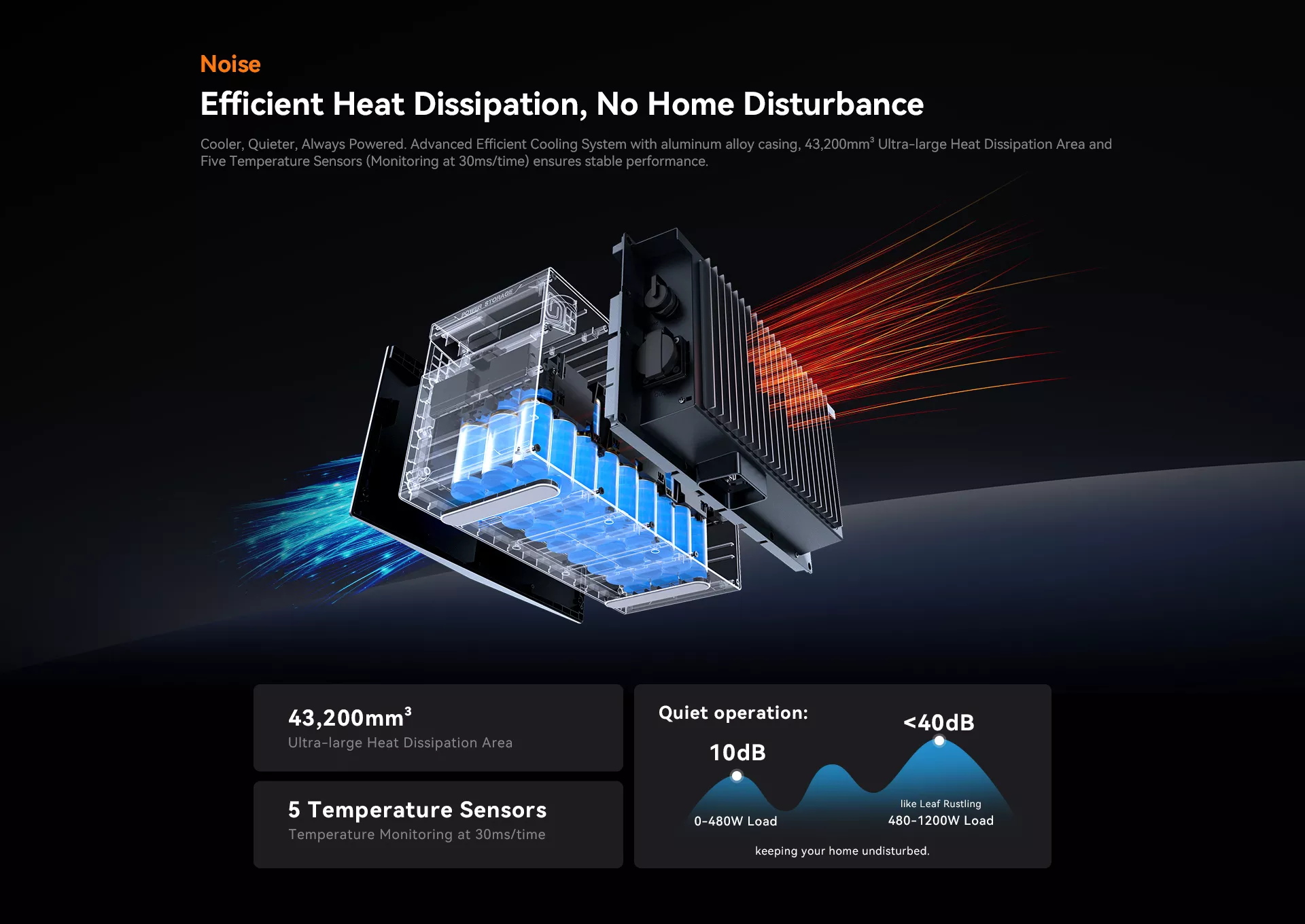

Noise
Efficient Heat Dissipation, No Home Disturbance

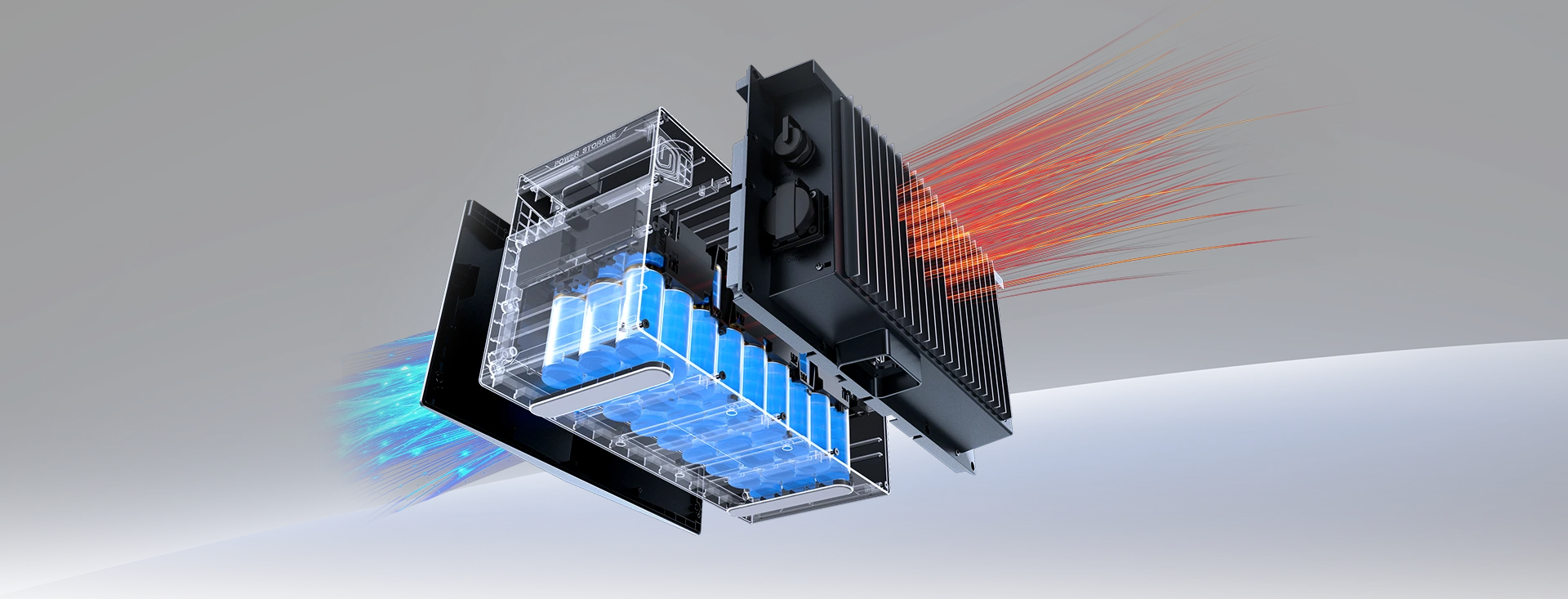

Cooler, Quieter, Always Powered. Advanced Efficient Cooling System with aluminum alloy casing, 43,200mm³ Ultra-large Heat Dissipation Area and Five Temperature Sensors (Monitoring at 30ms/time) ensures stable performance.
Control
Smart APP Control,
Unlimited Range
Connect, Control, Simplify. Smart APP via Wireless Bluetooth & WiFi. Monitors battery health, tracks real-time energy flow, and allows you to set schedules, power limits, and automation rules.
*Once you connect your phone to Power Storage 2000, you can control it without distance restrictions as long as WiFi is available.

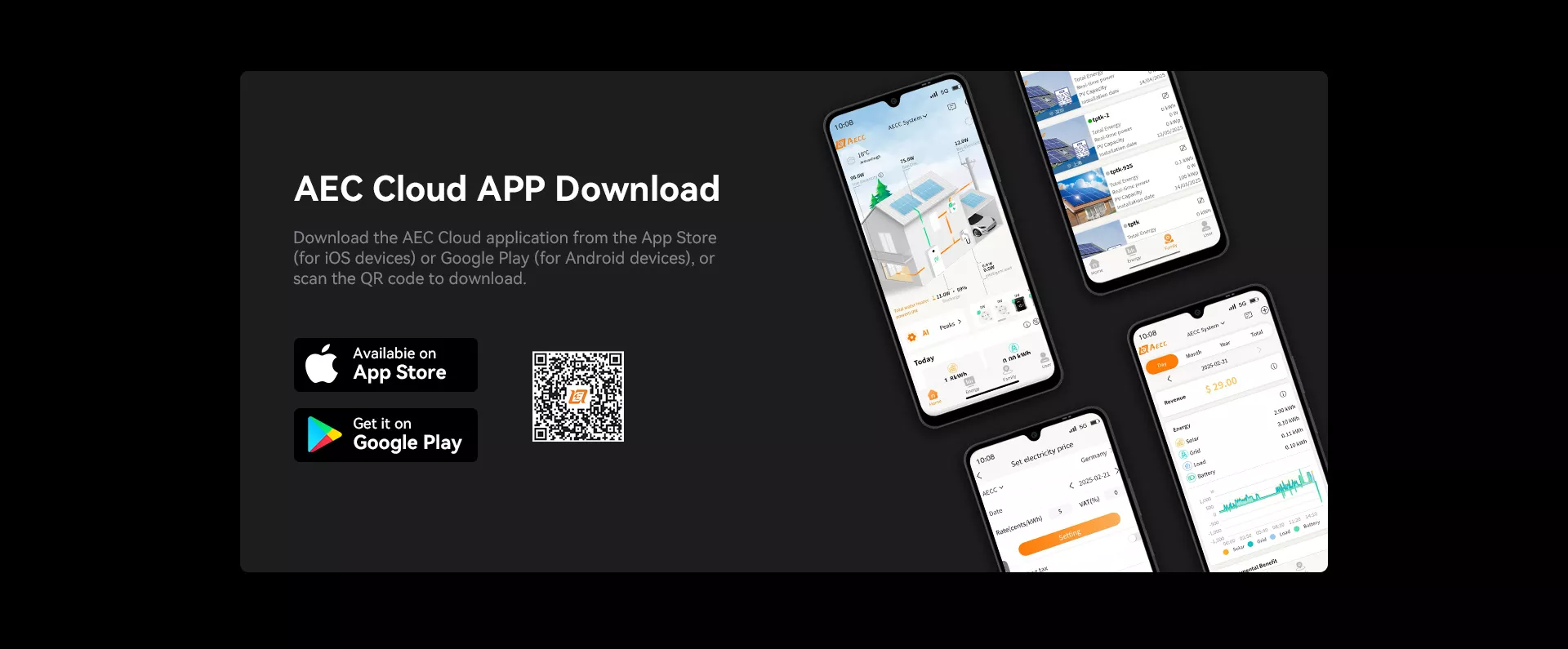

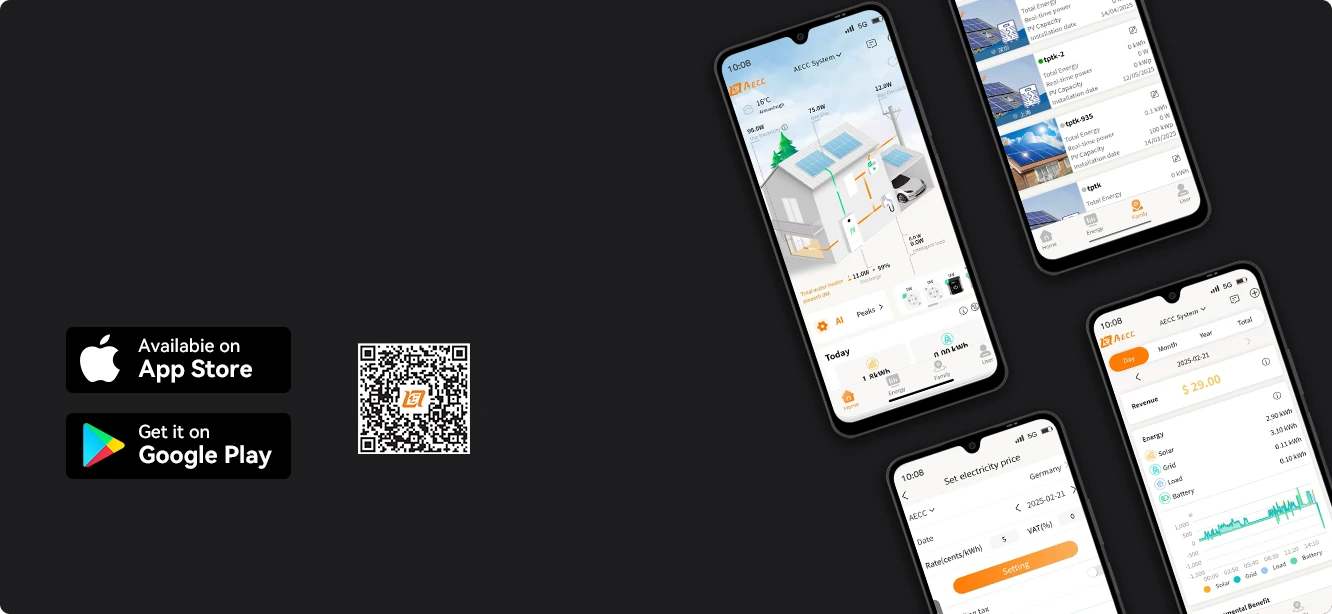

AEC Cloud APP Download
Download the AEC Cloud application from the App Store (for iOS devices) or Google Play (for Android devices), or scan the QR code to download.
Reliable Service
That Stays With You.
Backed by a 5-year warranty, local repair centers, professional hotline, and online-offline support anywhere anytime, the OSCAL Power Storage 2000 ensures lasting reliability—not just in use, but in service.

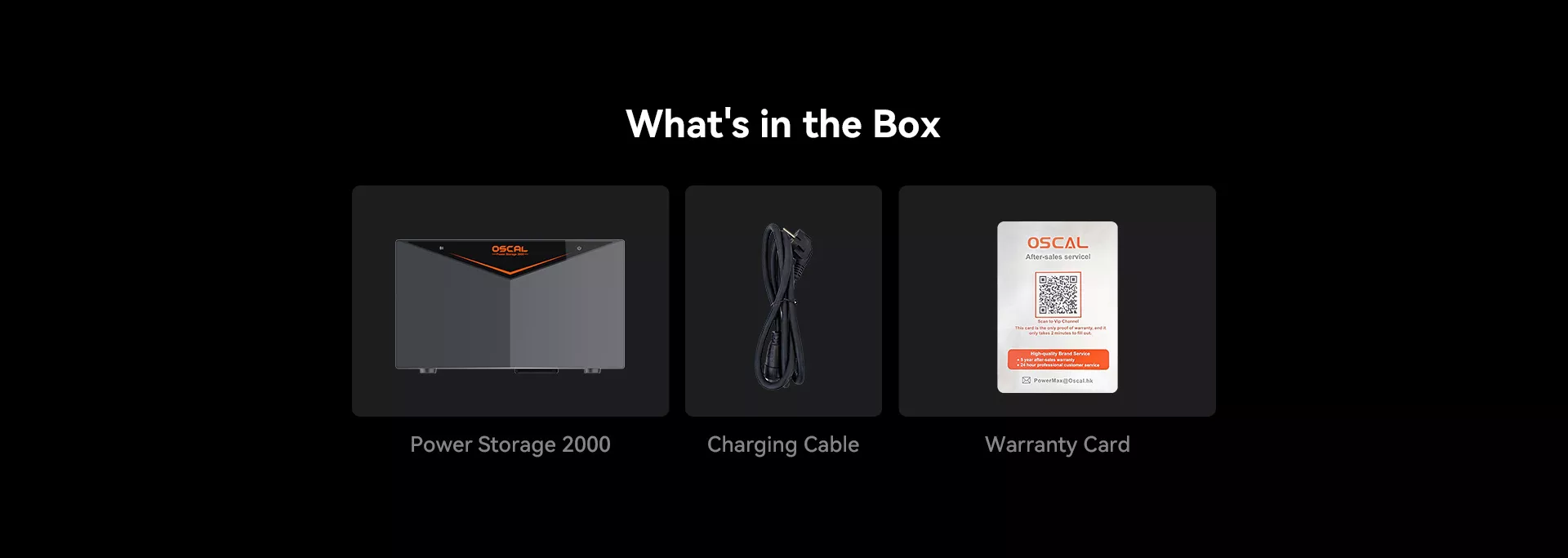

What's in the Box
Power Storage 2000
Charging Cable
Warranty Card
|
|
|

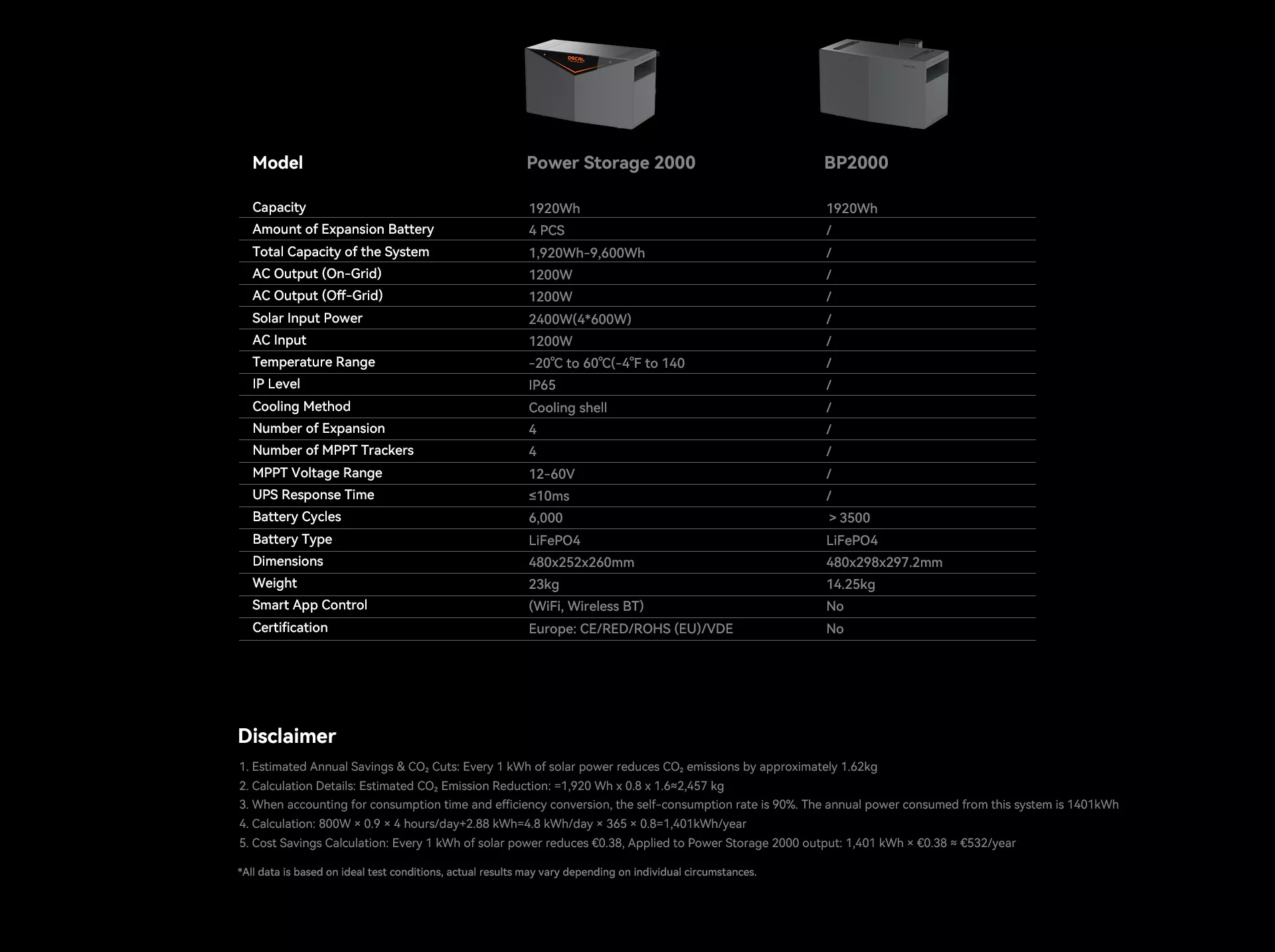

| Model | Power Storage 2000 | BP2000 |
| Capacity | 1920Wh | 1920Wh |
| Amount of Expansion Battery | 4 PCS | / |
| Total Capacity of the System | 1,920Wh - 9,600Wh | / |
| AC Output (On - Grid) | 1200W | / |
| AC Output (Off - Grid) | 1200W | / |
| Solar Input Power | 2400W(4 * 600W) | / |
| AC Input | 1200W | / |
| Temperature Range | -20℃ to 60℃(-4°F to 140) | / |
| IP Level | IP65 | / |
| Cooling Method | Cooling shell | / |
| Number of Expansion | 4 | / |
| Number of MPPT Trackers | 4 | / |
| MPPT Voltage Range | 12 - 60V | / |
| UPS Response Time | ≤10ms | / |
| Battery Cycles | 6,000 | ＞3500 |
| Battery Type | LiFePO4 | LiFePO4 |
| Dimensions | 480x252x260mm | 480x298x297.2mm |
| Weight | 23kg | 14.25kg |
| Smart App Control | (WIFI, Wireless BT) | No |
| Certification | Europe: CE/RED/ROHS(EU)/VDE | No |
