PowerMax 3600 SE
PowerMax 3600 SE
The Most Accessible Backup for Every Home 3600Wh Big Capacity | 3600W 14 Versatile Outlets | LiFePO4 Cells |
6 * LED Light Modes | Rugged Power Station *OSCAL PowerMax 3600 SE offers EU/US standards. This page displays the EU version.
3600Wh Big Capacity Up to 3 Days Power for Whole Home Back Up
3600W 14 Versatile Outlets Up to 99% of Essential Devices
-20℃~ 55℃ Adaptation North-South Universal
8 Charging Modes Fuel Up to 80% in Just 0.96hrs
Smart APP Control Via WiFi or BlueTooth
Rugged Power Station
0.8M Vertically
Drop-Proof Splash-Proof Dust-Proof Anti-UV &
UL94V-0 Rated Fire-Retardant
24/7 UPS Backup 5-8ms Fast Switch
6 LED Modes: Lighting & Distress Dim Mode, Bright Mode, Flashing Mode, Breathing
Light Mode, SOS Mode, Morse Code
Portable Handle &
Wheel Design Yet Easy on Any Move
LiFePO4 Battery
Ease Shortages, Save Bills
Get True Grid-Independence
Indoor or Outdoor
OSCAL PowerMax 3600 SE is compatible with 99% of home appliances, featuring 3600Wh large capacity, 3600W high power output, 14 Versatile Outlets and 2-3 days of battery life . It effortlessly meets the whole family's electricity needs both indoors including refrigerator preservation and home office, and outdoors like outdoor barbecues or camping trips during power outages.
Portable energy for your
camping or glamping.
Consistent power solutions in
professional creative work.
Reliable home backup power during
unexpected power outages.
Capacity
Massive 3600Wh Capacity for
Confident Whole‑Home Backup With a 3600Wh large capacity, calculated based on a family's average daily energy consumption of 1.2-1.8kWh, it can supply power continuously for 2-3 days, covering all needs of short-term power outages. No need to worry about food spoilage, interruption of home office, or shutdown of elderly people's ventilators.
3.6kWh
Up to 2–3 days of essential home power (lighting, Wi‑Fi, phone/laptop) Powers a 100 W TV for about 12–18 hours Runs LED lighting (50 W) for about 24–36 hours
*Calculated by 1 kWh/day on average
Output 3600W Rated Power,
Power 99% of Appliances Rest assured that whatever you plug into the PowerMax 3600 SE will operate at its optimal capacity with its 3600W pure sine wave output, capable of handling power surges from pro tools in off-grid life like power drills and cutting machines to home life essentials such as microwaves, refrigerators, and air conditioner.
If on a particular Saturday, the city's
grid goes down for the entire day, what can your
Perfect Day be with Oscal PowerMax 3600 SE?
Breakfast 0.25H* 800W Toaster
Coffee 0.1H *800W Coffee Maker
Lawn Maintenance 1 H* 800W Corded String Trimmer
Fishing 3H* 180W Portable Fridge
Lunch Break 1 H*5000mAh Phone Charging
Lunch 0.5H* 1000W Electric Skillet
Barbecue 1 H*1000W Electric Grill
Outdoor Movie 2H*65W Projector
Campfire Chat 2H*50W Portable Speaker
Stargazing 7H * 30W Camping Lantern
Outlets

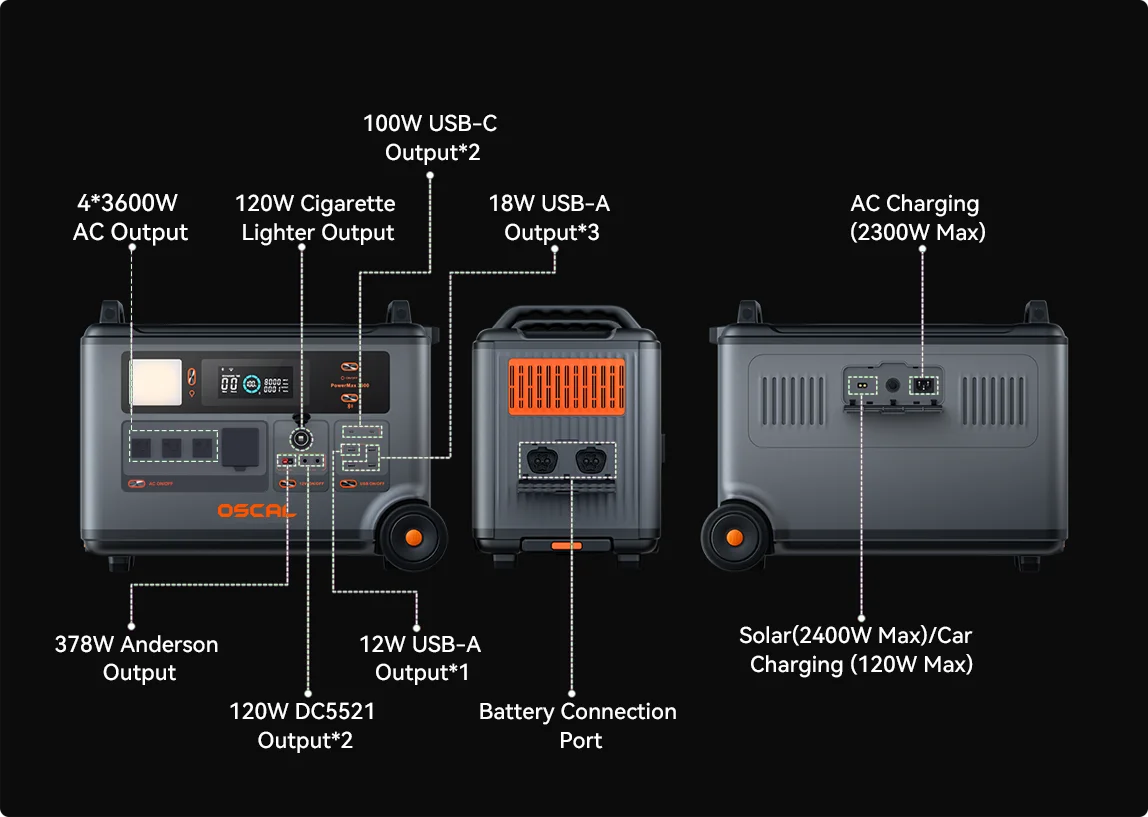

14 Versatile Outlets, Universal for All Home 3600W pure sine wave output, combined with 14 multi-type outlets (4*3600W AC, 2*100W USB-C, 4*USB-A, etc.), can drive multiple devices such as refrigerators, microwaves, computers, and mobile phones at the same time, compatible with 99% of commonly used home appliances, no need to compete for electricity.
EU Standard US Standard
5-8 ms Fast Switch
24/7 Uninterrupted Power Station When the home power source fails, the Oscal PowerMax 3600 SE will swiftly switch to work as the backup battery in 5-8 ms, so you hardly notice the slight flickering of the lights, delivering constant power to protect your computer from data loss and maintaining the uninterrupted operation of your fish tank, refrigerator, CPAP, and other essentials.
Switch Time:
50% Faster than Others 5-8 ms
PowerMax 3600SE UPS 20ms
AC300 UPS

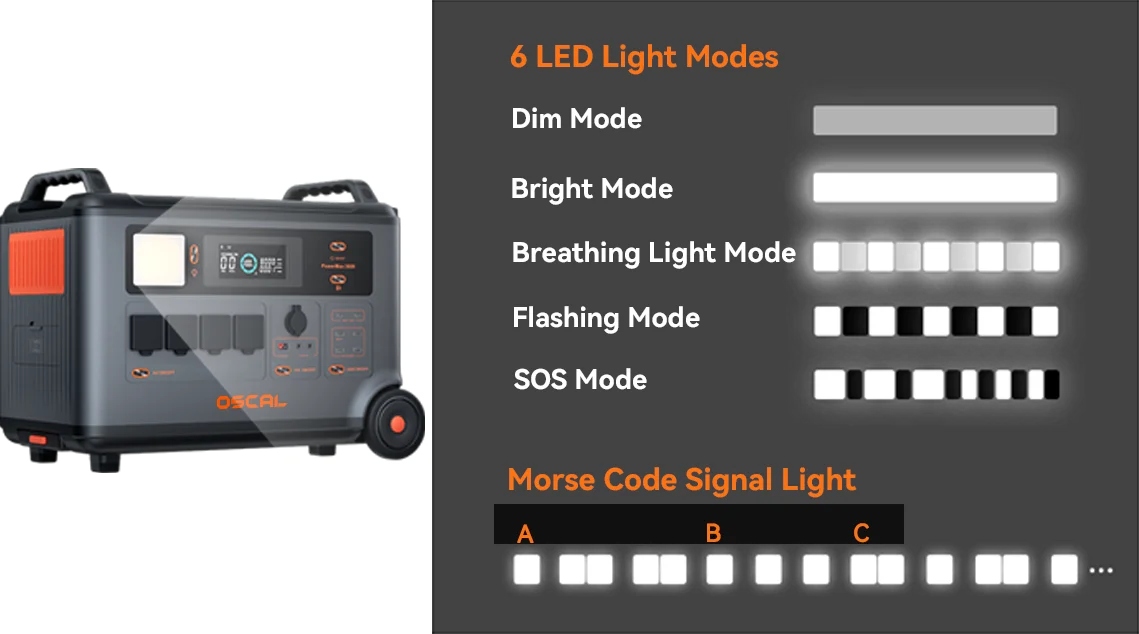

6 LED Light Modes
More Than Light, A Signal of Safety It covers 6 modes: dim, bright, flashing, breathing light, SOS, and Morse code. It can be used as emergency lighting in living rooms and bedrooms during power outages, with adjustable brightness to adapt to different scenarios; in sudden emergencies, SOS and Morse code modes can quickly send distress signals, balancing practicality and safety.
Home lighting during power outage Use lantern language to ask for help
when you are lost in the wild
Design Wheels Up, Go Anywhere
Integrated portable handle design , moderate weight for easy movement, can be easily placed in indoor areas such as living rooms and balconies, and can also be carried to outdoor camping , courtyard barbecue and other scenarios. Combined with the function of independent power supply off the grid indoors and outdoors, there are no restrictions on use scenarios.
Charging <1hrs Fast Charging, No More Waiting
Adopting high-efficiency fast charging technology, under AC + solar dual charging mode, PowerMax 3600 SE can be charged to 80% in 0.96 hours . The charging speed is 6 times faster than similar products, no need for long waiting. It can restore the full-load power supply capacity of the device in a short time, and respond more calmly to sudden power outages.
Charging 8 Charging Ways, Full-Scene Fit It fully covers various charging needs of the family, supporting 8 methods such as AC charging, solar charging, vehicle-mounted charging, and generator charging. Whether it is daily wall charging in the living room and study, eco-friendly solar charging on the balcony and terrace, or vehicle-mounted emergency charging after self-driving, it can be easily satisfied, with no dead ends in charging.
AC+Solar Dual Charging Max 3600W only 1.2 Hrs
AC Charging Max 2300W only 1.96 Hrs
Lead-acid Battery Charging Max 120W only 15 Hrs
EV Charging Station Max 2300W only 1.96 Hrs
Gas Generator Charging Max 2300W only 1.96 Hrs
12V/10A Car Charging Max 120W only 30 Hrs
Wind Turbines Charging Max 2300W 1.96 Hrs
Water Turbine Charging Max 2300W 1.96 Hrs
* This is laboratory-tested data; actual results may vary.
LiFePO4 battery 25-Year Long Life, Long-Term Benefit EV-grade LiFePO4 battery ensures ultra-high stability and durability, with a far longer cycle life than traditional NCM/NCA batteries. It supports stable home use for 25 years (once every other day), delivering better long-term cost-effectiveness.
Lifespan Circles: Up to 5 Times More Durable Than Others
Intelligent BMS 8-Layer Safety Protection
Built-in intelligent Battery Management System (BMS) monitors battery status in real time, providing 8-layer all-round protection . It eliminates various safety hazards, ensuring safety for families with elderly and children.
Over Current
Protection
Short Circuit
Protection
Over Voltage
Protection
Under Voltage
Protection
Over-temperature
Protection
Low-temperature
Protection
Over-charging
Protection
Overloading
Protection

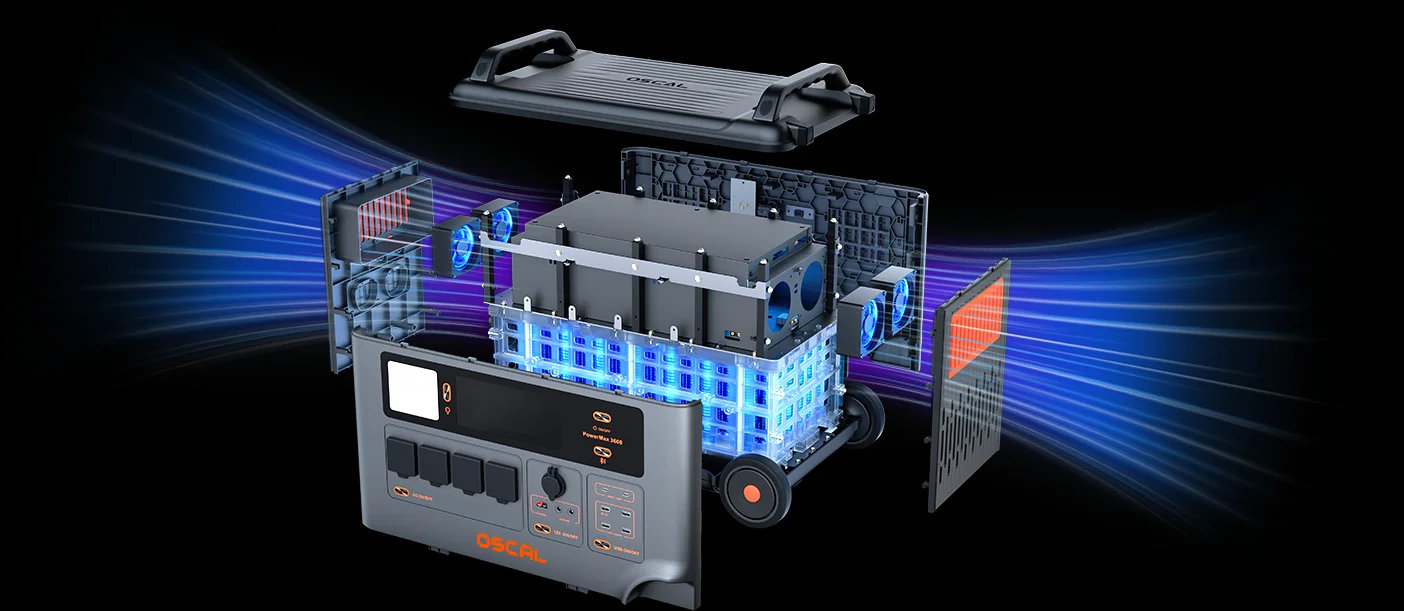

Temperature Cooling System -20℃~ 55℃ Adaptation,
North-South Universal
Be it the exploration of Alaska's glaciers or the vast Sahara deserts, Oscal PowerMax 3600 SE remains unaffected by the most extreme temperatures from -20~55°C（-4~131°F） *. Equipped with a 45℃ constant temperature cooling system , it avoids high-temperature performance impact.
Four temperature sensors Temperature monitoring at 100ms/time.
Four 38mm large smart
temperature-activated fans
Reduce the temperature by 40℃
Works Steadily in in Cold or Hot Weather
Temperature Resistance: Up to 10°C Higher/Lower than Others
-20~55°C (-4~131°F) PowerMax 3600W Operating Temperature
-10°C ~ 45°C DELTA Pro Operating Temperature
*Best under conditions from -10°C~45°C（14~113°F）
*The high-temperature warning will be triggered at 55°C.
*The high-temperature overload protection will be activated at 58°C.
Safety Flame-Retardant & 3-Proof，
Safety Upgrade
The shell is made of UL94V-0 grade flame-retardant material , which is not easy to burn when exposed to fire, further improving the safety performance of the device. Combined with 0.8m drop-proof, splash-proof and dust-proof design , it adapts to complex home use environments and has stronger durability.
0.8M Vertically Drop-Proof Design Forged to match the harsh terrain of your expeditions, the PowerMax 3600 SE is meticulously crafted to withstand vertical falls from heights of up to 0.8 meters, alleviating concerns of unintended drops from your grasp while detaching it from the car or stairs.
Splash-Proof & Dust-Proof Body From lakesides in the dewy morning to dusty desert at dusk, you can take it anywhere without worries – it effortlessly shields against vertical water droplets and certain solid particles from entering the enclosure.
Anti-UV&UL94V-0 Rated
Fire-Retardant Case Whether it’s in the midst of yard trimming or desert exploration, the PowerMax 3600 SE's Anti-UV feature protects it from fading and aging brought on by prolonged sun exposure, and its UL94V-0 flame-retardant case ensures that there is no risk of fires resulting from heat generation.
Control All in the Palm of Your Hands Use Bluetooth or WiFi to access the PowerMax 3600 SE's smart app for remote settings to check the status and manage your power consumption. Also, the large buttons let you maintain complete control of the gadget, and the easy-to-read LCD screen makes it straightforward to access all the information at a glance.
Smart APP Control
On-Unit Control
Noise
Low Noise, No Disturbance
Adopting silent heat dissipation technology, when the device works at full load, the noise within 1.5 meters is only 62dB , equivalent to the volume of daily conversation between people, much lower than traditional gasoline generators (100dB+). Placed in the living room or balcony, it will not interfere with the family's rest, study or work, creating a quiet and comfortable home environment.
Eco-friendly Eco-Material, Zero Pollution
Reliable Service Eco-Material, Zero Pollution Backed by a 5-year warranty, local repair centers, professional hotline, and online-offline support anywhere anytime, the OSCAL ensures lasting reliability—not just in use, but in service.
OSCAL App-Smart Life Control and monitor your OSCAL energy storage, and access real-time energy usage from one convenient app.
What's In The Box
Oscal PowerMax 3600 SE
User Manual+Warranty Card
Solar Charging Cable
AC Charging Cable
Car Charging Cable
PowerMax 3600 SE Dimension

Length: 590 mm

Width: 350 mm

Height: 441 mm

Weight: 44.45 Kg

OSCAL PowerMax 3600 SE Specifications
BATTERY OUTPUT OUTPUT GENERAL
Battery Capacity 3600 Wh
Battery Type LFP (LiFePO4 battery)
Battery Life Cycles 3500+ Cycles to 80% of Original Capacity
3600W (Max)
AC Output Inverter Type: Pure Sine Wave
Surge Power:4500W
USB-C Port USB-C 100W X2
USB-A Port USB-A 12W X1
USB-A 18W X3
DC Output Anderson 378W X1
DC 5521 120W X2
Cigarette Lighter Port Cigarette Lighter 120W X1
AC Adapter Input 2300W (Max)
Recharging times: 1.96H
Solar Input 2400 W (Max)
Recharging times:2.25H
(With prime sunshine, ideal orientation,
and low temperature)
Car Input 120 W (Max)
Recharging times: 30H
Dual Charging -AC Charging+DC-Solar Charging
1.2 H

-AC Charging+DC-Car Charging
1.86H

Weight 98.10 lbs（44.45 kgs）
Dimensions (LxWxD) L590*W350*H441 mm
Charging Temperature 0℃~50℃ (32°F~122°F)
Best under condition from
0℃ to 45℃. (32°F~113°F)
Discharging Temperature -20℃ ~55℃ (-4°F~131°F)
Best under conditions from
-10℃ to 45℃. (14°F~113°F)
Storage Temperature -10℃ ~45℃ （14°F~113°F）
App Control Yes, via WiFi and Bluetooth
Certification Europe: CE/RED/ROHS (EU)
Japan: PSE/METI/IEC
America: FCC /DOE/CEC/FCC/UL
South Africa: IEC62368
Warranty 5 Years
In the Box 1xOscal PowerMax 3600
1x User Manua+Warranty Card
1*AC Charging Cable
1*Car Charging Cable
1*Solar Charging Cable
*All data is based on ideal test conditions, actual results may vary depending on individual circumstances.

  • Black

BATTERY Battery Capacity 3600 Wh
Battery Type LFP (LiFePO4 battery)
Battery Life Cycles 3500+ Cycles to 80% of Original Capacity
OUTPUT AC Output
3600W (Max)
Inverter Type: Pure Sine Wave
Surge Power:4500W
USB-C Port USB-C 100W X2
USB-A Port USB-A 12W X1
USB-A 18W X3
DC Output Anderson 378W X1
DC 5521 120W X2
Cigarette Lighter Port Cigarette Lighter 120W X1
OUTPUT AC Adapter Input 2300W (Max)
Recharging times: 1.96H
Solar Input 2400 W (Max)
Recharging times:2.25H
(With prime sunshine, ideal orientation,
and low temperature)
Car Input 120 W (Max)
Recharging times: 30H
Dual Charging -AC Charging+DC-Solar Charging 1.2 H
-AC Charging+DC-Car Charging 1.86H
GENERAL Weight 98.10 lbs（44.45 kgs）
Dimensions (LxWxD) L590*W350*H441 mm
Charging Temperature 0℃~50℃ (32°F~122°F)
Best under condition from
0℃ to 45℃. (32°F~113°F)
Discharging Temperature -20℃ ~55℃ (-4°F~131°F)
Best under conditions from
-10℃ to 45℃. (14°F~113°F)
Storage Temperature -10℃ ~45℃ （14°F~113°F）
App Control Yes, via WiFi and Bluetooth
Certification Europe: CE/RED/ROHS (EU)
Japan: PSE/METI/IEC
America: FCC /DOE/CEC/FCC/UL
South Africa: IEC62368
Warranty 5 Years
In the Box 1xOscal PowerMax 3600
1x User Manua+Warranty Card
1*AC Charging Cable
1*Car Charging Cable
1*Solar Charging Cable
